C. THE HELMET

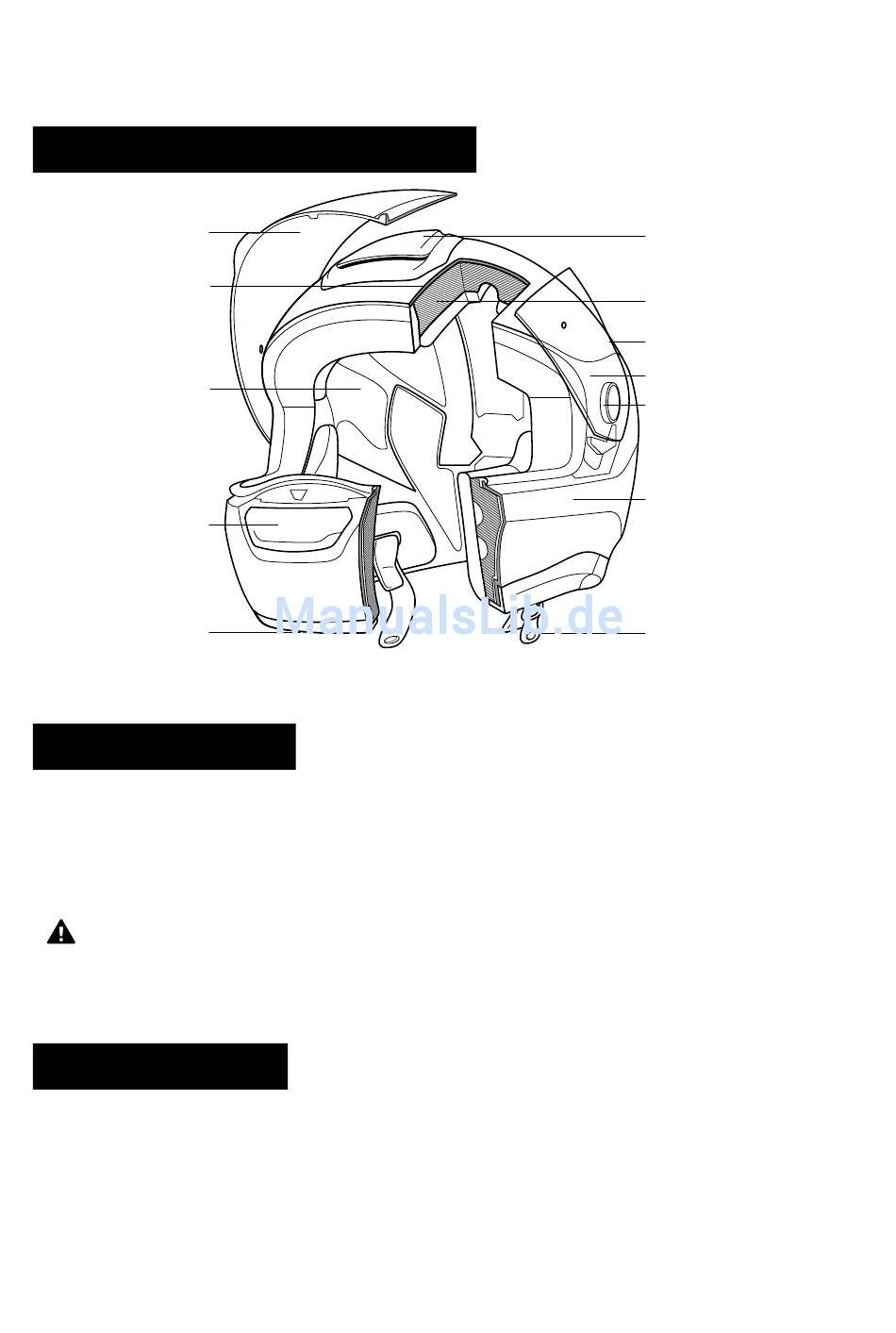

3. ANATOMY OF THE HELMET
Face shield
Integrated
antennas
Inner lining
Face shield
ventilation/
Chin ventilation
Chin bar release

4. OUTER SHELL

The outer shell of the R2 helmet combines an aerodynamically optimal shape
with consistent protection. It consists of a special glass-fibre reinforced special
duroplastic matrix developed by SCHUBERTH, which gives the helmet the high
level of strength needed for your protection.
Caution:
The safety helmet is designed to absorb the effects of only one impact.
The helmet must be replaced after a fall, accident or any other impact.

5. INNER SHELL

For optimised impact absorption properties, the inner shell of the helmet
consists of several components. The complex multi-segment foam padding of
the main body provides better absorption and dissipation of impact forces and
gives you the highest level of safety.
42
Head ventilation
Inner shell
Head outlet vent
Anti-fog lens
Visor mechanicsk
Outer shell
Chinstrap
(with double-D-
fastening)
