3. Form a loop with the extension cord and
pass it through the opening in the
handle. Hook the extension cord on the
cable run (9).

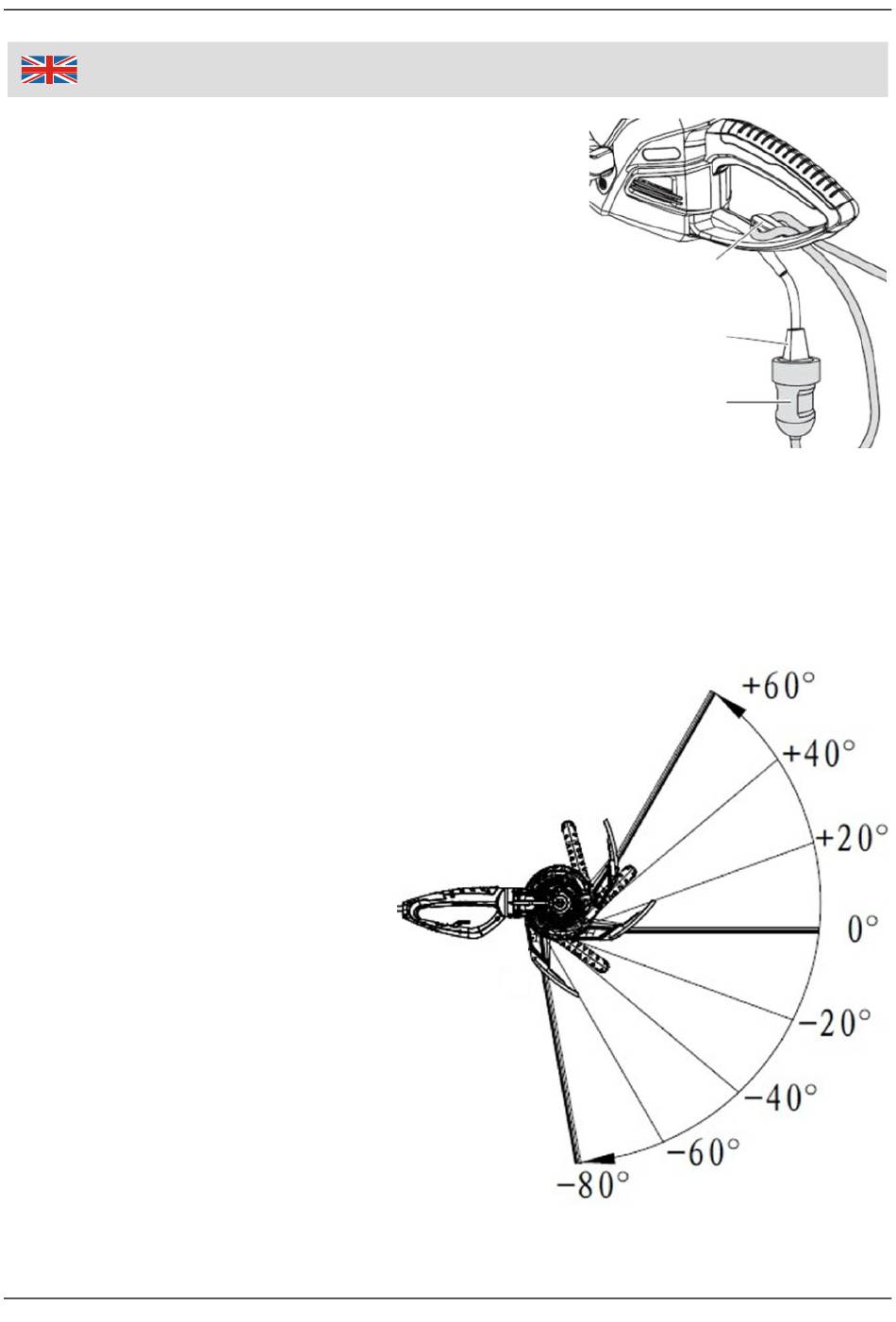

Adjusting the Wording Position
1. Press the release button PUSH (8) in order to adjust the angle setting of the
motor housing. Hold the button pressed and move the motor housing by
turning the handle (4) up or downwards.
2. Release the PUSH button in
order to fix the desired angle
setting. The motor housing is
vertically pivotable up to 8
positions, from 0° up to +60°
resp. up to -80° (see draw-
ings).
3. The motor housing is also
rotatable up to 3 positions. It
can be turned from 0° up to
-90° resp. up to +90°. In order
to horizontally turn the motor
housing, either turn it to the
left or to the right until the
housing locks audibly.
Please note that operating the
hedge trimmer without locked
motor housing is not possible.
Operation
16
Cable Run
Power Cord
Extension Cord
