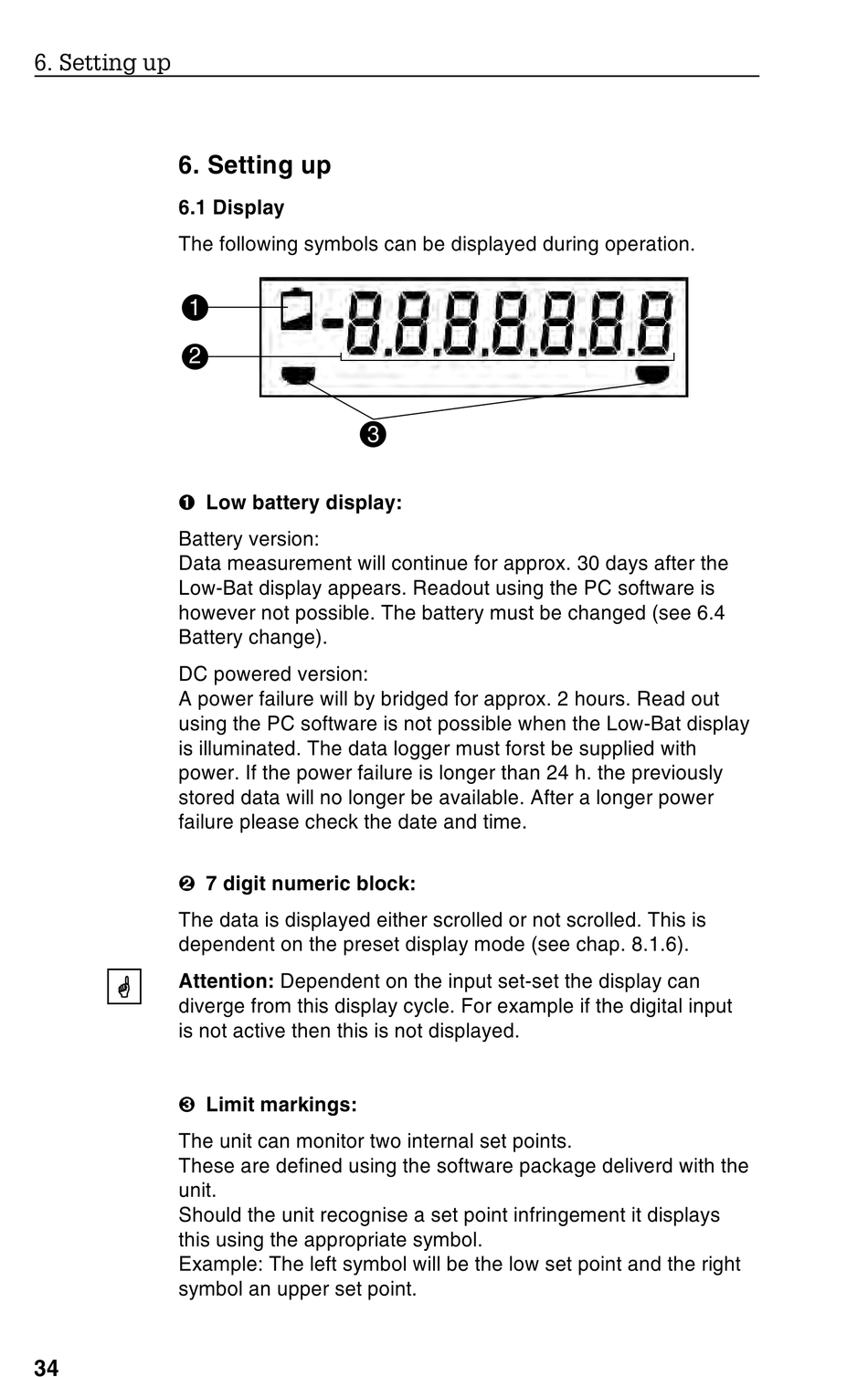

6.1 Display

The following symbols can be displayed during operation.
1
2
Ê Low battery display:
Battery version:
Data measurement will continue for approx. 30 days after the
Low-Bat display appears. Readout using the PC software is
however not possible. The battery must be changed (see 6.4
Battery change).
DC powered version:
A power failure will by bridged for approx. 2 hours. Read out
using the PC software is not possible when the Low-Bat display
is illuminated. The data logger must forst be supplied with
power. If the power failure is longer than 24 h. the previously
stored data will no longer be available. After a longer power
failure please check the date and time.
Ë 7 digit numeric block:
The data is displayed either scrolled or not scrolled. This is
dependent on the preset display mode (see chap. 8.1.6).
Attention: Dependent on the input set-set the display can
diverge from this display cycle. For example if the digital input
is not active then this is not displayed.
Ì Limit markings:
The unit can monitor two internal set points.
These are defined using the software package deliverd with the
unit.
Should the unit recognise a set point infringement it displays
this using the appropriate symbol.
Example: The left symbol will be the low set point and the right
symbol an upper set point.
