8 en
H =
Wiring the devices

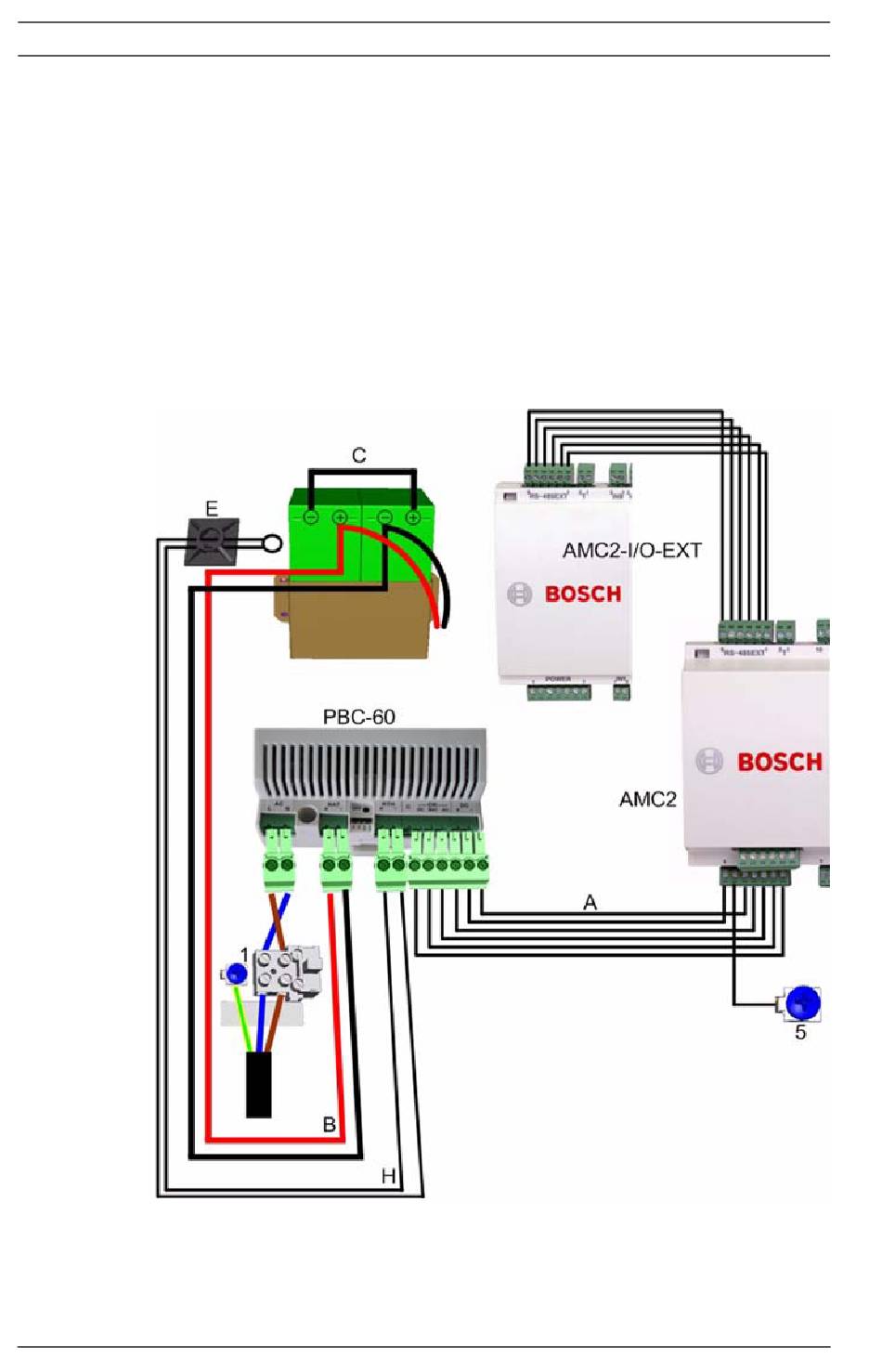

Figure 3 Wiring the devices
F.01U.097.256 | V 1.1 | 2008.12
G1 = 4 Screws M6 x 16
G2 = 4 Cage nuts M6
G3 = 3 Screws M4 x 8
pre mounted cable set with
temperature gauge
AEC-PANEL19 - Installation manual
For mounting in the 19"
enclosure
For mounting the
power supply
Contained in the power
supply kit
