AEC-PANEL19 - Installation manual
NOTICE!
i
Each mounting plate requires 4 rack units (U) and 88 horizontal
pitchs (HP) in a 19" rack.
12V-mode variants

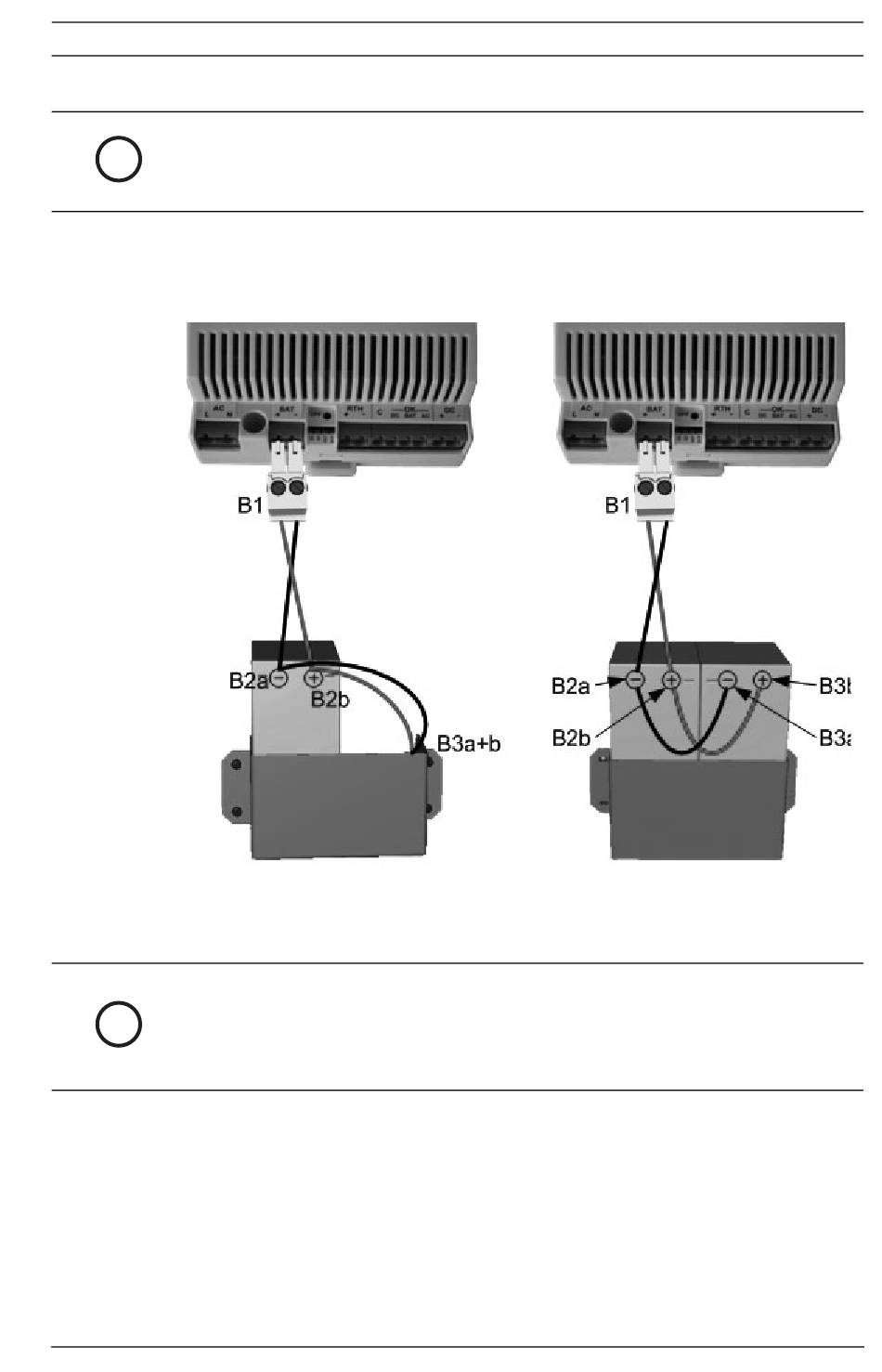

Figure 4 12V-modes with one or two rechargeable batteries
NOTICE!
Figure 4 is a schematic diagram of interconnections within the
i
19" frame, and does not reflect the actual positioning of devices
on the mounting plate.
12V-mode can be used with either one or two rechargeable
batteries.
If using only one battery (left-hand picture) then connect it
using pre mounted cable set B as follows:
1.
2.
Bosch Sicherheitssysteme GmbH
Insert plug B1 into the power supply using the second
socket from the left.
Pass the remaining cable ends through the upper cable
channel 4 to the front of the mounting plate.
F.01U.097.256 | V 1.1 | 2008.12
en 11
