5.2. Selecting a location in cold climates

Refer to "3.4. Model identification" on page 4.
NOTICE
When operating the outdoor unit in a low outdoor ambient
temperature, be sure to follow the instructions described
below.
■
To prevent exposure to wind, install the outdoor unit with its
suction side facing the wall.
■
Never install the outdoor unit at a site where the suction side
may be exposed directly to wind.
■
To prevent exposure to wind, install a baffle plate on the air
discharge side of the outdoor unit.
■

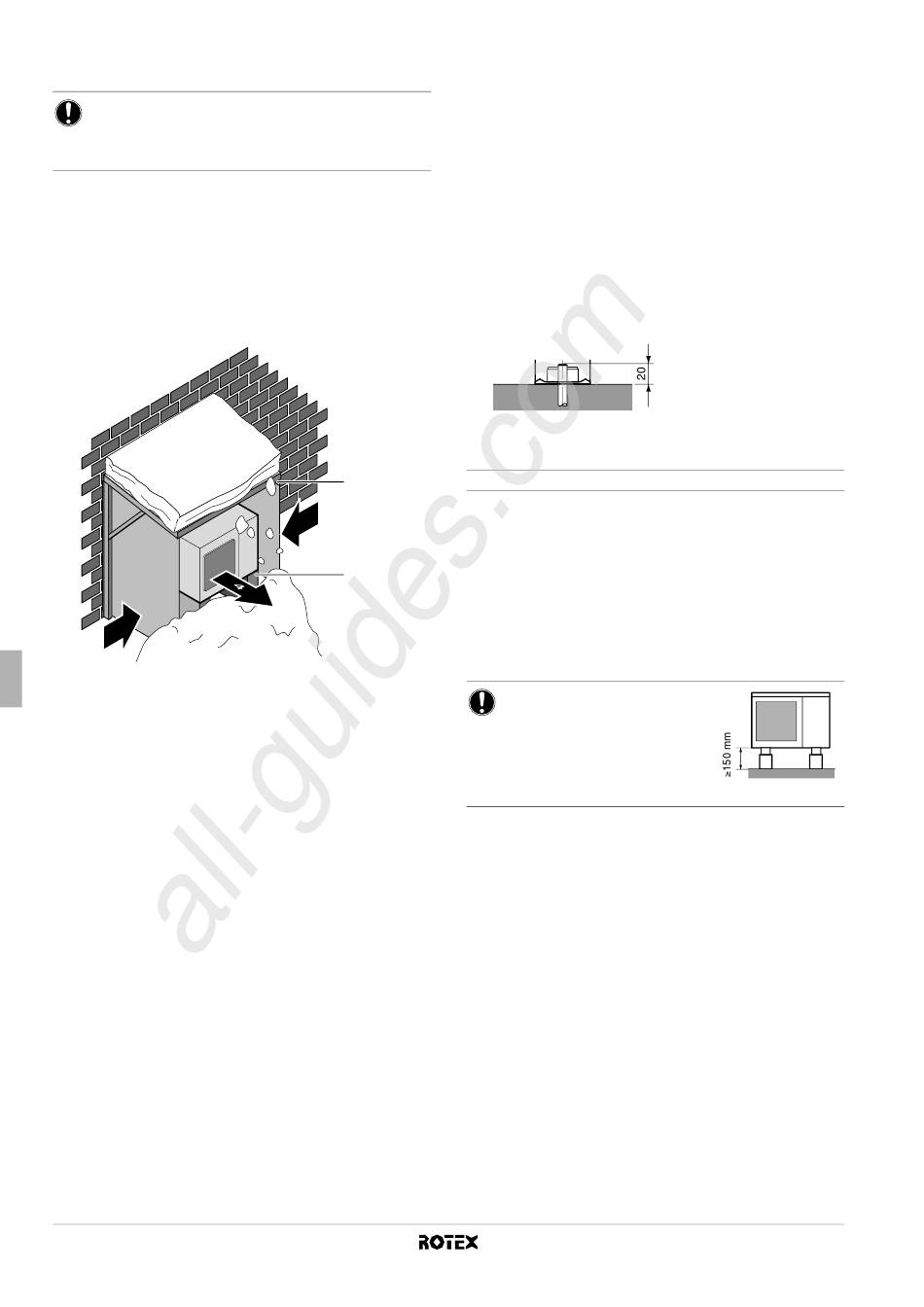

In heavy snowfall areas it is very important to select an
installation site where the snow will not affect the unit and set
the outlet side at a right angle to the direction of the wind:
3
1 Construct a large canopy.
2 Construct a pedestal.
Install the unit high enough off the ground to prevent
burying in snow.
3 Strong wind
4 Discharge air
Installation manual
7
All manuals and user guides at all-guides.com
6.

6.1. Foundation work

When installing the outdoor unit, please refer to "5. Selecting
installation site" on page 6 to select an appropriate location.
1
2
3

6.2. Drain work

General

1
Assure that drain water coming from the outdoor unit during heating
3
operation and defrost operation can be properly evacuated.
■
2
■
■
P
RECAUTIONS ON INSTALLATION
Check the strength and level of the installation ground so that
the unit will not cause any operating vibration or noise after
installation.
Prepare 4 sets of M8 or M10 foundation bolts, nuts and washers
each (field supply).
Fix the unit securely by means of the foundation bolts in
accordance with the foundation drawing.
It is best to screw in the foundation bolts until their length are
20 mm from the foundation surface.
Install the unit on a base that can assure a proper drainage in
order to avoid ice accumulation.
A drain channel can be foreseen under the unit. Be sure that
drain water in this drain channel does not freeze causing
blockage by ice accumulation.
Avoid drain water flowing over the footpath, so that in case of
ambient freezing temperatures the footpath does not become
slippery.
NOTICE
If drain holes of the outdoor unit
are covered by a mounting base or
by floor surface, raise the unit in
order to provide a free space of
more than 150 mm under the
outdoor unit.
Outdoor unit for air to water heat pump
RRLQ006~008BBV3
4PW68222-1 – 02.2011
