Aqua Medic Cubicus CF Bedienungsanleitung Seite 15

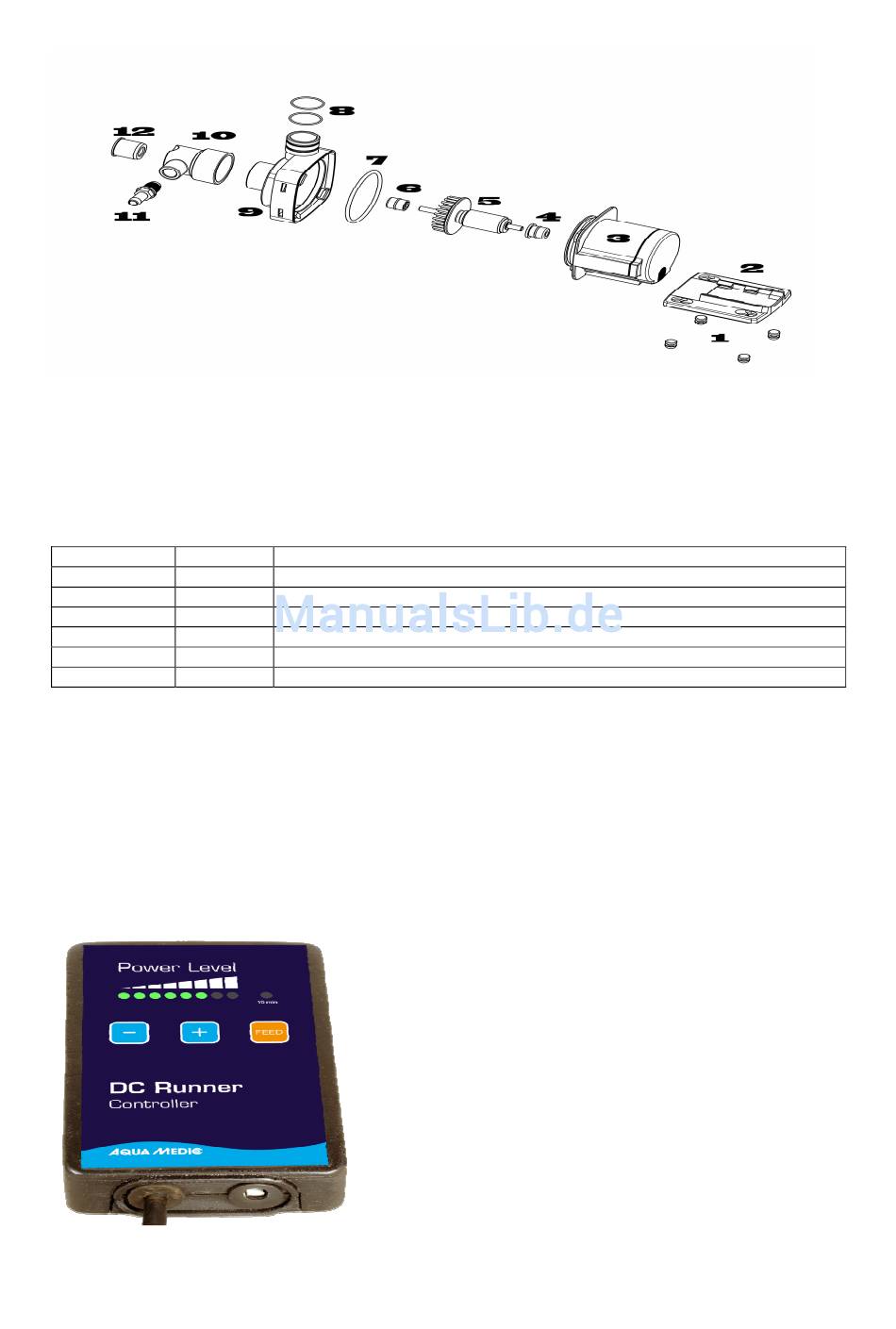

Fig. 5: Venturi pump DC Runner 1.2 incl. 3D-needle wheel
1. 4 rubber feet
2. Retaining plate
3. Pump motor
4. Rear ceramic bearing
5. Rotor incl. 3D needle wheel
6. Front ceramic bearing
Art.-No. Pict.-No.
100.312-1 1/2
100.312-31 4/5/6
100.312-25 4/6
410.10-29 7/8
100.312-10 9
100.312-14 10
The pump DC Runner 1.2 is operated by an electronic safety transformer at AC 100 – 240 V / 50 –
60 Hz and 24 V DC output. Power consumption of the pump is max. 7 watts, protection rating is IP
X8. To open the pump, remove retaining plate and release the pump head (Fig. 5, No. 9) by
turning it. Mount the pump without filter basket.
DC Runner Controller
The included DC Runner Controller is switched between power supply and pump to adjust the foam
production. The power can be adjusted by pressing the +/- buttons, the level is displayed by LED.
If you press the button „FEED", the foam production will stop for 10 minutes. Controller,
transformer, plugs and sockets have to be kept dry.
Pict. 6: DC Runner Controller
7. Housing's sealing
8. Seals for pressure connection
9. Pump head
10. Air intake nozzle
11. Connection for air hose
12. Reduction for air intake nozzle
Article
Bottom plate with rubber suckers
Impeller cpl.
Rubber bearing and ceramic insert
Set O-rings
Pump lock
Filter basket
15
