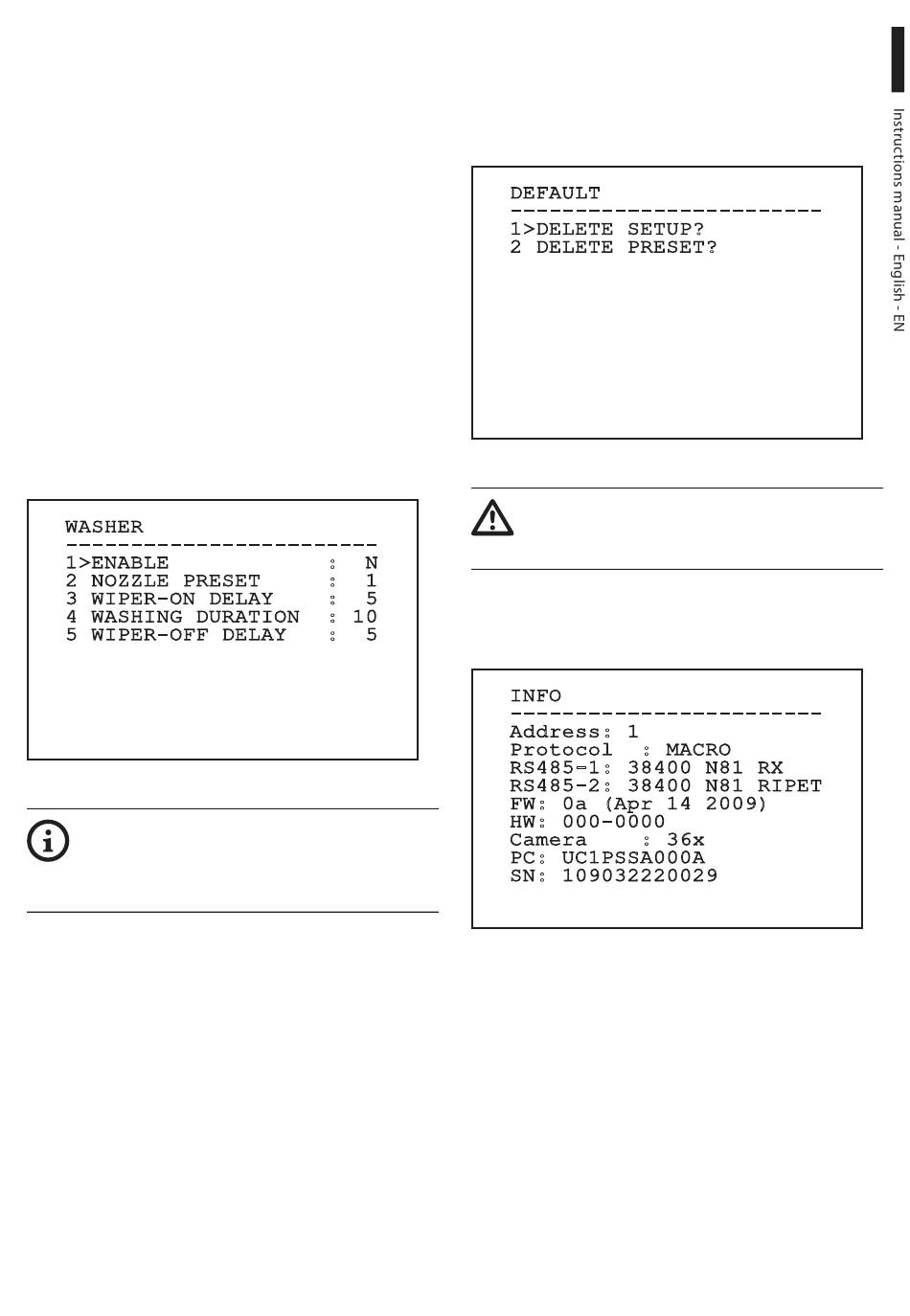

9.1.13 Washer Menu

The P&T offers the possibility to use a wiper and to
operate a pump to clean the glass.
To configure the Washer put the lens of the camera in
front of the nozzle of the Washer.
Save a preset (XY) that identifies this position; the
preset will be recalled by the pan & tilt when the
WASHER function is enabled.
Configure the following parameters:
Enable: Enabling the Washer function.
1.
2. Nozzle Preset: Enter the preset number (XY)
corresponding to the nozzle.
Wiper On Delay: Select the time interval
3.
between the pump and wiper.
Washing Length: Choose the duration of
4.
brushing.
Wiper Off Delay: Choose the duration of
5.
brushing without water.
WASHER
------------------------
1>ENABLE
2 NOZZLE PRESET
3 WIPER-ON DELAY
4 WASHING DURATION
5 WIPER-OFF DELAY
Fig. 81
The enabling of the Washer function
reserves the use of Relay 2 to the switching
on of the pump and does not allow the
association of Relay 2 with an alarm.
MNVCUCZ_1511_EN

9.1.14 Default Menu

1.
2.
Fig. 82
: N
: 1

9.1.15 Info Menu

: 5
: 10
The menu is used to check the configuration of the
: 5
device and the installed firmware version.
Fig. 83
Delete Setup?: Resets all the parameters except
the Presets.
Delete Preset?: Deletes all previously stored
presets.
DEFAULT
------------------------
1>DELETE SETUP?
2 DELETE PRESET?
The above mentioned operations cause the
loss of all previously stored data (i.g. Preset,
Patrol, Autopan, Home...).
INFO
------------------------
Address: 1
Protocol : MACRO
RS485-1: 38400 N81 RX
RS485-2: 38400 N81 RIPET
FW: 0a (Apr 14 2009)
HW: 000-0000
Camera : 36x
PC: UC1PSSA000A
SN: 109032220029
