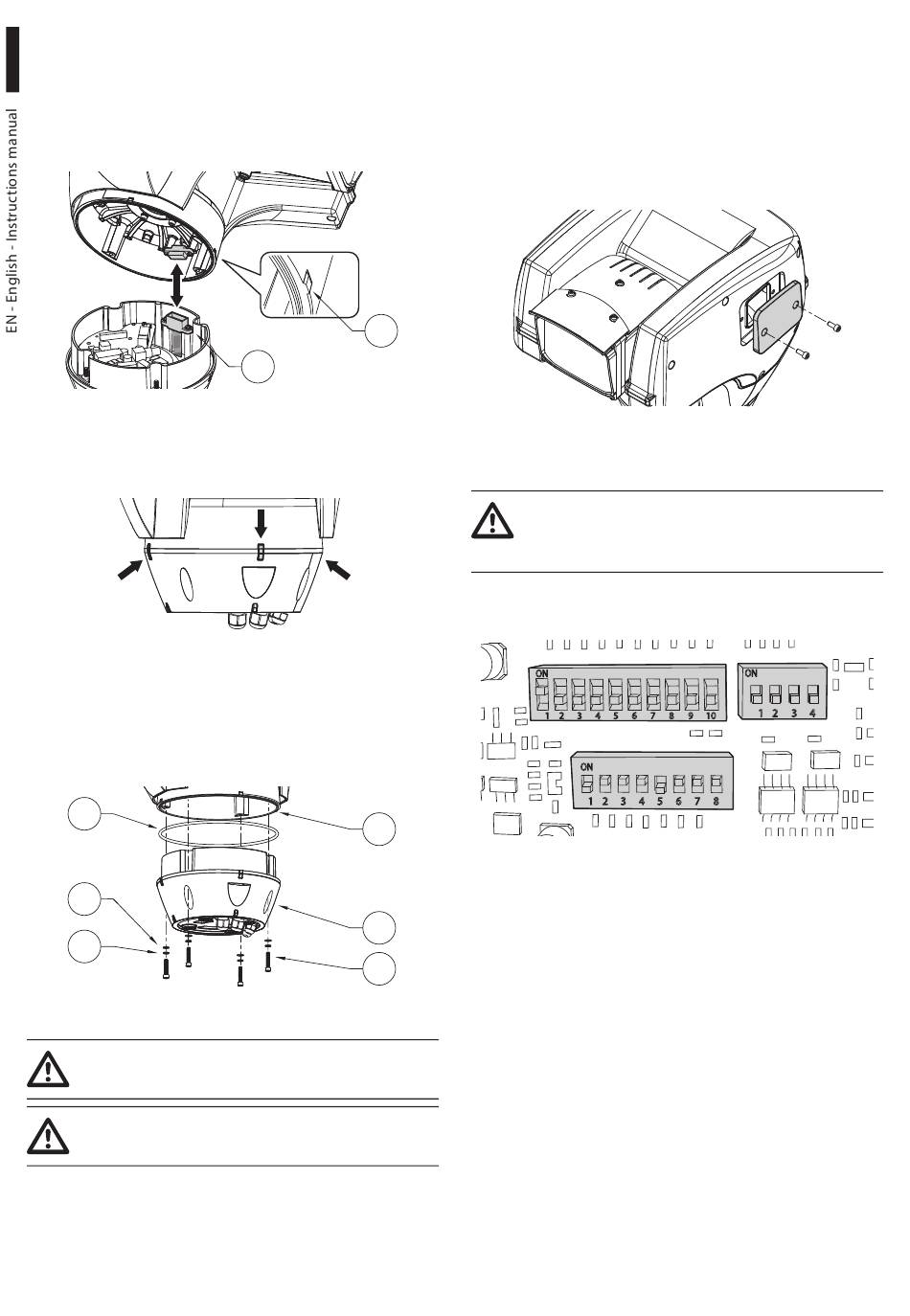

7.5 Fixing the upper body

Point the self-centering connector (01) of the upper
unit. Point the side set (02) so that it faces the frontal
vision of the camera. Position the upper part on the
base in the same direction shown in the figure.
Fig. 23
The side sets on the base and on the upper unit are
thus aligned in the only possible position.
Fig. 24
Fasten the upper unit (01) to the base (02) by means
of the fastening screws (03), the notched washers (04)
and the flat washers (05). Make sure that the base
gasket is in position and in good state (06).
06
05
04
Fig. 25
Apply a Loctite 243® type thread-locker on
the holes of the screws.
Pay attention to the fixing. Tightening
torque: 4Nm.
20
02
01
01
02
03

7.6 Hardware configuration

7.6.1 Opening the configuration door

Before powering the device it must be configured
correctly by setting the dip-switches inside the
configuration window. Open the hatch by undoing
the screws as shown in figure.
Fig. 26

7.6.2 Configuration of the dip-switches

When the dip-switch rocker (SW) is up it
represents the value 1 (ON) while if it is
down it represents the value 0 (OFF).
Once the configuration cover is opened the dip-
switches will appear as shown in figure.
DIP2
Fig. 27
DIP3
DIP1
