process. For this purpose, read the manual of your vehicle or ask your specialist workshop.
• To remove the battery charger, rst pull the plug out of the socket and observe the sequence for dis-
connection. This prevents sparks from forming. Since charging generates a detonating gas, this is particu-
larly important for the sake of your safety.
• Only hold the power cable at the power plug when disconnecting from the power socket.
• Never expose the charger to the vicinity of re, heat and extensive temperatures over +40°C.
• Store these instructions carefully and, if necessary, pass them on to other users.

5. Explanation of symbols

6. Operating instructions

Before using the device make sure that you have read the operating instructions for the battery and the vehicle and
you have understood all of the safety precautions.

6.1 Overview

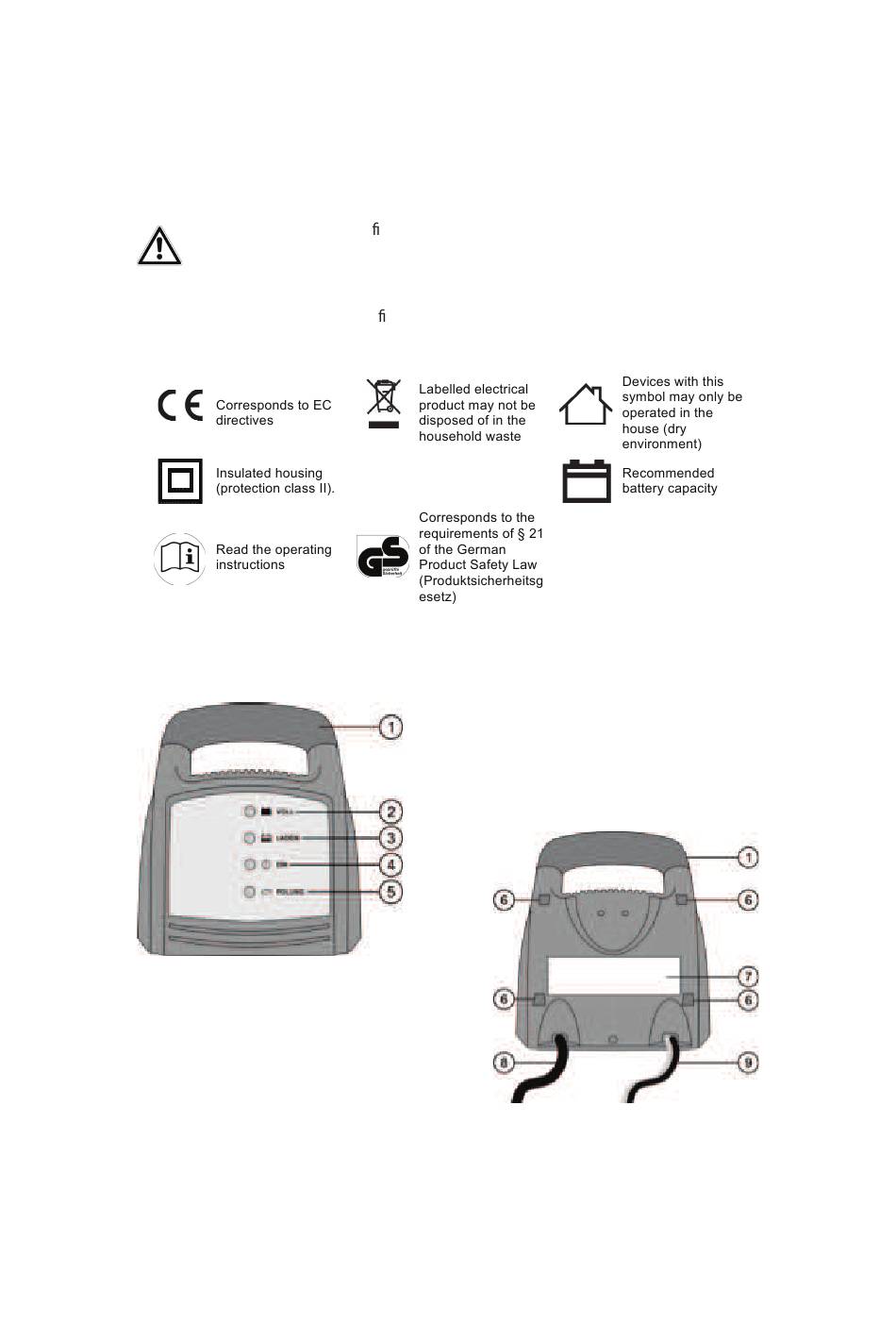

Figure 1: View of front
1 Carry handle
2 Control lamp – Green - Fully charged
3 Control lamp – Yellow - Charging
4 Control lamp – Green - Operating
5 Control lamp – Red - Pole callipers connected incorrectly
1 Carry handle
6 Mounts for cable holder
7 Type plate
8 Mains connection cable
9 Charging cable
Figure 1: View of rear
