9. Display Overview

Note!

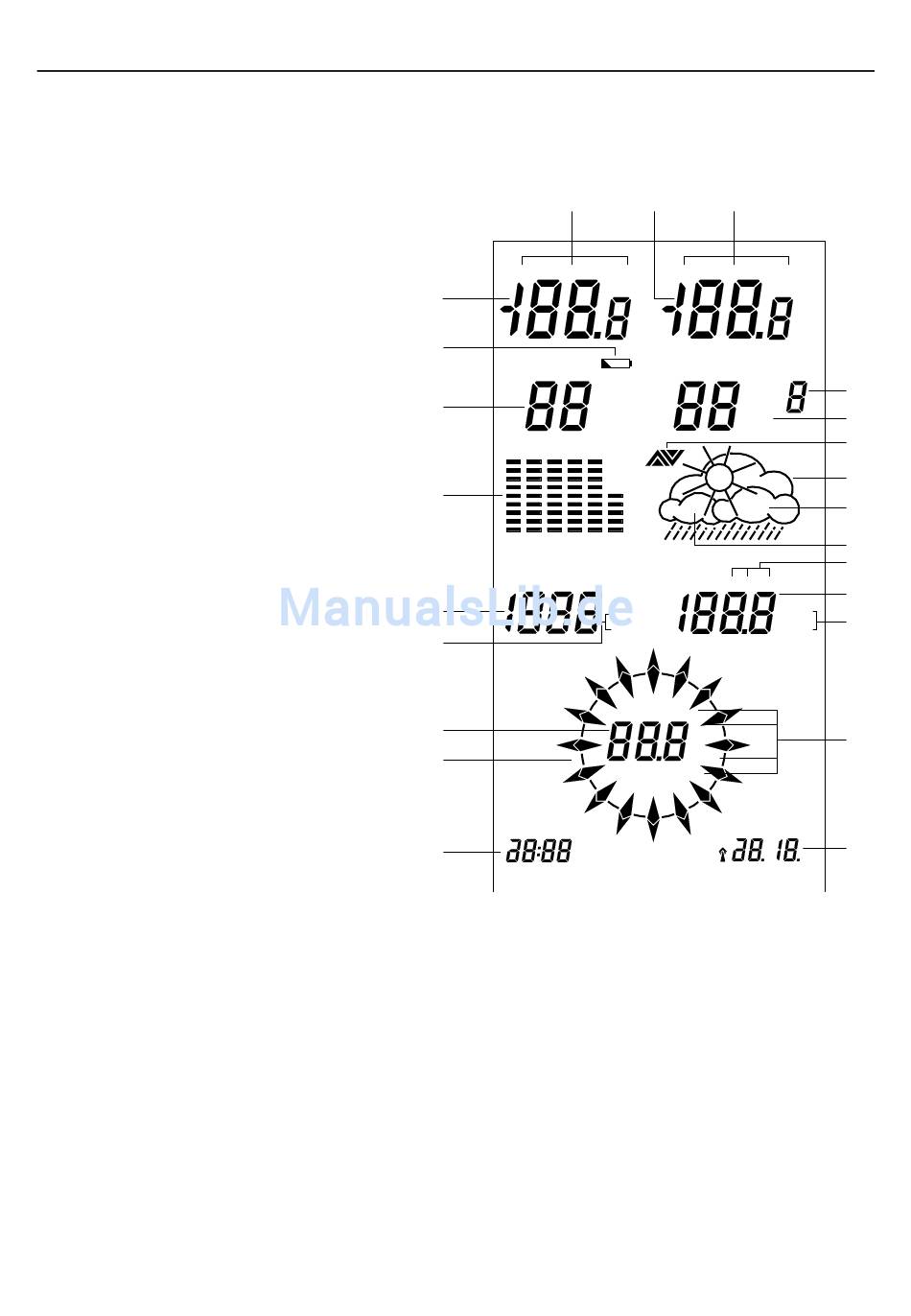

Unlike the real display the following illustration shows every display
combination possible in order to give a description of their appearance.
1. Temperature Indoor Sensor and
Indoor/Outdoor Sensor
respectively
2. Current Indoor Measurement:
Temperature or Perceived
Temperature or Dew Point
3. Humidity Indoor Sensor and
Indoor/Outdoor Sensor
respectively
4. Temperature of selected
Temperature/Humidity Sensor
5. Current Outdoor Measurement:
Temperature or Perceived
Temperature or Dew Point
6. Identification Number of
selected Outdoor Sensor
7. Humidity of selected Outdoor
Sensor
8. Low Battery Indicator
9. Display of Air Pressure
10. Display of Air Pressure Unit:
hPa or mmHg
11. Display of Rain Volume Unit: l/
m 2 or mm
12. Display of Rain Volume
13. Display of Time Period of Rain Volume: Total or last 24 Hours or last Hour
14. Display of Air Pressure Tendency
15. Display of Air Pressure History of last 24 Hours
16. Icons for Weather Forecast
17. Display for Poll of Minimum Values
18. Display for Poll of Maximum Values
19. Display of Date of the Day, to the left Radio-Controlled DCF-77 Time Signal
Reception Icon
20. Display of Time
21. Display of Wind Strength Unity: Knots or km/h or m/s or Beaufort
22. Display of Wind Strength or Wind Direction (in 5° Steps)
23. Compass, Display in 22.5° Steps with Display of Deviation Range at
Changing Winds
