Only for transmitters without a butterfly (crow) mixer (e.g. mx-10 HoTT):
If a butterfly (crow) mixer is required, you will not be able to use one of the two functions 'differential' or
'landing flap' adjustment, as two mixers are needed for this.
Programming example:
RX FREE MIXER
>MIXER:
MASTER CH:
SLAVE CH:
>TRIM:
>TRAVEL-:
TRAVEL+:
Programming example:
RX FREE MIXER
>MISCHER:
MASTER CH:
SLAVE CH:
>TRIM:
>TRAVEL-:
TRAVEL+:

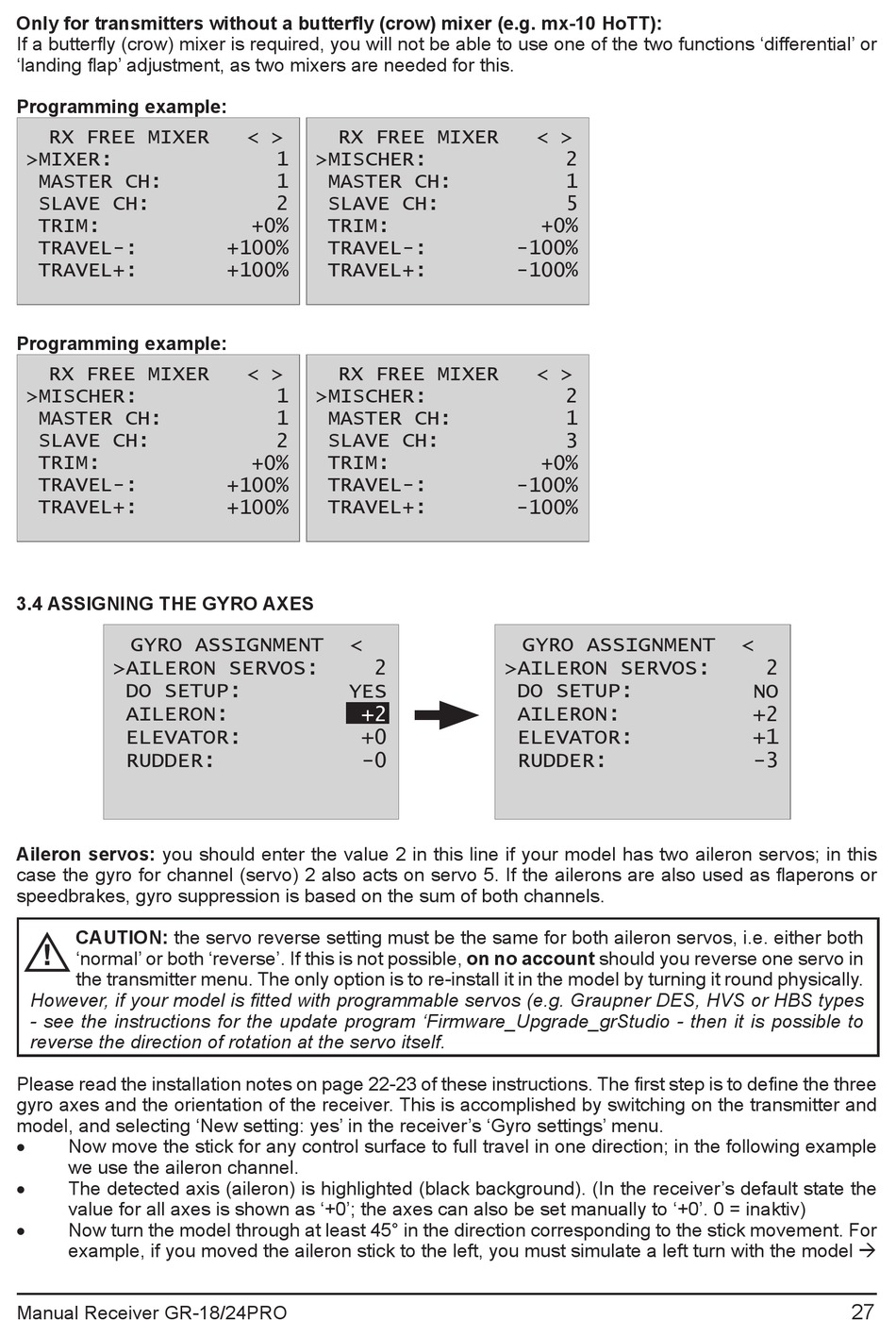

3.4 AssIGNING thE GYRO AXEs

GYRO ASSIGNMENT
>AILERON SERVOS:
DO SETUP:
AILERON:
ELEVATOR:
RUDDER:
Aileron servos: you should enter the value 2 in this line if your model has two aileron servos; in this
case the gyro for channel (servo) 2 also acts on servo 5. If the ailerons are also used as flaperons or
speedbrakes, gyro suppression is based on the sum of both channels.
cAUtION: the servo reverse setting must be the same for both aileron servos, i.e. either both
'normal' or both 'reverse'. If this is not possible, on no account should you reverse one servo in
the transmitter menu. The only option is to re-install it in the model by turning it round physically.
However, if your model is fitted with programmable servos (e.g. Graupner DES, HVS or HBS types
- see the instructions for the update program 'Firmware_Upgrade_grStudio - then it is possible to
reverse the direction of rotation at the servo itself.
Please read the installation notes on page 22-23 of these instructions. The first step is to define the three
gyro axes and the orientation of the receiver. This is accomplished by switching on the transmitter and
model, and selecting 'New setting: yes' in the receiver's 'Gyro settings' menu.
• Now move the stick for any control surface to full travel in one direction; in the following example
we use the aileron channel.
• The detected axis (aileron) is highlighted (black background). (In the receiver's default state the
value for all axes is shown as '+0'; the axes can also be set manually to '+0'. 0 = inaktiv)
• Now turn the model through at least 45° in the direction corresponding to the stick movement. For
example, if you moved the aileron stick to the left, you must simulate a left turn with the model 
