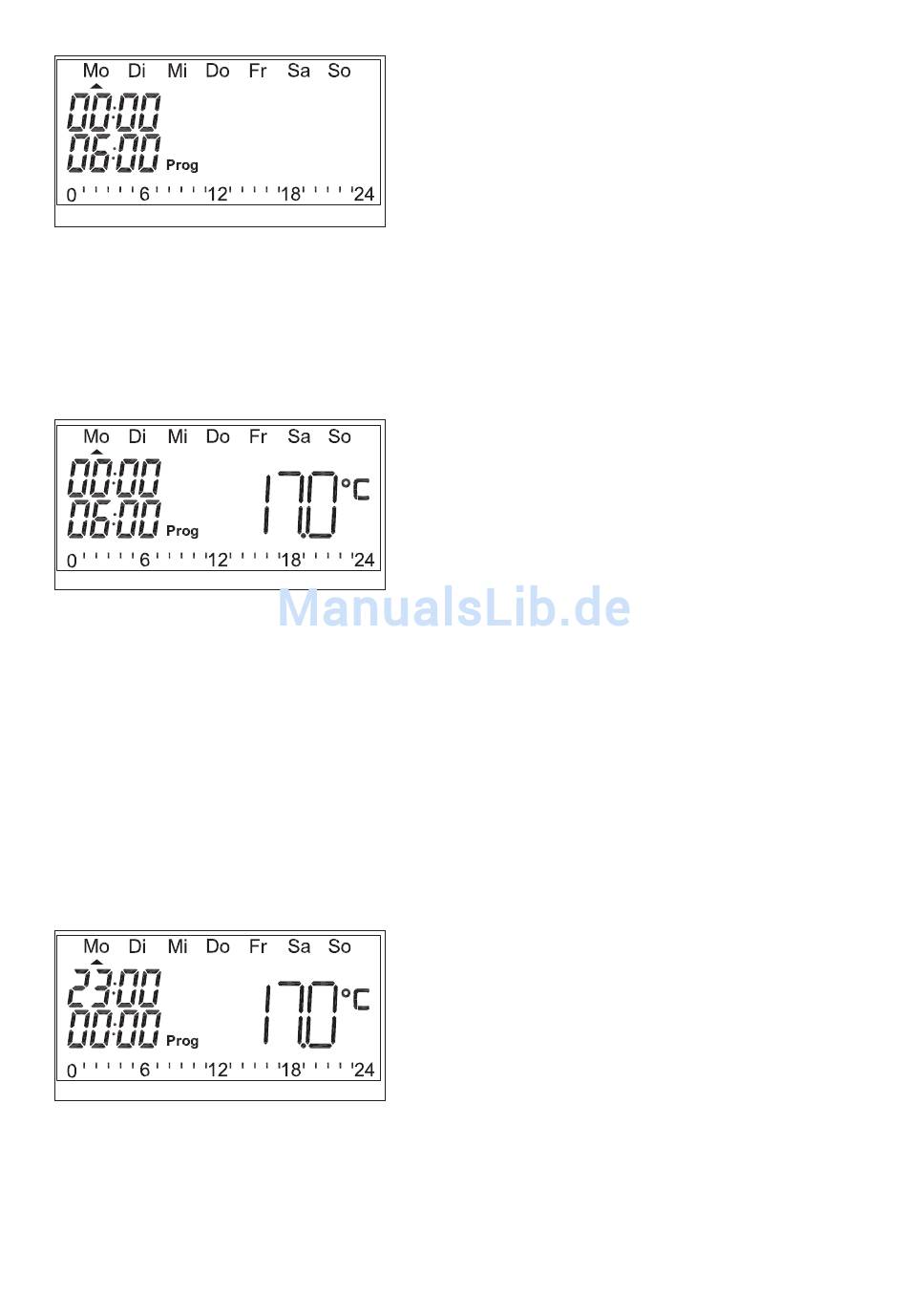

Use the setting dial to define the end time for the first tempera-
ture phase and confirm the entry with the "OK" button.
The set temperature for the selected time range appears on the
display.
Use the setting dial to set the desired temperature. As an alterna-
tive, you can select the comfort temperature or the lowered tem-
perature as temperature with the "Moon/Sun" button. Confirm
your setting with the "OK" button.
The display for the next temperature phase time appears. The
starting time, which cannot be changed, is shown in the top
line again and the variable end time for ending this temperature
phase is shown in the bottom line. Other temperature phases can
now be entered as described above.
The scale in the lower display margin follows the current
changes so that the effects on the daily profile can be recognized
immediately (the scale is always shown if the temperature value
is greater or equal to the comfort temperature).
50
