English
3

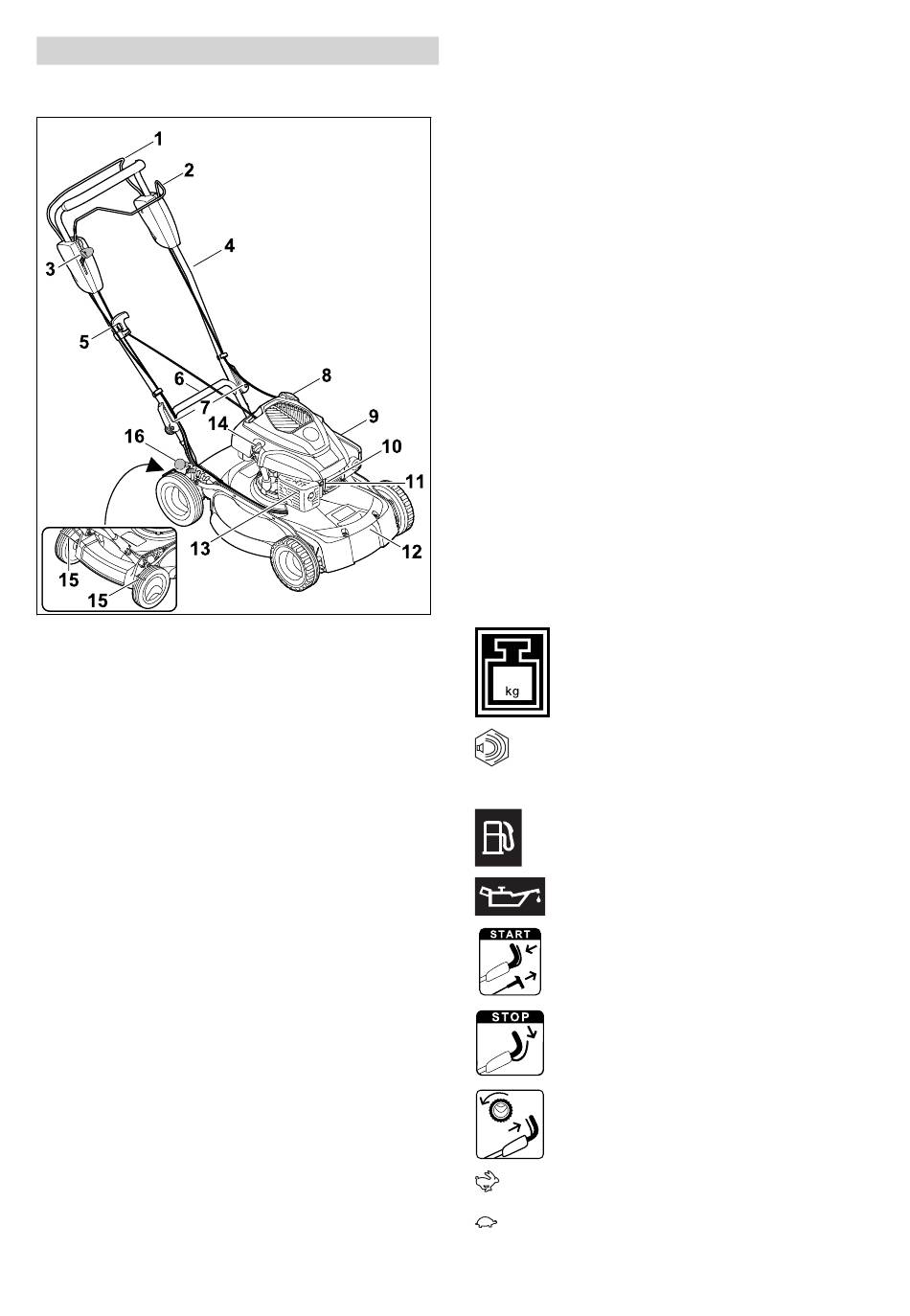

Overview

3.1

Lawn Mower

1 Control bar for mowing
The control bar for mowing is used to start
and stop the engine.
2 Control bar for self-propulsion
The control bar for self-propulsion is used to
start and stop the engine.
3 Lever
The lever is used to set the self-propulsion
speed.
4 Handlebar
The handlebar is used to hold, guide and
transport the lawn mower.
5 Starter handle
The starter handle is used to start the engine.
6 Rear transport handle
The transport handle is used to transport the
lawn mower.
7 Quick-clamping devices
The quick-clamping devices clamp the han‐
dlebar to the lawn mower.
8 Fuel tank cap
The fuel tank cap seals the opening for add‐
ing petrol.
9 Filter cover
The filter cover provides protection for the air
filter.
20
10 Spark plug socket
The spark plug socket connects the ignition
lead to the spark plug.
11 Spark plug
The spark plug ignites the fuel/air mixture in
the engine.
12 Front transport handle
The transport handle is used to transport the
lawn mower.
13 Muffler
The muffler reduces the lawn mower's noise
level.
14 Engine oil cap
The engine oil cap seals the opening for add‐
ing engine oil.
15 Wheel scraper
The wheel scraper is used to clean the rear
wheels.
16 Lever
The lever is used to set the cutting height.
3.2 Symbols
The symbols can be on the lawn mower and
have the following meaning:
This symbol indicates the lawn mower
weight.
XX
Guaranteed sound power level in
L
accordance with Directive 2000/14/EC
WA
in dB(A) for the purpose of comparing
the sound emissions of products.
This symbol identifies the fuel tank
cap.
This symbol identifies the engine oil
cap.
Start the engine.
Stop the engine.
Engage self-propulsion.
The lawn mower moves at its fastest
speed in this setting.
The lawn mower moves at its slowest
speed in this setting.
