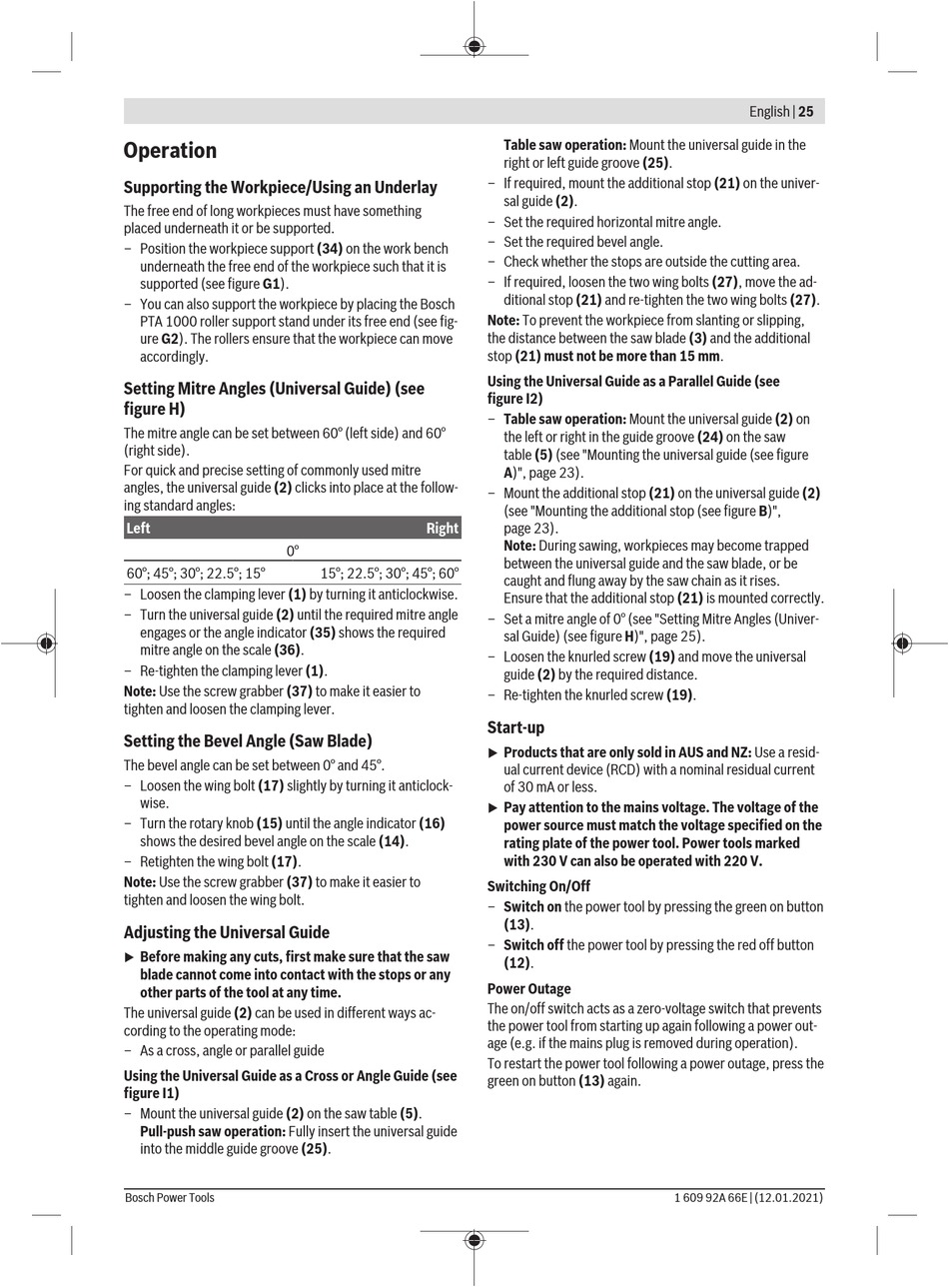

Supporting The Workpiece/Using An Underlay - Bosch AdvancedTableCut 52 Originalbetriebsanleitung

Operation

Supporting the Workpiece/Using an Underlay

The free end of long workpieces must have something
placed underneath it or be supported.
– Position the workpiece support (34) on the work bench
underneath the free end of the workpiece such that it is
supported (see figure G1).
– You can also support the workpiece by placing the Bosch
PTA 1000 roller support stand under its free end (see fig-
ure G2). The rollers ensure that the workpiece can move
accordingly.
Setting Mitre Angles (Universal Guide) (see
figure H)
The mitre angle can be set between 60° (left side) and 60°
(right side).
For quick and precise setting of commonly used mitre
angles, the universal guide (2) clicks into place at the follow-
ing standard angles:
Left
0°
60°; 45°; 30°; 22.5°; 15°
– Loosen the clamping lever (1) by turning it anticlockwise.
– Turn the universal guide (2) until the required mitre angle
engages or the angle indicator (35) shows the required
mitre angle on the scale (36).
– Re-tighten the clamping lever (1).
Note: Use the screw grabber (37) to make it easier to
tighten and loosen the clamping lever.
Setting the Bevel Angle (Saw Blade)
The bevel angle can be set between 0° and 45°.
– Loosen the wing bolt (17) slightly by turning it anticlock-
wise.
– Turn the rotary knob (15) until the angle indicator (16)
shows the desired bevel angle on the scale (14).
– Retighten the wing bolt (17).
Note: Use the screw grabber (37) to make it easier to
tighten and loosen the wing bolt.
Adjusting the Universal Guide
Before making any cuts, first make sure that the saw
u
blade cannot come into contact with the stops or any
other parts of the tool at any time.
The universal guide (2) can be used in different ways ac-
cording to the operating mode:
– As a cross, angle or parallel guide
Using the Universal Guide as a Cross or Angle Guide (see
figure I1)
– Mount the universal guide (2) on the saw table (5).
Pull-push saw operation: Fully insert the universal guide
into the middle guide groove (25).
Bosch Power Tools
– If required, mount the additional stop (21) on the univer-
– Set the required horizontal mitre angle.
– Set the required bevel angle.
– Check whether the stops are outside the cutting area.
– If required, loosen the two wing bolts (27), move the ad-
Note: To prevent the workpiece from slanting or slipping,
the distance between the saw blade (3) and the additional
stop (21) must not be more than 15 mm.
Using the Universal Guide as a Parallel Guide (see
figure I2)
– Table saw operation: Mount the universal guide (2) on
– Mount the additional stop (21) on the universal guide (2)
Right
15°; 22.5°; 30°; 45°; 60°
– Set a mitre angle of 0° (see "Setting Mitre Angles (Univer-
– Loosen the knurled screw (19) and move the universal
– Re-tighten the knurled screw (19).
Start-up
u
u
Switching On/Off
– Switch on the power tool by pressing the green on button
– Switch off the power tool by pressing the red off button
Power Outage
The on/off switch acts as a zero-voltage switch that prevents
the power tool from starting up again following a power out-
age (e.g. if the mains plug is removed during operation).
To restart the power tool following a power outage, press the
green on button (13) again.
Table saw operation: Mount the universal guide in the
right or left guide groove (25).
sal guide (2).
ditional stop (21) and re-tighten the two wing bolts (27).
the left or right in the guide groove (24) on the saw
table (5) (see "Mounting the universal guide (see figure
A)", page 23).
(see "Mounting the additional stop (see figure B)",
page 23).
Note: During sawing, workpieces may become trapped
between the universal guide and the saw blade, or be
caught and flung away by the saw chain as it rises.
Ensure that the additional stop (21) is mounted correctly.
sal Guide) (see figure H)", page 25).
guide (2) by the required distance.
Products that are only sold in AUS and NZ: Use a resid-
ual current device (RCD) with a nominal residual current
of 30 mA or less.
Pay attention to the mains voltage. The voltage of the
power source must match the voltage specified on the
rating plate of the power tool. Power tools marked
with 230 V can also be operated with 220 V.
(13).
(12).
