Coarse setting device

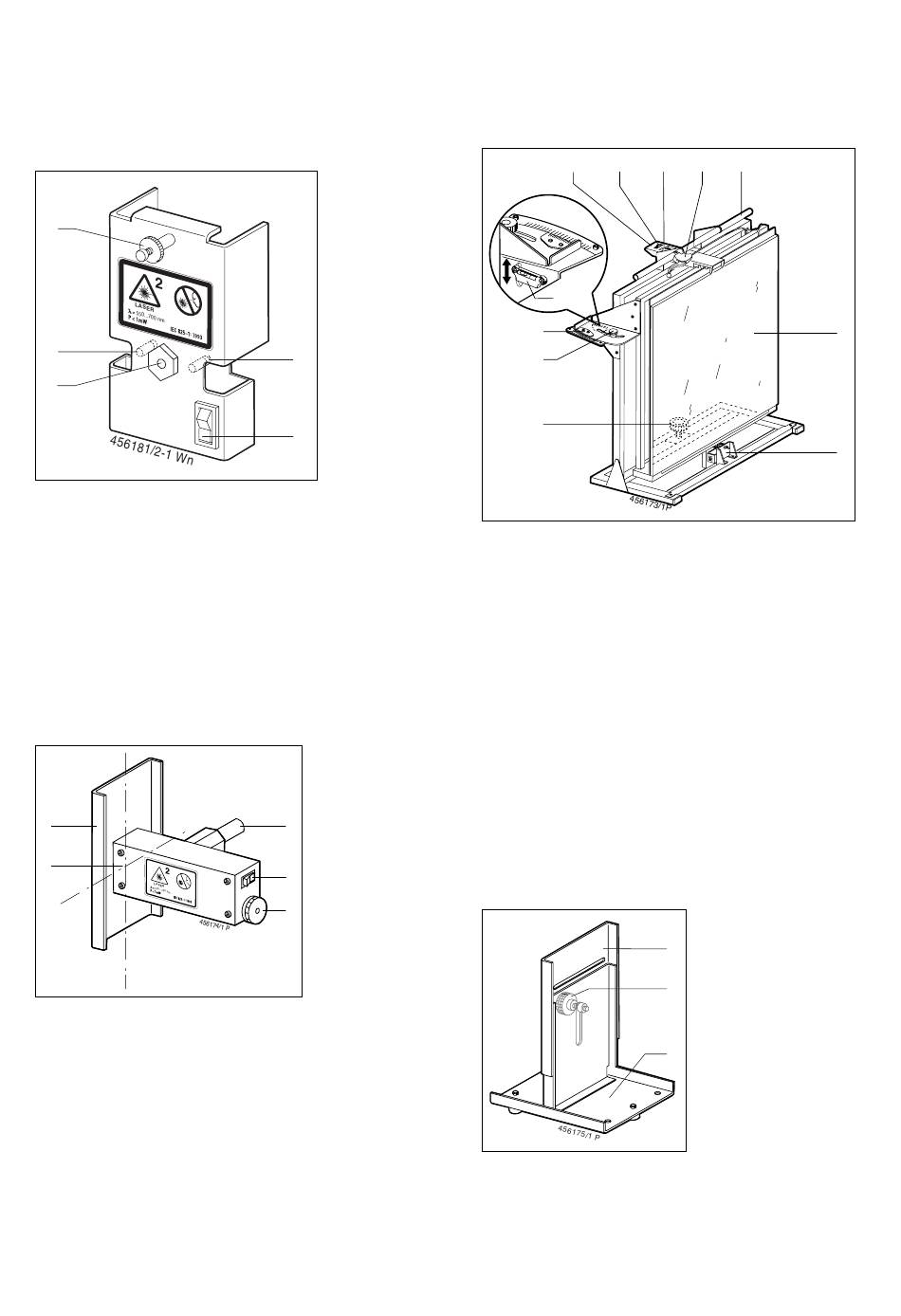

Figure 2 shows the coarse setting device for the ACC sensor.
Adjustment is performed visually (using the laser incorporated
in the coarse setting device).
3
4
2
Figure 2: Coarse setting device
1.
On/Off switch (laser)
2.
Outlet aperture for laser beam
3.
Locking screw (for fastening to the ACC sensor)
4.
Screws for opening battery compartment
4.2
Wheel laser
The wheel laser is required for aligning the mirror both horizontally
and vertically.
5
4
Figure 3: Wheel laser
1.
Axle for receiving / fastening to the universal quick-change clamp
2.
On/Off switch (laser)
3.
Screw-on cover for opening battery compartment
4.
Outlet aperture for laser beam
5.
Projection surface with crosshairs
4
1
1
2
3
4.3
Setting device
The setting device is required for establishing the driving axis and
for the coarse and fine adjustment of the ACC sensor.
7
8
6
5
4
3
Figure 4: Setting device
1.
Mirror
2.
Clamp
3.
Knurled screw for vertical adjustment of the setting device
4.
Setscrew for horizontal mirror adjustment
5.
Scale for horizontal mirror adjustment
6.
Spirit level
7.
Tilting mechanism for mirror (for fine adjustment)
8.
Knurled nut for vertical mirror adjustment
9.
Scale for vertical mirror adjustment
10.
Locking lever for releasing the clamp
11.
Carry handle
4.4
Slotted cover
The slotted cover, in conjunction with the wheel laser, is used for
vertically adjusting the mirror.
Figure 5: Slotted cover
1.
Height-adjustable cover with slot for laser beam
2.
Setscrew for cover
3.
Baseplate with guide for cover
9
10
11
1
2
3
1
2
