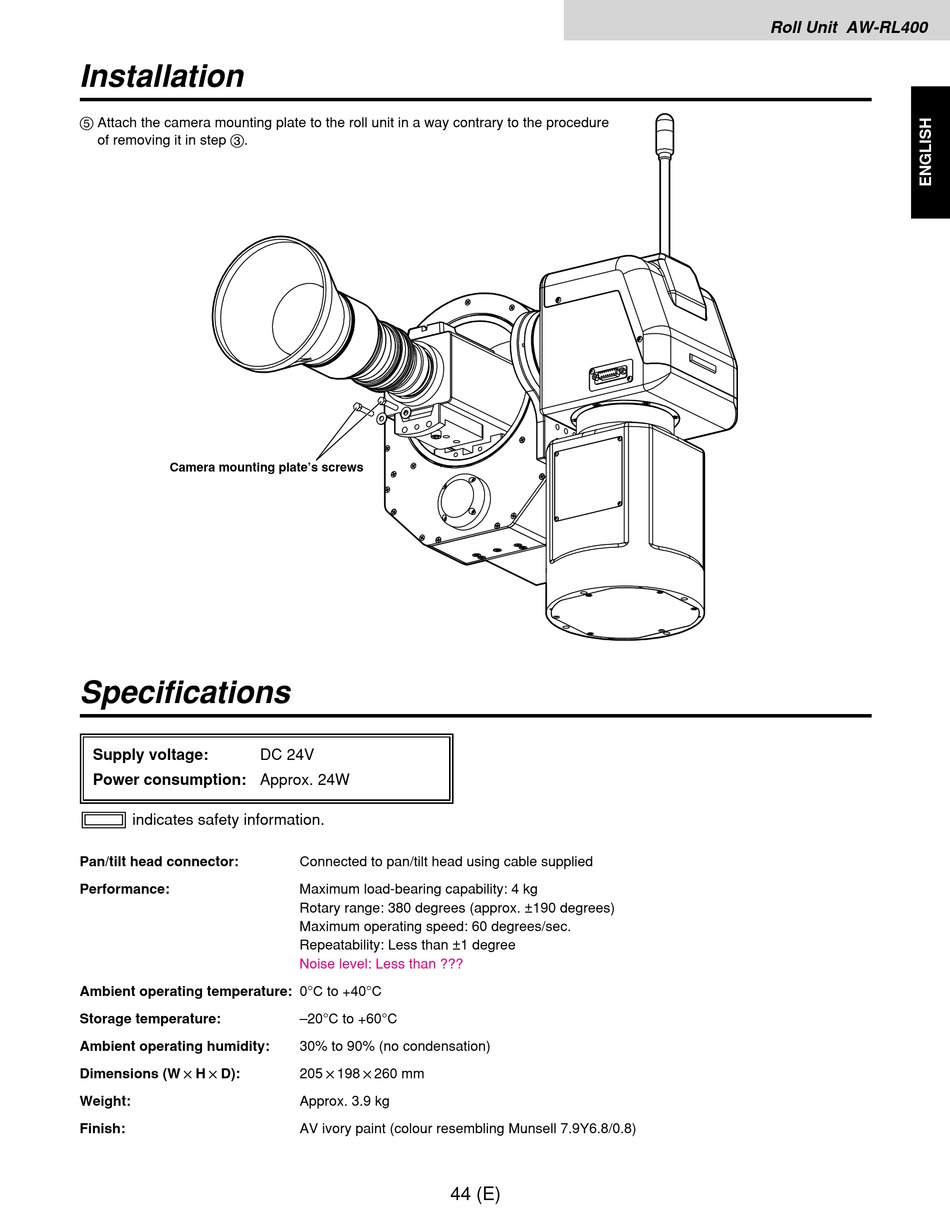

Installation
5 Attach the camera mounting plate to the roll unit in a way contrary to the procedure
of removing it in step 3.
Camera mounting plate's screws

Specifications

Supply voltage:
Power consumption: Approx. 24W
1 indicates safety information.
Pan/tilt head connector:
Performance:
Ambient operating temperature: 0°C to +40°C
Storage temperature:
Ambient operating humidity:
Dimensions (W!H!D):
Weight:
Finish:
DC 24V
Connected to pan/tilt head using cable supplied
Maximum load-bearing capability: 4 kg
Rotary range: 380 degrees (approx. ±190 degrees)
Maximum operating speed: 60 degrees/sec.
Repeatability: Less than ±1 degree
Noise level: Less than ???
–20°C to +60°C
30% to 90% (no condensation)
205!198!260 mm
Approx. 3.9 kg
AV ivory paint (colour resembling Munsell 7.9Y6.8/0.8)
44 (E)
Roll Unit AW-RL400
