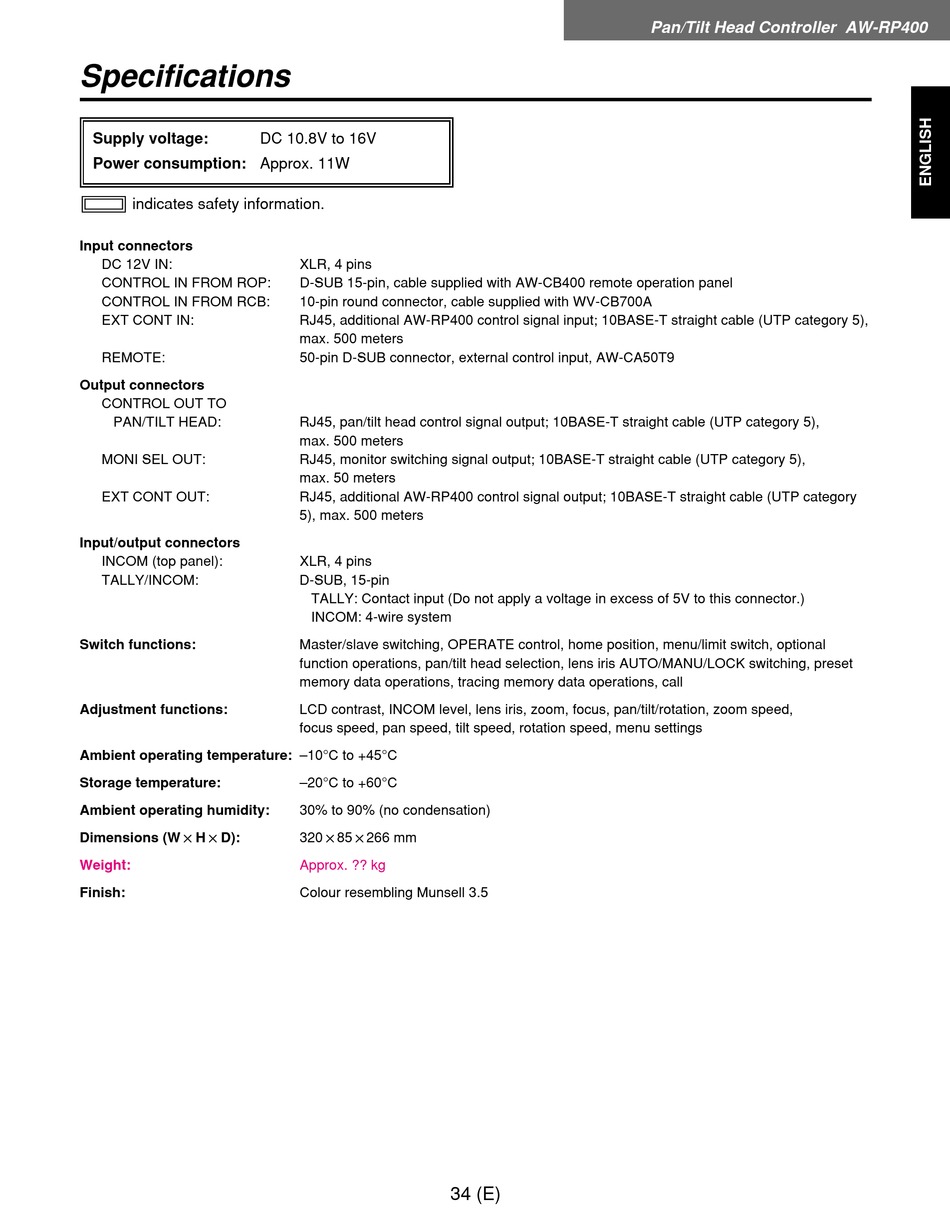

Specifications

Supply voltage:
Power consumption: Approx. 11W
1 indicates safety information.
Input connectors
DC 12V IN:
CONTROL IN FROM ROP:
CONTROL IN FROM RCB:
EXT CONT IN:
REMOTE:
Output connectors
CONTROL OUT TO
PAN/TILT HEAD:
MONI SEL OUT:
EXT CONT OUT:
Input/output connectors
INCOM (top panel):
TALLY/INCOM:
Switch functions:
Adjustment functions:
Ambient operating temperature: –10°C to +45°C
Storage temperature:
Ambient operating humidity:
Dimensions (W!H!D):
Weight:
Finish:
DC 10.8V to 16V
XLR, 4 pins
D-SUB 15-pin, cable supplied with AW-CB400 remote operation panel
10-pin round connector, cable supplied with WV-CB700A
RJ45, additional AW-RP400 control signal input; 10BASE-T straight cable (UTP category 5),
max. 500 meters
50-pin D-SUB connector, external control input, AW-CA50T9
RJ45, pan/tilt head control signal output; 10BASE-T straight cable (UTP category 5),
max. 500 meters
RJ45, monitor switching signal output; 10BASE-T straight cable (UTP category 5),
max. 50 meters
RJ45, additional AW-RP400 control signal output; 10BASE-T straight cable (UTP category
5), max. 500 meters
XLR, 4 pins
D-SUB, 15-pin
TALLY: Contact input (Do not apply a voltage in excess of 5V to this connector.)
INCOM: 4-wire system
Master/slave switching, OPERATE control, home position, menu/limit switch, optional
function operations, pan/tilt head selection, lens iris AUTO/MANU/LOCK switching, preset
memory data operations, tracing memory data operations, call
LCD contrast, INCOM level, lens iris, zoom, focus, pan/tilt/rotation, zoom speed,
focus speed, pan speed, tilt speed, rotation speed, menu settings
–20°C to +60°C
30% to 90% (no condensation)
320!85!266 mm
Approx. ?? kg
Colour resembling Munsell 3.5
34 (E)
