Connection
Always use a DC voltage source with 12V output as
power supply. Never try to operate the camera at a dif-
ferent voltage.
The DC source has to supply 140 mA as minimum
charge. Never overcharge the voltage source!
For the image transmission, the camera is connected
with the monitor/TV via a BNC line and for sound trans-
mission via a cinch line. For the voltage supply, the
camera is equipped with a low-voltage jack.

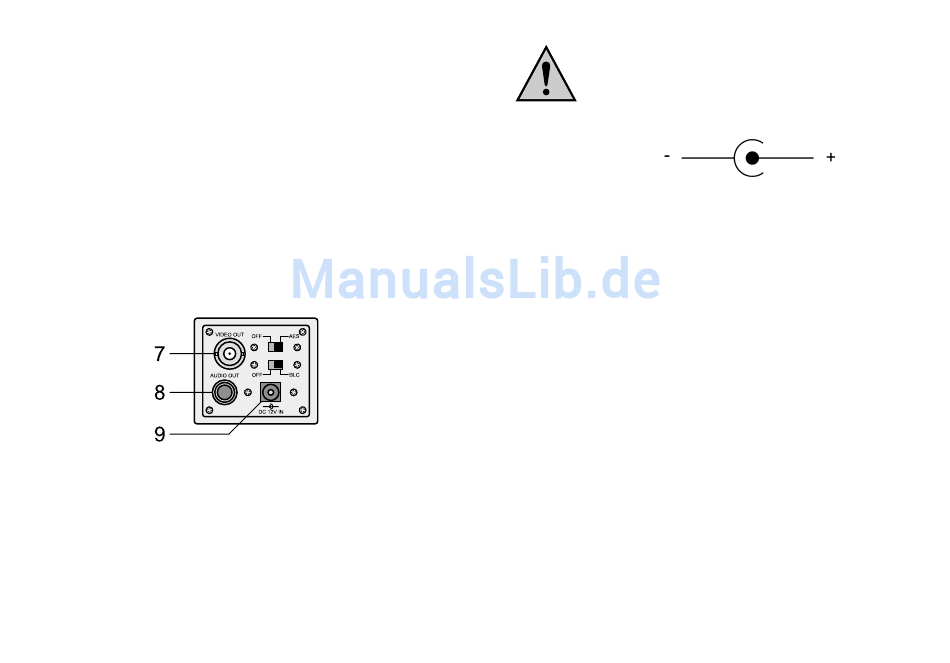

jacks: BNC jack (7):
cinch jack (8):
low-voltage jack (9): voltage supply
Connect the DC voltage source with the low-voltage
jack (9).
26
video signal
audio signal
The DC voltage source has to be switched
off.
plug: 5.5 / 2.1 mm
Please observe correct polarity.
If necessary, verify the polarity with a mea-
suring instrument.
Connect the video input with the BNC jack (7). If your
monitor/TV is only equipped with a cinch input, you
have to use an adapter (BNC to cinch).
For sound transmission, connect the cinch jack (8) with
the audio input of your playback system.
Operation
After connecting the video output, audio output and the
voltage supply, the camera is ready for operation.
Switch on the DC source.
Switch on the monitor/TV and select the input to which
the camera is connected (e.g. AV input on the TV).
27
