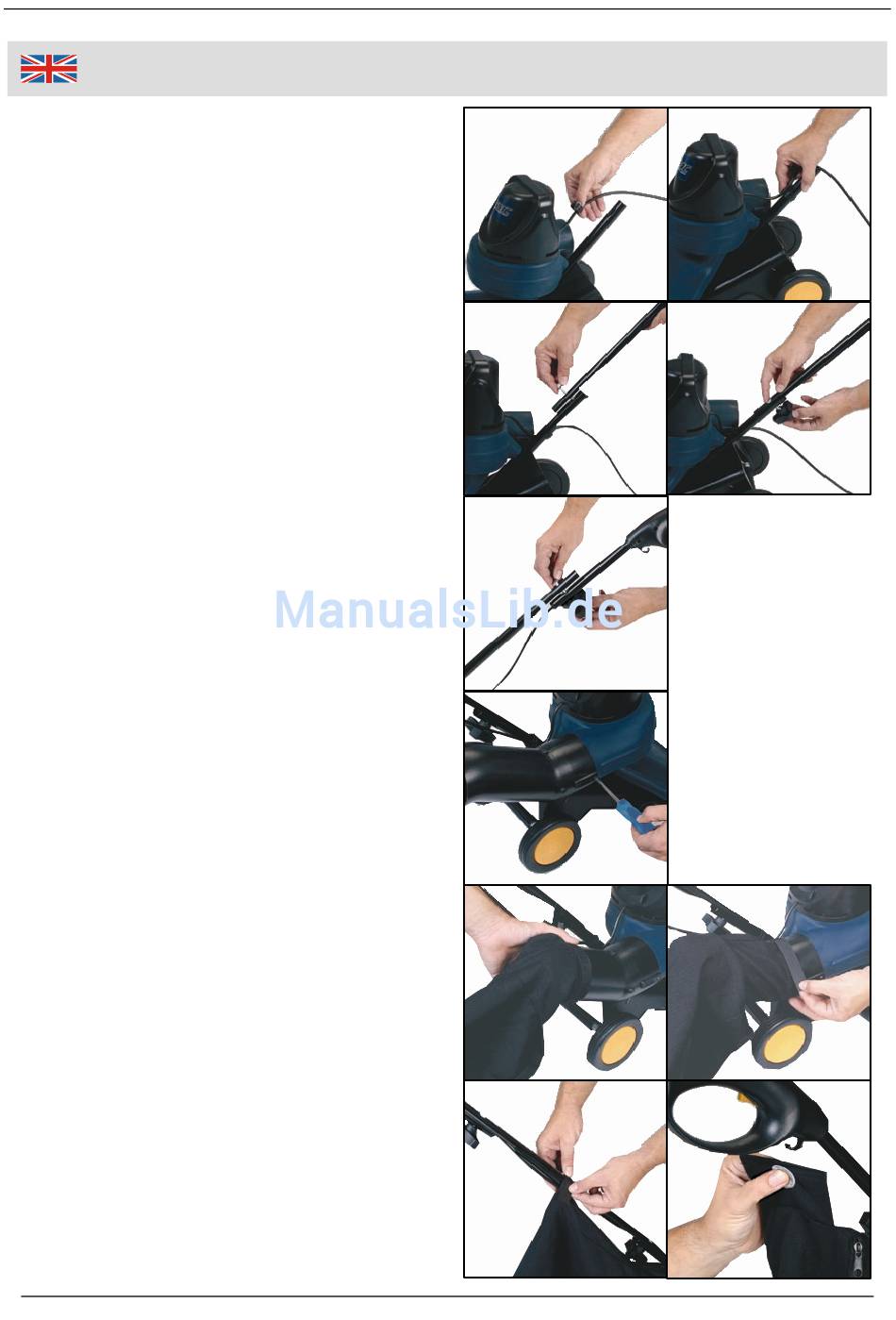

Fitting the Handle
1. Fasten the power cord (15) in the
cable clip (11) and place the clip
on the underside of the link rod
(4).
2. Place the extensions handle (3)
over the link rod (4) and feed the
bolt through the holes from the
top. Fasten the bolt in place using
the plastic fixing knob (5).
3. Now fit the upper section of the
main handle (1) to the link rod
using the bolt and the second
plastic fixing knob.
Fitting the Outlet Pipe
1. Push the attached outlet pipe (14)
onto the main housing outlet
opening.
2. Fasten the pipe in place using the
provided sheet metal screws.
Fastening the Collecting Bag
1. Push the opening of the collecting
bag (7) over the pipe as far as
necessary until the pipe is nearly
completely inside the collecting
bag. There is a hook and loop
fastener on the bag opening.
2. Use this hook and loop fastener to
fasten the bag onto the pipe. Use
a second hook and loop fastener
to fasten the collecting bag to the
extension rod.
3. Hook the metal eyelet in the bag
onto the hook underneath the
handle.
Assembly and Operation
11
