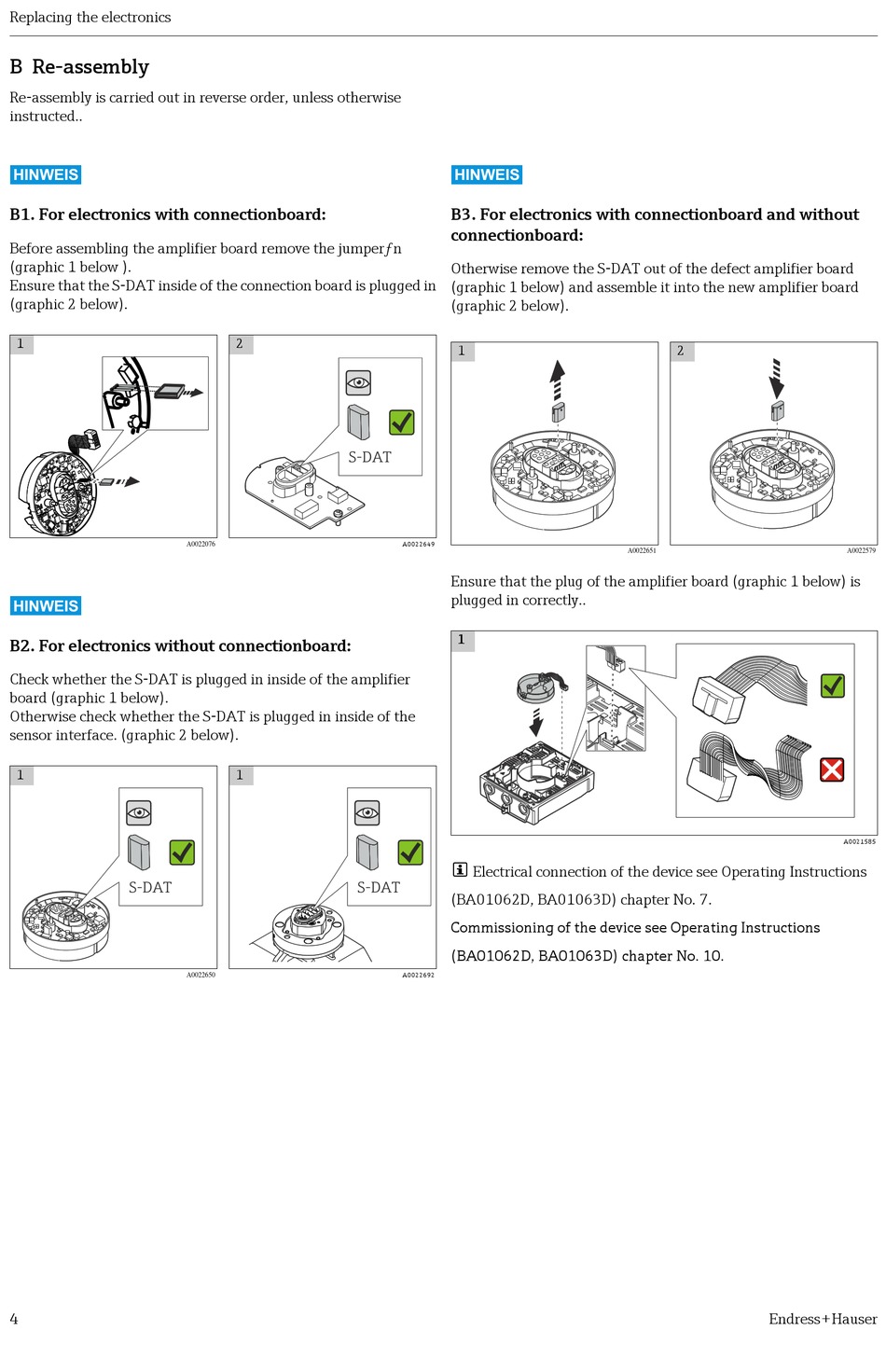

Replacing the electronics
B Re-assembly
Re-assembly is carried out in reverse order, unless otherwise
instructed..
HINWEIS
B1. For electronics with connectionboard:
Before assembling the amplifier board remove the jumperƒn
(graphic 1 below ).
Ensure that the S-DAT inside of the connection board is plugged in
(graphic 2 below).
1
HINWEIS
B2. For electronics without connectionboard:
Check whether the S-DAT is plugged in inside of the amplifier
board (graphic 1 below).
Otherwise check whether the S-DAT is plugged in inside of the
sensor interface. (graphic 2 below).
1
S-DAT
4
2
S-DAT
A0022076
1
A0022650
HINWEIS
B3. For electronics with connectionboard and without
connectionboard:
Otherwise remove the S-DAT out of the defect amplifier board
(graphic 1 below) and assemble it into the new amplifier board
(graphic 2 below).
1
A0022649
Ensure that the plug of the amplifier board (graphic 1 below) is
plugged in correctly..
1

Electrical connection of the device see Operating Instructions
S-DAT
(BA01062D, BA01063D) chapter No. 7.
Commissioning of the device see Operating Instructions
(BA01062D, BA01063D) chapter No. 10.
A0022692
2
A0022651
