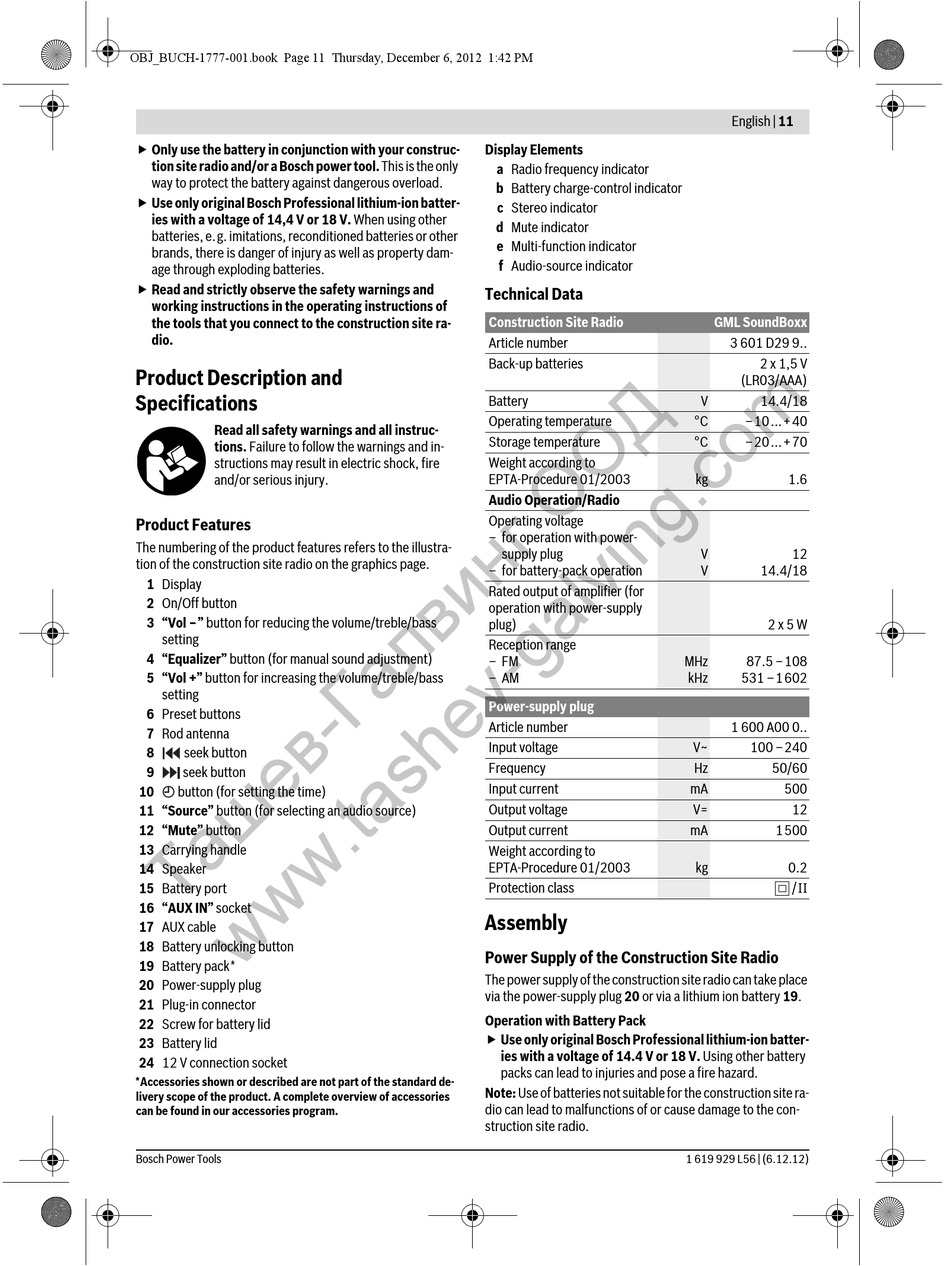

 Only use the battery in conjunction with your construc-
tion site radio and/or a Bosch power tool. This is the only
way to protect the battery against dangerous overload.
 Use only original Bosch Professional lithium-ion batter-
ies with a voltage of 14,4 V or 18 V. When using other
batteries, e.g. imitations, reconditioned batteries or other
brands, there is danger of injury as well as property dam-
age through exploding batteries.
 Read and strictly observe the safety warnings and
working instructions in the operating instructions of
the tools that you connect to the construction site ra-
dio.
Product Description and
Specifications
Read all safety warnings and all instruc-
tions. Failure to follow the warnings and in-
structions may result in electric shock, fire
and/or serious injury.
Product Features
The numbering of the product features refers to the illustra-
tion of the construction site radio on the graphics page.
1 Display
2 On/Off button
3 "Vol –" button for reducing the volume/treble/bass
setting
4 "Equalizer" button (for manual sound adjustment)
5 "Vol +" button for increasing the volume/treble/bass
setting
6 Preset buttons
7 Rod antenna
8
seek button
9
seek button
10
button (for setting the time)
11 "Source" button (for selecting an audio source)
12 "Mute" button
13 Carrying handle
14 Speaker
15 Battery port
16 "AUX IN" socket
17 AUX cable
18 Battery unlocking button
19 Battery pack*
20 Power-supply plug
21 Plug-in connector
22 Screw for battery lid
23 Battery lid
24 12 V connection socket
*Accessories shown or described are not part of the standard de-
livery scope of the product. A complete overview of accessories
can be found in our accessories program.
Bosch Power Tools
Display Elements
a Radio frequency indicator
b Battery charge-control indicator
c Stereo indicator
d Mute indicator
e Multi-function indicator
f Audio-source indicator
Technical Data
Construction Site Radio
Article number
Back-up batteries
Battery
Operating temperature
Storage temperature
Weight according to
EPTA-Procedure 01/2003
Audio Operation/Radio
Operating voltage
– for operation with power-
supply plug
– for battery-pack operation
Rated output of amplifier (for
operation with power-supply
plug)
Reception range
– FM
– AM
Power-supply plug
Article number
Input voltage
Frequency
Input current
Output voltage
Output current
Weight according to
EPTA-Procedure 01/2003
Protection class
Assembly
Power Supply of the Construction Site Radio
The power supply of the construction site radio can take place
via the power-supply plug 20 or via a lithium ion battery 19.
Operation with Battery Pack
 Use only original Bosch Professional lithium-ion batter-
ies with a voltage of 14.4 V or 18 V. Using other battery
packs can lead to injuries and pose a fire hazard.
Note: Use of batteries not suitable for the construction site ra-
dio can lead to malfunctions of or cause damage to the con-
struction site radio.
English | 11
GML SoundBoxx
3 601 D29 9..
2 x 1,5 V
(LR03/AAA)
V 14.4/18
°C –10...+40
°C –20...+70
kg 1.6
V 12
V 14.4/18
2 x 5 W
MHz 87.5 –108
kHz 531 –1602
1 600 A00 0..
V~ 100 –240
Hz 50/60
mA 500
V= 12
mA 1500
kg 0.2
/II
