CH-
VOL+
VOL-
Note:

Please keep the infrared receiver on the device free. Blocking the infrared receiver
can lead to connection problems with the remote control.

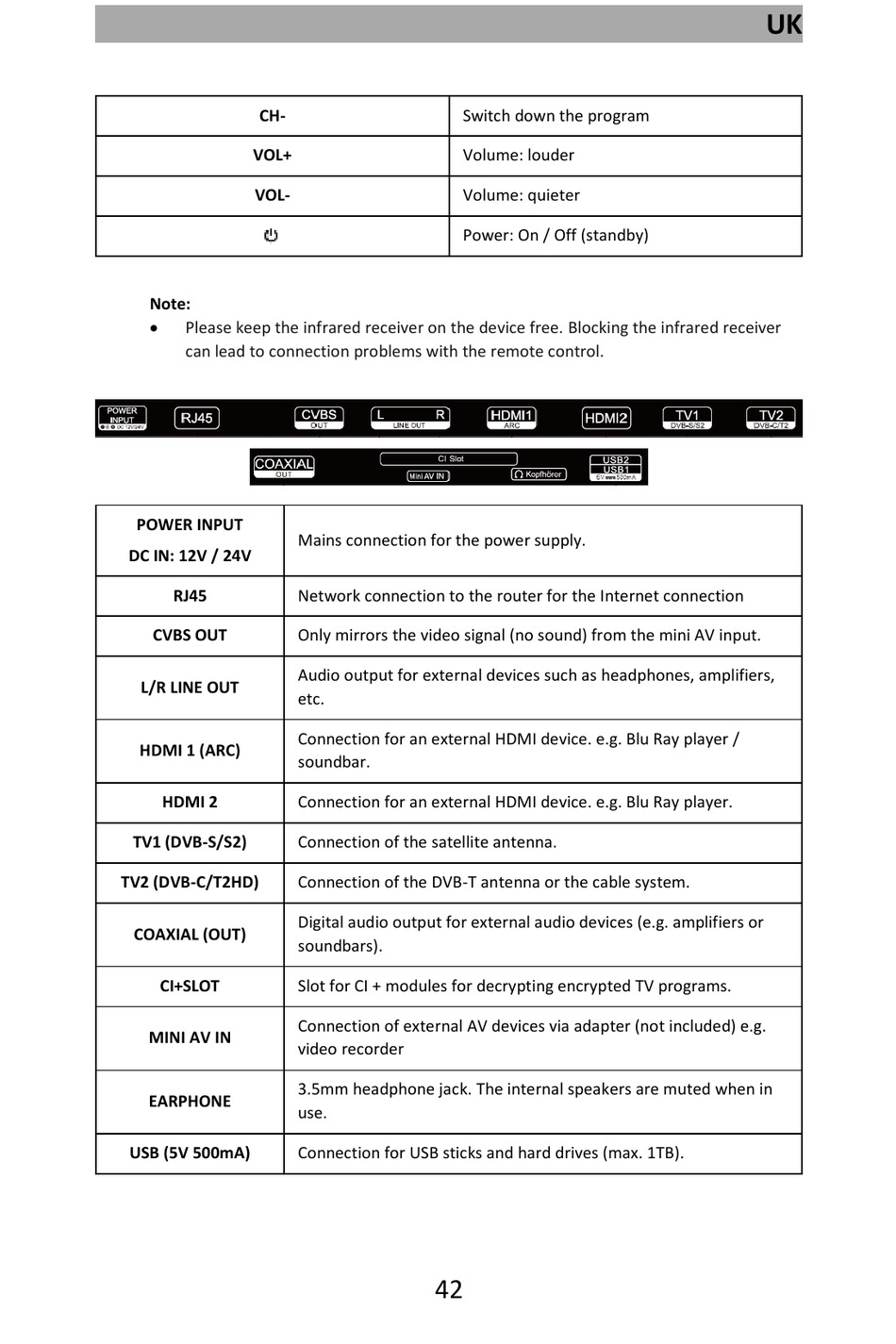

POWER INPUT

DC IN: 12V / 24V
RJ45
CVBS OUT
L/R LINE OUT
HDMI 1 (ARC)
HDMI 2
TV1 (DVB-S/S2)
TV2 (DVB-C/T2HD)
COAXIAL (OUT)
CI+SLOT
MINI AV IN
EARPHONE
USB (5V 500mA)
Switch down the program
Volume: louder
Volume: quieter
Power: On / Off (standby)
Mains connection for the power supply.
Network connection to the router for the Internet connection
Only mirrors the video signal (no sound) from the mini AV input.
Audio output for external devices such as headphones, amplifiers,
etc.
Connection for an external HDMI device. e.g. Blu Ray player /
soundbar.
Connection for an external HDMI device. e.g. Blu Ray player.
Connection of the satellite antenna.
Connection of the DVB-T antenna or the cable system.
Digital audio output for external audio devices (e.g. amplifiers or
soundbars).
Slot for CI + modules for decrypting encrypted TV programs.
Connection of external AV devices via adapter (not included) e.g.
video recorder
3.5mm headphone jack. The internal speakers are muted when in
use.
Connection for USB sticks and hard drives (max. 1TB).
