How to remove the battery pack for battery disposal only
(To be carried out by an authorized technician)
Recommended tools (not included):
Philips screwdriver and small slot screwdriver
1. Use the screwdriver to unfasten the 2 side screws
to release the front portion and then detach it from
the main body.
2. Unfasten the 4 screws as shown and then remove
the front chamber to expose the enclosure inside.
3. Unfasten the 2 screws as shown to release the
module. Move it to the opening of the chamber
4. Detach all 4 cable connectors by pressing on
the clip and detach it simultaneously. Remove
the whole module out of the chamber to expose
the battery. Remove the battery and wrap its
connector end with insulating tape in order to
avoid short circuit caused by the contact of both
wire terminals.
TROUBLESHOOTING
Problem Possible Cause Solution
Electric vacuum does Battery is drained Charge the battery again.
not capture the debris Impeller is jammed Power off the electric vacuum and inspect the middle gap of the electric vacuum to see
if the impeller is jammed by larger debris. If possible, use a small tool to remove it with
intensive care & caution. If necessary, contact your dealer for further instructions.
WARNING! Make sure the electric vacuum is powered
off when the unit is being serviced.
Impeller is broken Contact an authorized dealer regarding replacements.
filter bag / filter cage is full Clean the filter bag / filter cage.
Debris escapes from the One-way valve is One-way valve works like a door to prevent the debris from escaping from the filter.
filter damaged Contact dealer for replacement part and instructions.
filter bag / filter cage is Replace with a new filter bag / filter cage.
damaged Contact an authorized dealer regarding replacements.
Electric vacuum cannot Battery is damaged Contact an authorized dealer regarding replacements.
WARNING! DO NOT open the electric vacuum and replace
be charged / recharged
the battery by yourself. This could result in severe or fatal
injuries, as well as voiding the warranty.
USB cable is damaged Replace with a new USB cable.
USB charger is out of order Replace with a new USB charger.
Charging time is longer Stained charging pins The stains can be removed by using a cotton bud soaked with juice of lemon or vinegar to
than advertised clean the areas around the charging pins.
Pivoting suction head Wheel is jammed Clean out the debris from the wheel.
(if provided) does not Note: Do not attempt to take out the wheels.
move smoothly
Environmental Programmes, WEEE European Directive
Please respect the European Union regulations and help to protect the environment.
Return non-working electrical equipment to a facility appointed by your municipality that properly
recycles electrical and electronic equipment. Do not dispose them in unsorted waste bins.
For items containing removable batteries, remove batteries before disposing of the product.
© 2021 BWT Holding GmbH
All rights reserved. No part of this document may be reproduced or transmitted
in any form or by any means, electronic, mechanical, photocopying, recording,
or otherwise, without prior written permission of BWT Holding GmbH.
bwt.com
MAINTENANCE & CLEANING
If soft copy of this instruction manual is required,
please contact our customer
SAVE THESE INSTRUCTIONS
BWT Walter-Simmer-Str. 4
21011003
5310 Mondsee - Austria
2021/10 : A
BC LINE

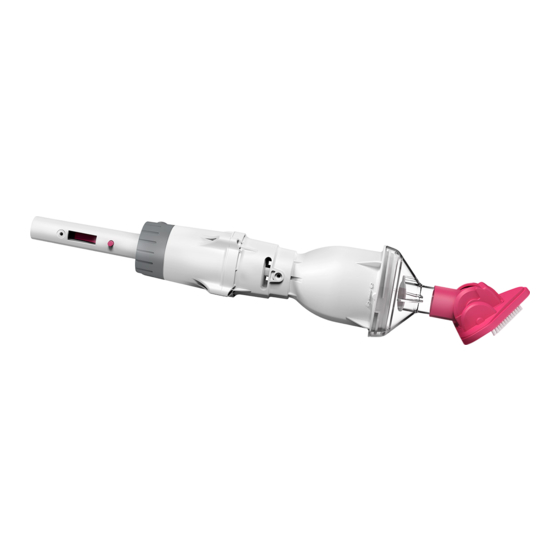

BWT Rechargeable Pool & Spa Vacuum
USER MANUAL
EN
BC02
SAFETY WARNINGS & INSTRUCTIONS
Information contained in this Instruction Manual will help you operate the item safely, protect
yourself and others from hazards, and prevent damage to the device and other property.
WARNING!
- This is not a TOY. Children should be kept out of reach from this electric vacuum and its accessories.
- Never allow children to operate this product. Children shall not play with the product.
- Cleaning and user maintenance must not be carried out by children.
- You should not operate this electric vacuum when people/pets are present in the water.
- This electric vacuum is not intended for use by someone with reduced physical, sensory or mental capabilities, or a lack of experience and knowledge
unless they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Detachable supply unit (external adaptor).
- For the purposes of recharging the battery, only use the detachable supply unit (USB charger model number: HNAA050100E1 / HNAC050100B1)
that provided with this electric vacuum to charge the battery.
- Make sure the electric vacuum is fully immersed in water before initiating operation. The minimum water level required to operate the device must
be above the switching knob of the electric vacuum when it is held vertically. The product is only intended to be used underwater in a pool or spa;
any other use will void the warranty.
- Maximum operating depth in water is 3 meters (9.8 ft).
- Maximum water temperature: 5˚C (41˚F) – 42˚C (107.6˚F)
- Do not use this electric vacuum if any damage is detected.
- Replace damaged parts as soon as possible. Only use parts certified by the distributor or manufacturer.
- Make sure to connect USB charger to the power source through a residual current device (RCD)/ a ground fault circuit interrupter (GFCI).
If in doubt, consult a qualified, professional electrician.
- Disconnect the electric vacuum from the supply mains before carrying out any maintenance, such as cleaning the filter.
- The battery installed is a rechargeable Li-ion battery pack. Do not attempt to replace it yourself.
- This electric vacuum should only be charged with the included USB cable.
- DO NOT handle the electric vacuum while it is charging with wet limbs and without shoes.
- You should not operate this electric vacuum while the pool is being used.
- DO NOT use this electric vacuum without an intact filter bag / filter cage in place, as the warranty will be voided as a result.
- Suction entrapment hazard: This electric vacuum generates suction. Do not allow hair, body, or any loose parts of your clothing to be in the
suction range of the electric vacuum during its operation.
- Never insert body parts, clothing, or other objects into the openings and moving parts of the electric vacuum.
- DO NOT use this electric vacuum to pick up any toxic substances, flammable, or combustible liquids such as gasoline, nor in the presence of
explosive or flammable fumes.
- Under no circumstances should you attempt to disassemble the electric vacuum and replace the impeller, motor, and battery by yourself.
- Never insert any object to make contact with the impeller.
- This electric vacuum shall not be used by children.
- The battery must be removed from the electric vacuum before it is scrapped.
- This electric vacuum contains battery that are only removed by skilled persons.
- The electric vacuum must be disconnected from the supply mains when the battery is being removed.
- For the battery disposal detail, refer to the section "Battery Disposal" in this manual
- The battery is to be disposed safely in accordance with local ordinances or regulations.
- Electric vacuum's battery is a maintenance-free, rechargeable lithium-ion battery pack, which must be disposed properly. Recycling is required;
please contact your local authorities for more information.
CAUTION!
- DO NOT attempt to use the electric vacuum to clean anything other than your pool / spa.
- Use only original accessories delivered with this product.
- DO NOT use this electric vacuum right after pool-shocking. It is recommended to first let the pool circulate for at least 24-48 hours.
- Do not use this electric vacuum with another electric vacuum/cleaner simultaneously.
- Avoid picking up hard, sharp objects with this product. They may damage the electric vacuum and filter.
- Exercise caution when cleaning pool stairs.
- To avoid damaging the USB charging cable, do not carry the electric vacuum by the cable or tug the USB cable to disconnect it from
the power source and product.
- Charging must be done indoors, in a well-ventilated area away from sunlight, children, heat, ignition sources, and within an ambient
temperature range of 5˚C (41˚F) and 35˚C (95˚F).
service by email.
- DO NOT leave the electric vacuum plugged in to the charger for over 10 hours.
- If the electric vacuum will not be used for an extended period, make sure it's switched off and use a damp cloth to clean and dry it
and its accessories. Make sure to charge the electric vacuum to about 30% to 50% of the battery capacity before it is stored. Store
in a well-ventilated area away from sunlight, heat, ignition sources, pool chemicals, and children. Recharge the electric vacuum
every three months.
Above warnings and cautions are not intended to incorporate all possible instances for risks and / or severe injuries.
Pool / spa owners should always exercise extra caution and common sense when utilizing the product.
Made in China
