SG10
28

Commissioning






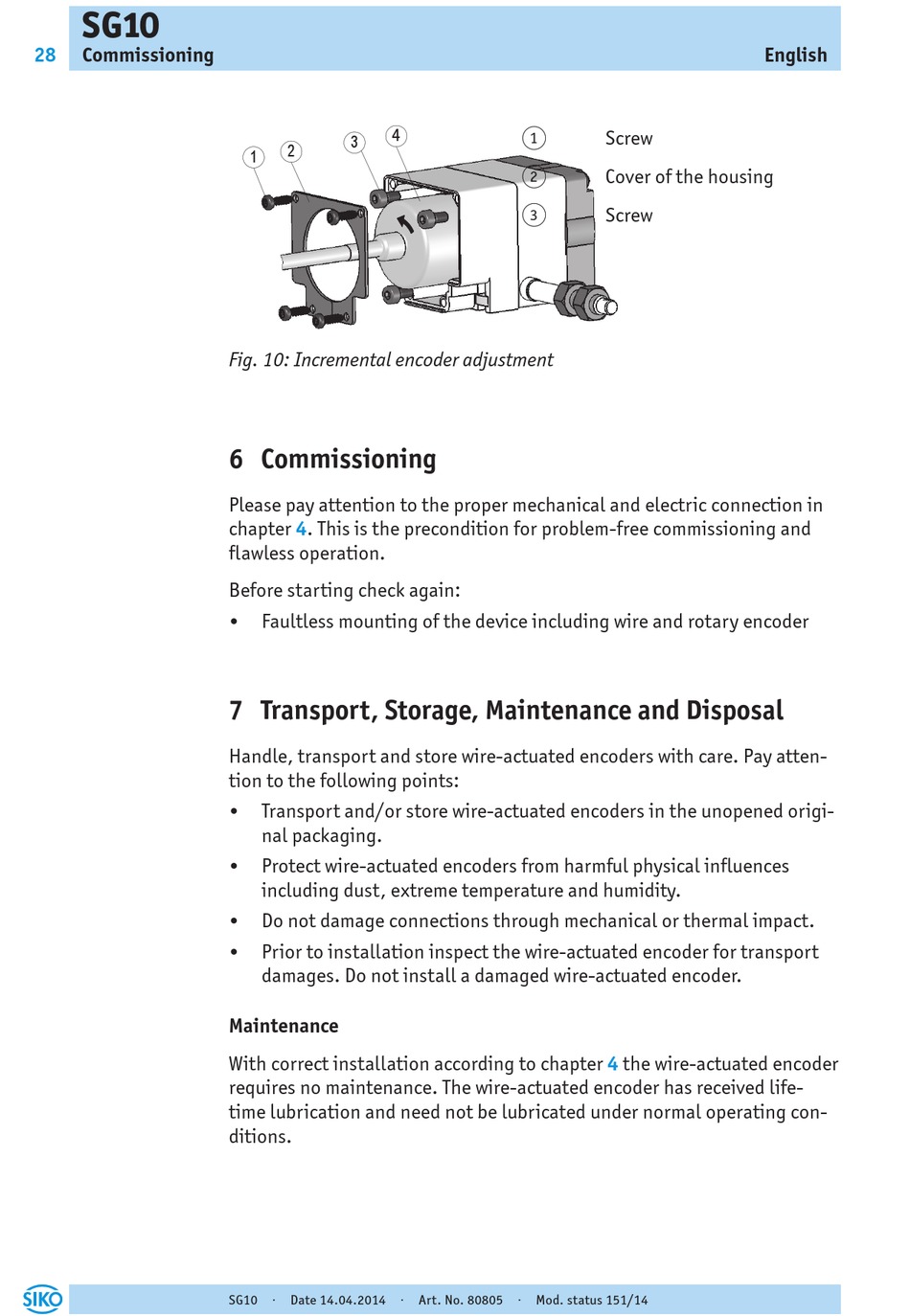

Fig. 10: Incremental encoder adjustment
6 Commissioning
Please pay attention to the proper mechanical and electric connection in
chapter 4. This is the precondition for problem-free commissioning and
flawless operation.
Before starting check again:
• Faultless mounting of the device including wire and rotary encoder

7 Transport, Storage, Maintenance and Disposal

Handle, transport and store wire-actuated encoders with care. Pay atten-
tion to the following points:
• Transport and/or store wire-actuated encoders in the unopened origi-
nal packaging.
• Protect wire-actuated encoders from harmful physical influences
including dust, extreme temperature and humidity.
• Do not damage connections through mechanical or thermal impact.
• Prior to installation inspect the wire-actuated encoder for transport
damages. Do not install a damaged wire-actuated encoder.
Maintenance
With correct installation according to chapter
requires no maintenance. The wire-actuated encoder has received life-
time lubrication and need not be lubricated under normal operating con-
ditions.
SG10 · Date 14.04.2014 · Art. No. 80805 · Mod. status 151/14
Screw
1
Cover of the housing
2
Screw
3
4
the wire-actuated encoder
