7.2.6

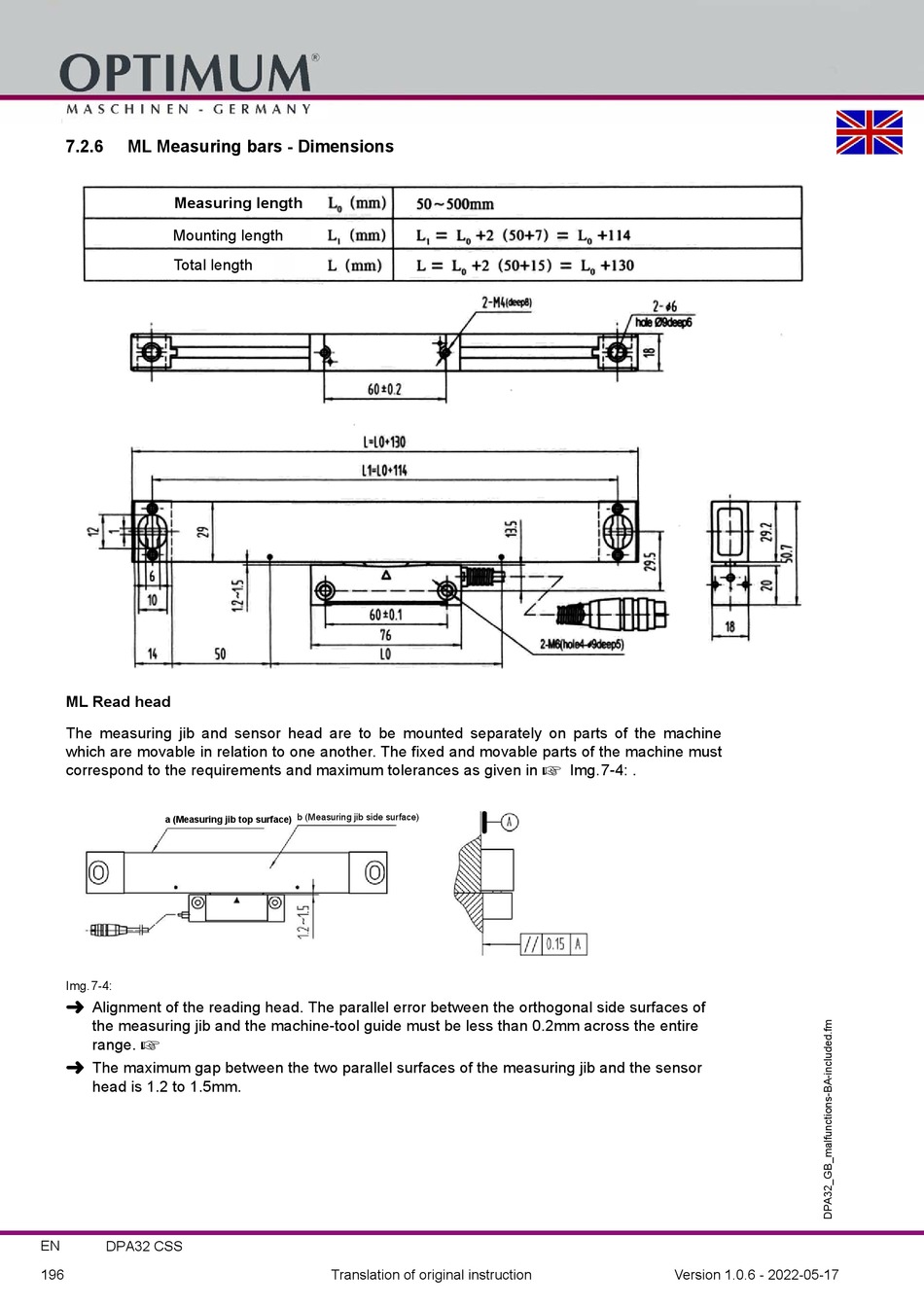

ML Measuring bars - Dimensions

Measuring length

Mounting length
Total length
ML Read head
The measuring jib and sensor head are to be mounted separately on parts of the machine
which are movable in relation to one another. The fixed and movable parts of the machine must
correspond to the requirements and maximum tolerances as given in
a (Measuring jib top surface) b (Measuring jib side surface)
Img.7-4:

Alignment of the reading head. The parallel error between the orthogonal side surfaces of
the measuring jib and the machine-tool guide must be less than 0.2mm across the entire

range.

The maximum gap between the two parallel surfaces of the measuring jib and the sensor
head is 1.2 to 1.5mm.
