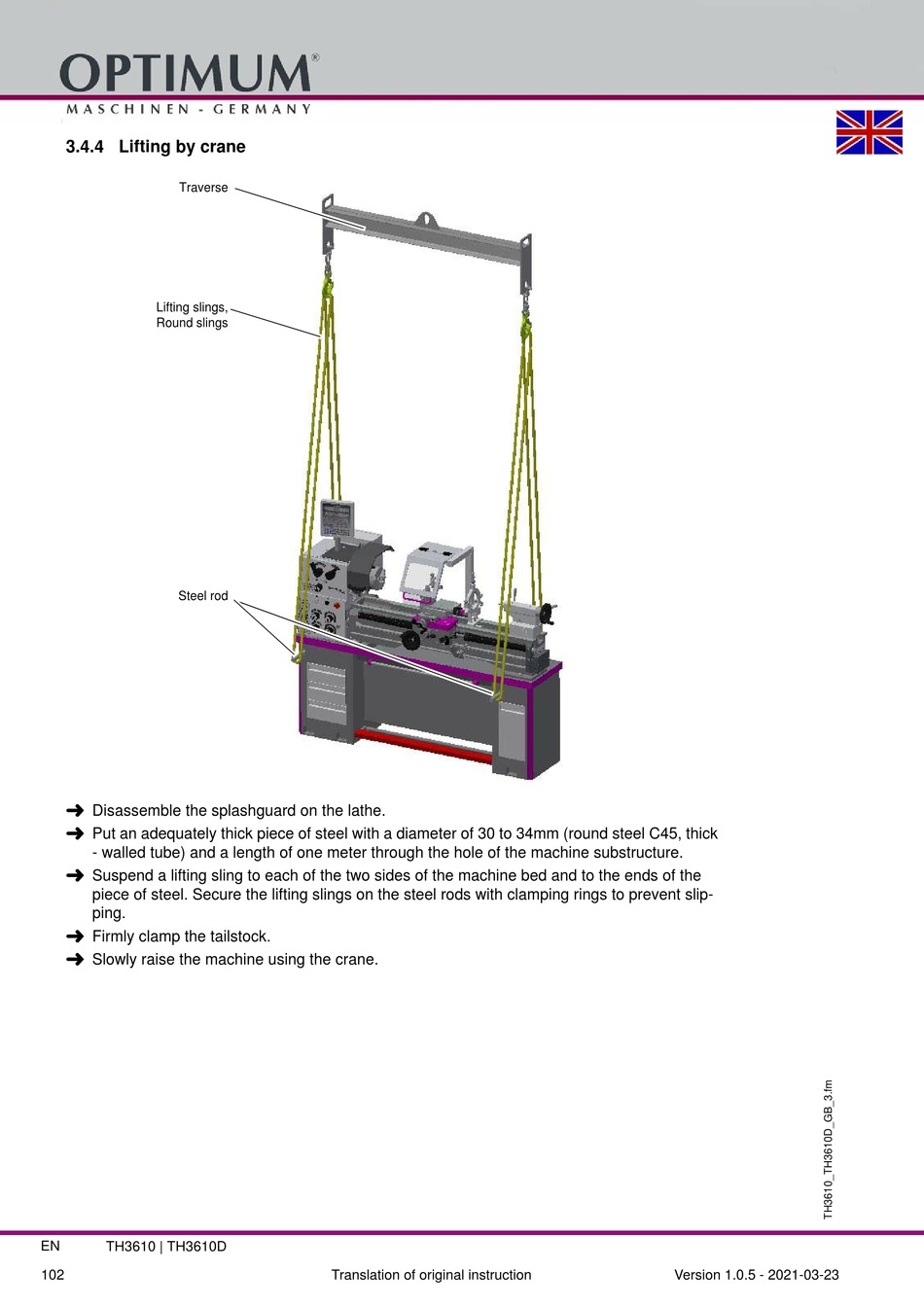

3.4.4 Lifting by crane

Traverse
Lifting slings,
Round slings
Steel rod

Disassemble the splashguard on the lathe.

Put an adequately thick piece of steel with a diameter of 30 to 34mm (round steel C45, thick
- walled tube) and a length of one meter through the hole of the machine substructure.

Suspend a lifting sling to each of the two sides of the machine bed and to the ends of the
piece of steel. Secure the lifting slings on the steel rods with clamping rings to prevent slip-
ping.

Firmly clamp the tailstock.

Slowly raise the machine using the crane.
