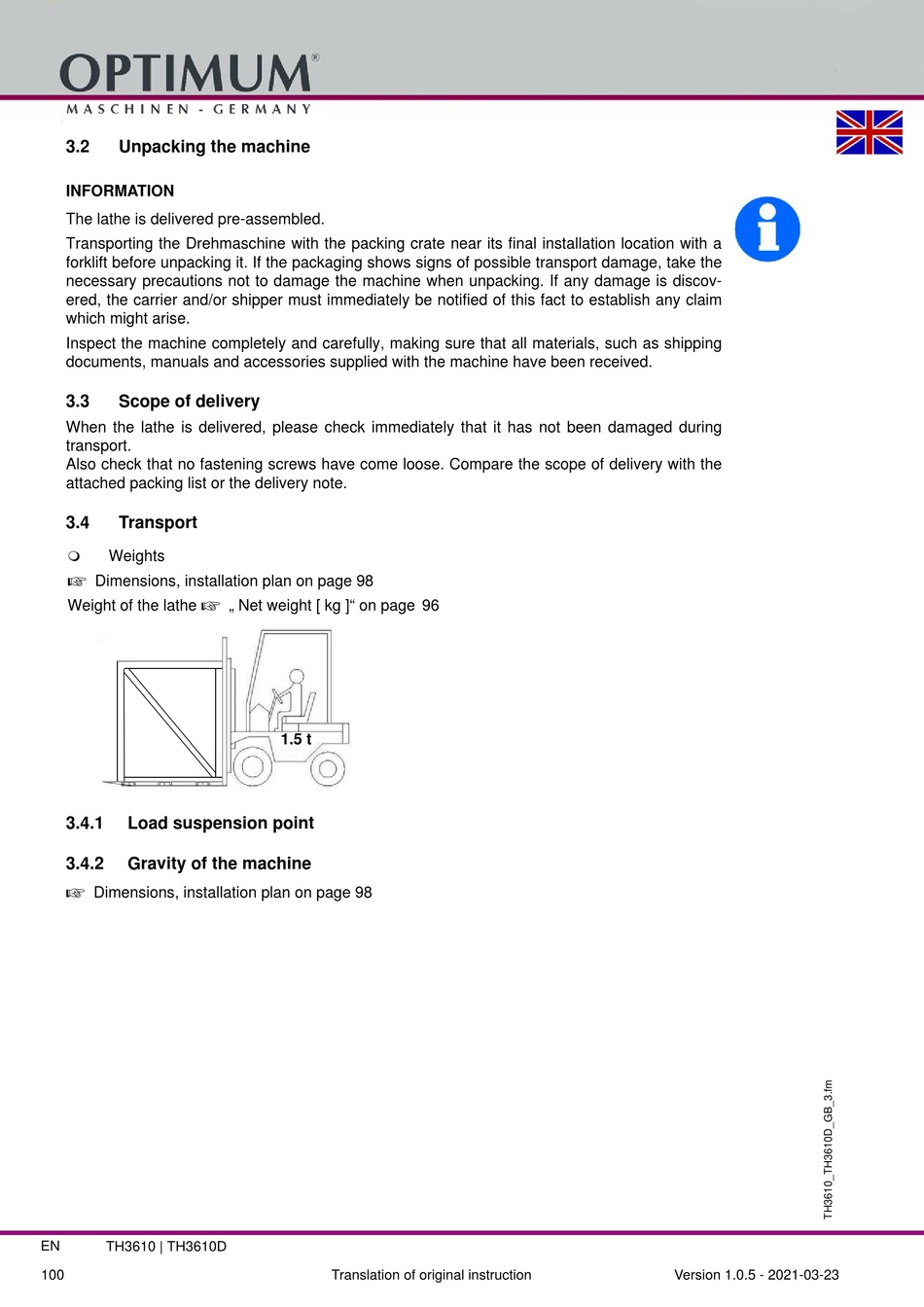

3.2

Unpacking the machine

INFORMATION
The lathe is delivered pre-assembled.
Transporting the Drehmaschine with the packing crate near its final installation location with a
forklift before unpacking it. If the packaging shows signs of possible transport damage, take the
necessary precautions not to damage the machine when unpacking. If any damage is discov-
ered, the carrier and/or shipper must immediately be notified of this fact to establish any claim
which might arise.
Inspect the machine completely and carefully, making sure that all materials, such as shipping
documents, manuals and accessories supplied with the machine have been received.
3.3

Scope of delivery

When the lathe is delivered, please check immediately that it has not been damaged during

transport.

Also check that no fastening screws have come loose. Compare the scope of delivery with the
attached packing list or the delivery note.
3.4 Transport

Weights

Dimensions, installation plan on page 98

Weight of the lathe
3.4.1

Load suspension point

3.4.2

Gravity of the machine


Dimensions, installation plan on page 98
EN TH3610 | TH3610D
100
„ Net weight [ kg ]" on page 96
1.5 t
