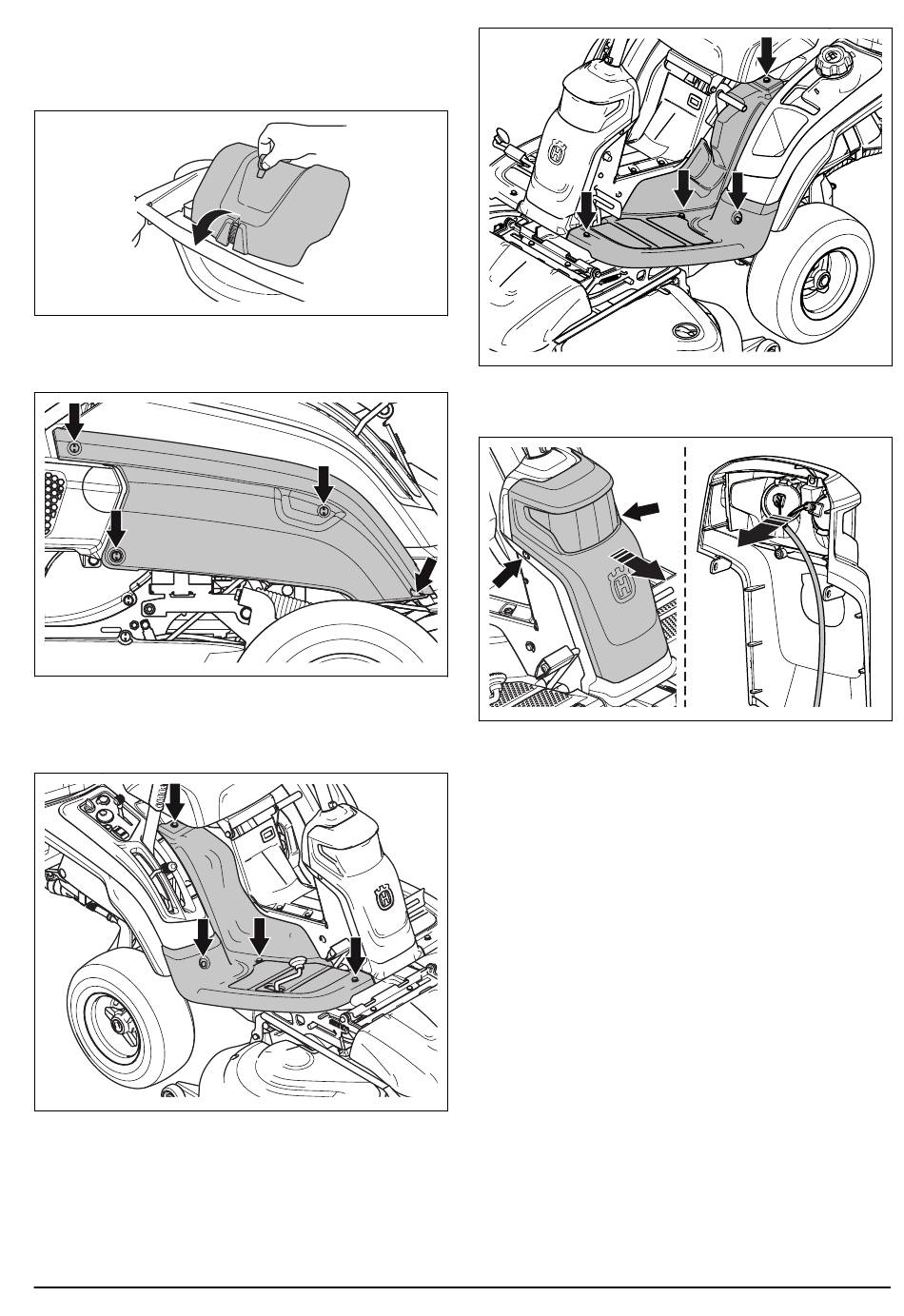

Front cover
Release the clip on the front cover with the tool attached
to the ignition key, and lift off the cover.
Side cover
Remove the 4 screws and lift off the cover.
Right fender
Turn the knob on the reverse pedal to remove it.
Remove the 4 screws and lift off the cover.
Left fender
Remove the 4 screws and lift off the cover.
63 - 005 - 03.02.2017
To replace a broken lamp
1. Remove the 2 screws on the cover and lift it off.
2. Disconnect the cables from the broken lamp.
3. Replace the lamp and connect the cables to the new
lamp. Use the type of lamp as given in
data on page 34 .
4. Attach the cover and tighten the screws.
To examine the steering wires
The tension of the steering wires can decrease after a
period of time. This causes the adjustment of the
steering to change.
Examine and adjust the steering as follows:
1. The steering wires are correctly tightened if you can
manually move them 5 mm up or down in the groove
on the steering collar.
