the test when the cylinder turns at drain speed. Wash speed is too slow. Extract speed will
cause deterioration of the brake components that is not necessary.
3. Look at the cylinder through the door glass or site glass.
4. Push the
Emergency Stop
appropriate for the type of machine:
Divided cylinder and Staph Guard
Open cylinder—10 seconds
Note 1: On most machines, there is no manual output for drain speed. If your machine has a drain speed
output in Manual Mode, use it instead of a formula.
If the cylinder does not stop in the given time, repairs are necessary. Speak to your dealer or
Milnor. This is not routine maintenance.
CAUTION 34 : Risk of damage—Brake components will wear out quickly if the operator
misuses it to stop the machine during automatic operation.
• During operation, always permit the cylinder to stop automatically.
Note 2: In automatic operation, the drive motor, inverter, and resistors stop the cylinder. If the cylinder
does not stop in the correct length of time, an error message occurs. If this condition continues, repairs
are necessary. Speak to your dealer or Milnor. This is not routine maintenance.

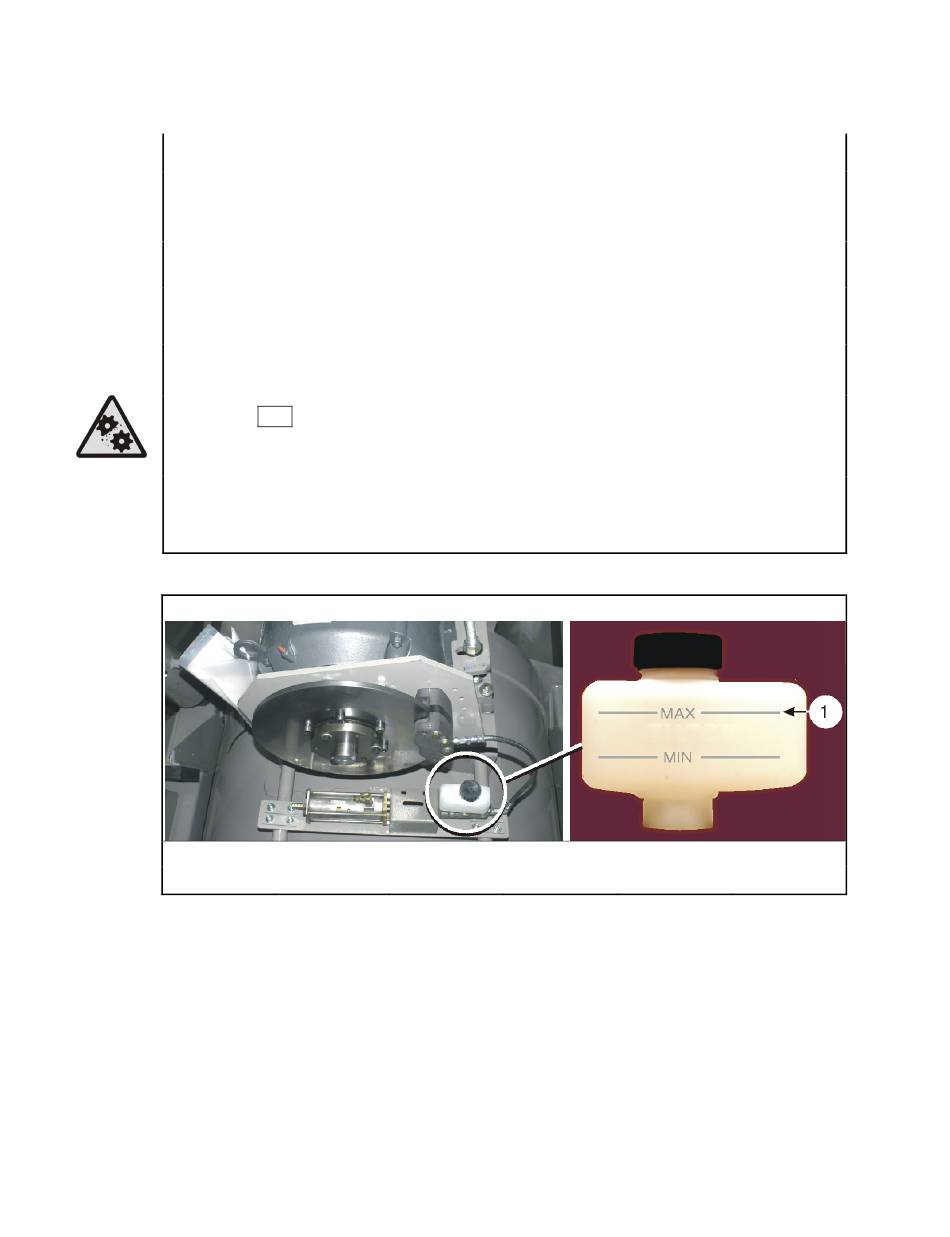

Figure 17: Example of Disk Brake. Your machine can look different.
1. Correct fluid level. You can add fluid to this level when the brake is applied or not applied.
.
switch ( ). Confirm that the cylinder stops in the time
0
®
—4 seconds.
Views of Brake Assembly and Reservoir
Legend
