3.10

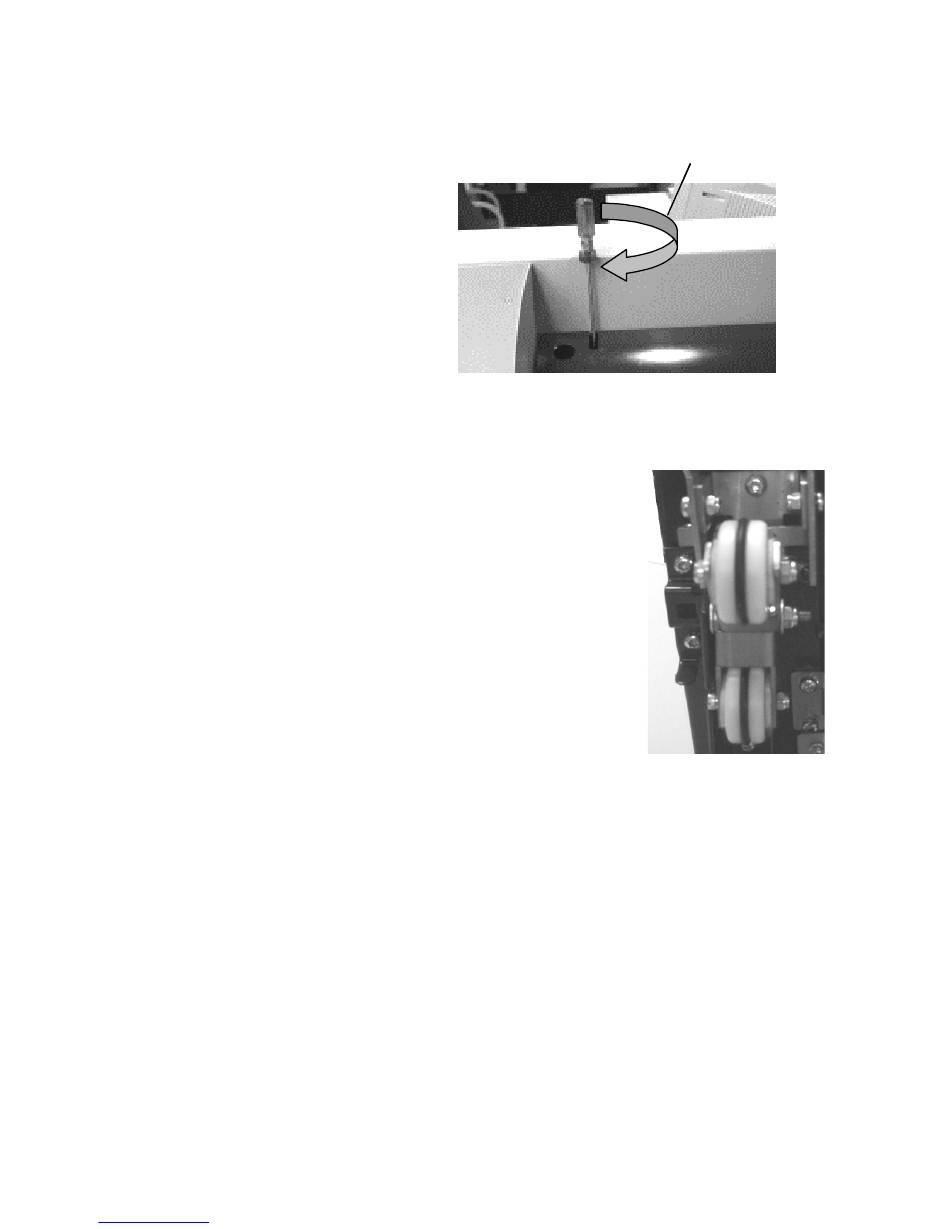

Separation Stone Adjustment

For this procedure you will need a 5mm
Allen Wrench. For the safety of the
Operator and to prevent damage to the
machine, make sure the machine is
unplugged when performing this step. To
raise the stones up and away from the
feedplate, turn the Allen Head Screws,
located at the right-hand end of the Track
Cover, Clockwise as viewed from above.
Likewise, the stones may be lowered by
turning the adjustment screws Counter-
Clockwise. Raising Separation Stones.
3.11

Track Wheels

Also new to the 3063 and 3073 is an improved Track Wheel with
rubber insert. This insert reduces rolling friction to the wheel
while increasing grip on mail. Because of this, the Track Wheels
should have an extended life over previous models. However,
the user should periodically inspect the track wheels for wear or
noise (The rollers must roll freely and quietly.) If the wheels do
not roll freely, it will be necessary to clean the wheels and
change the felt pieces on both sides. It should only be necessary
to change wheels or felt pieces under continued excessive loads.
3.12

Reverse Flow Conveyor (optional)

The reverse flow conveyor transports the opened envelopes back underneath the
operator's area, for the operator to collect. The reverse flow conveyor can work in two
ways. Machines with optional counter use the photo sensor, located inside Track Cover, to
control the conveyor. Machines without optional counter use a mechanical switch to
control the conveyor. Both methods use the mail to trigger the conveyor, so that the
conveyor only runs when mail is being fed through the Cutter.
