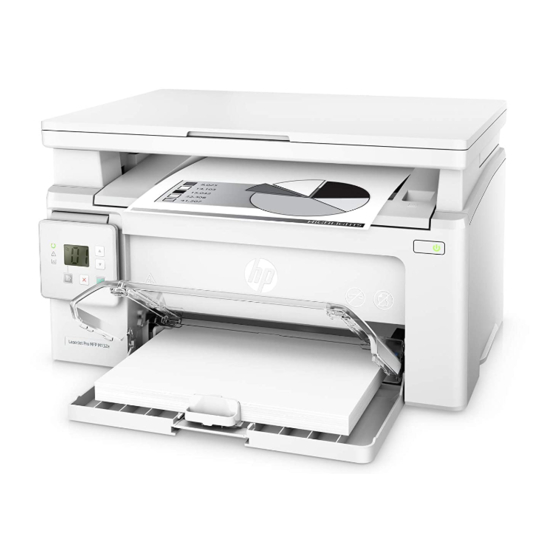

HP LaserJet Pro M129 Handbuch Für Die Inbetriebnahme

LaserJet Pro MFP M129-M132,
LaserJet Ultra MFP M133-M134
Getting Started Guide
IMPORTANT:
Steps 1 - 3
Follow on
the printer hardware setup
poster, then continue
with Step 4.
5. Select a connection method
USB connection directly between the
printer and the computer
Use an A-to-B type USB cable.
Windows
1. Do not connect the USB cable before installing the software. The
installation process prompts to connect the cable at the appropriate
time. If the cable is already connected, restart the printer when
installation prompts to connect the cable.
2. Continue to "6. Download and install the software."
OS X
1. Connect the USB cable between the computer and the printer before
installing the software.
2. Continue to "6. Download and install the software."
Wired (Ethernet) network connection
(optional)
Use a standard network cable.
1. Connect the network cable to the printer and to the network. Wait a few
minutes for the printer to acquire a network address.
2. Continue to "6. Download and install the software."
www.hp.com/support/ljM129MFP
4. Set up the control panel
At the printer control panel, check the display status before beginning software installation.
See the printer user guide for information on how to manually configure the
IP address www.hp.com/support/ljM129MFP.
1
www.register.hp.com
Wireless network connection
(wireless models only)
Touchscreen control panels
1. To connect the printer to a wireless (Wi-Fi) network, on the printer control
panel, touch the Wireless button.
2. Touch Wireless Menu, and then touch Wireless Setup Wizard. Select the
network name from the SSID list, or enter the network name if it is not
listed.
3. Use the keyboard to enter the passphrase, and then touch the OK button.
4. Wait while the printer establishes a network connection.
5. On the printer control panel, touch the Network button. If an IP address
is listed, the network connection has been established. If not, wait a few
more minutes and try again. Note the IP address for use during software
installation. Example IP address: 192.168.0.1
2-line/LED control panels
1. To connect the printer to a wireless (Wi-Fi) network, make sure that the
printer, access point, and computer are turned on and that the computer is
connected to the wireless network.
2. A USB cable might be required during software installation.
3. To print from a computer, continue with
software." To print from a phone or tablet only, continue with
printing (optional)."
Manually configure the IP address
English................. 1
Français ............... 5
Deutsch ............. 10
Italiano .............. 15
Dansk ................ 20
.................. 24
"6. Download and install the
"7. Mobile
