12.1.2

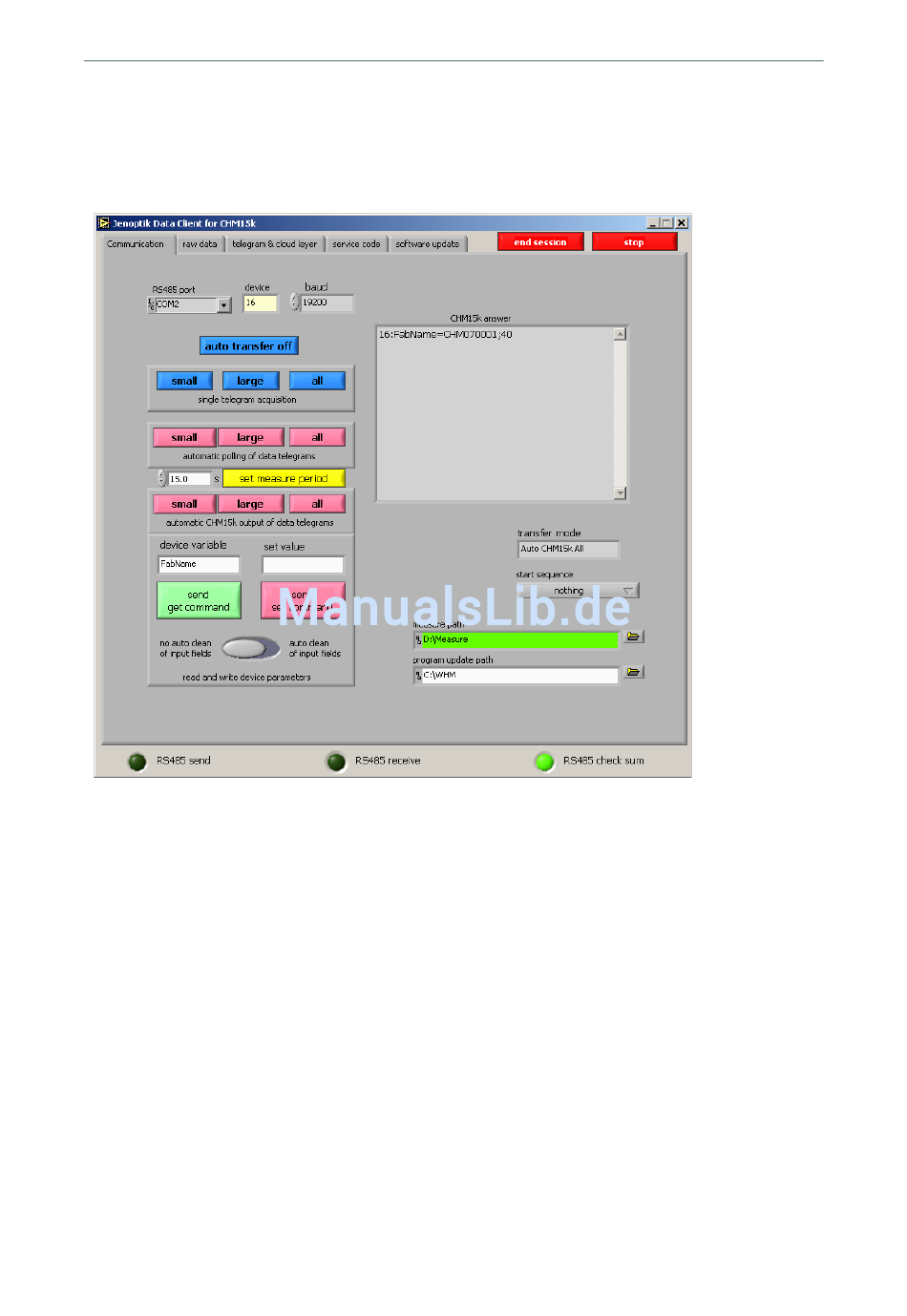

Communication

This is the main page where all actions (except Software update) are carried out.
Remaining four pages serve merely the monitoring of the measuring data as well
as service information.
All control elements are placed on the left side of the page. Responses of
the CHM15k can be read unfiltered in the display box "CHM15k answer".
The raw data part of raw data telegrams is not displayed here, because
these data would be too much for this box.
Details of control elements. The top row encloses the interface parameters:
– RS485 port:: Here the RS232 port which is connected to the RS232-485
adaptor is displayed. It can only be changed by the initial dialog (see
above).
– device:
– The name of the connected CHM15k device.
– baud: With this electoral switch the baud rates 1200, 2400, 4800, 9600,
19600 or 38400 bauds can be selected. Note, that the factory default
value is 9600 baud.
