Synchronous Torque Motor DST2-135-400

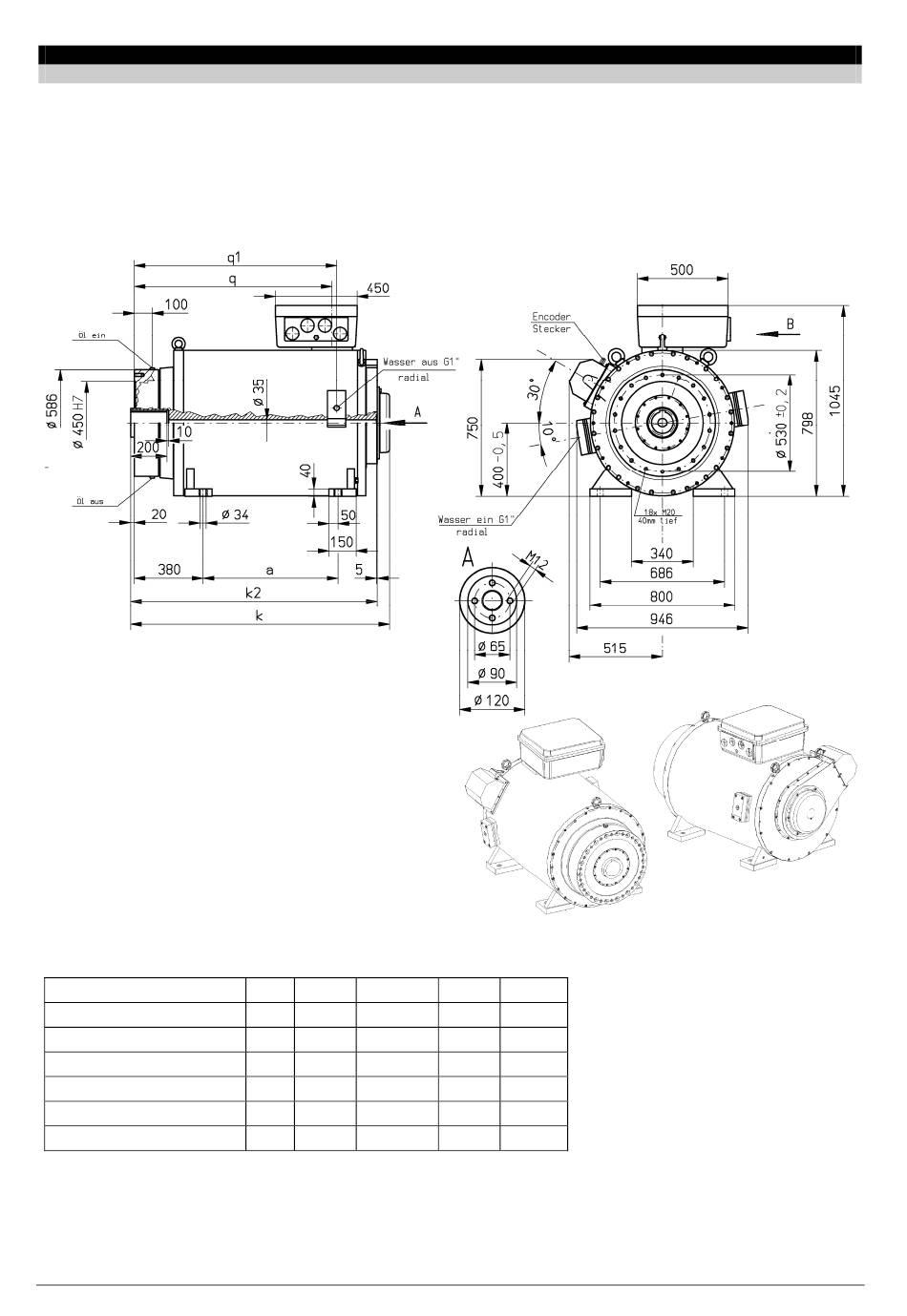

4.5.3. DST2-400 – Thrust bearing model
Type of construction IM B34
DST2-400KO
DST2-400KM
DST2-400MO
DST2-400LO
DST2-400BO
DST2-400XY
The terminal box dimensions are explained on page 56. The belt ratio of the encoder connection is 1:5.
Subject to technical modifications
52
k k2 q
1130 1062 792
1180 1112 842
1230 1162 892
1330 1262 992
1430 1362 1092
1580 1512 1242
01/2013
q1 a
818 445
868 495
918 545
1018 645
1118 745
1268 895
DST2-135-400
