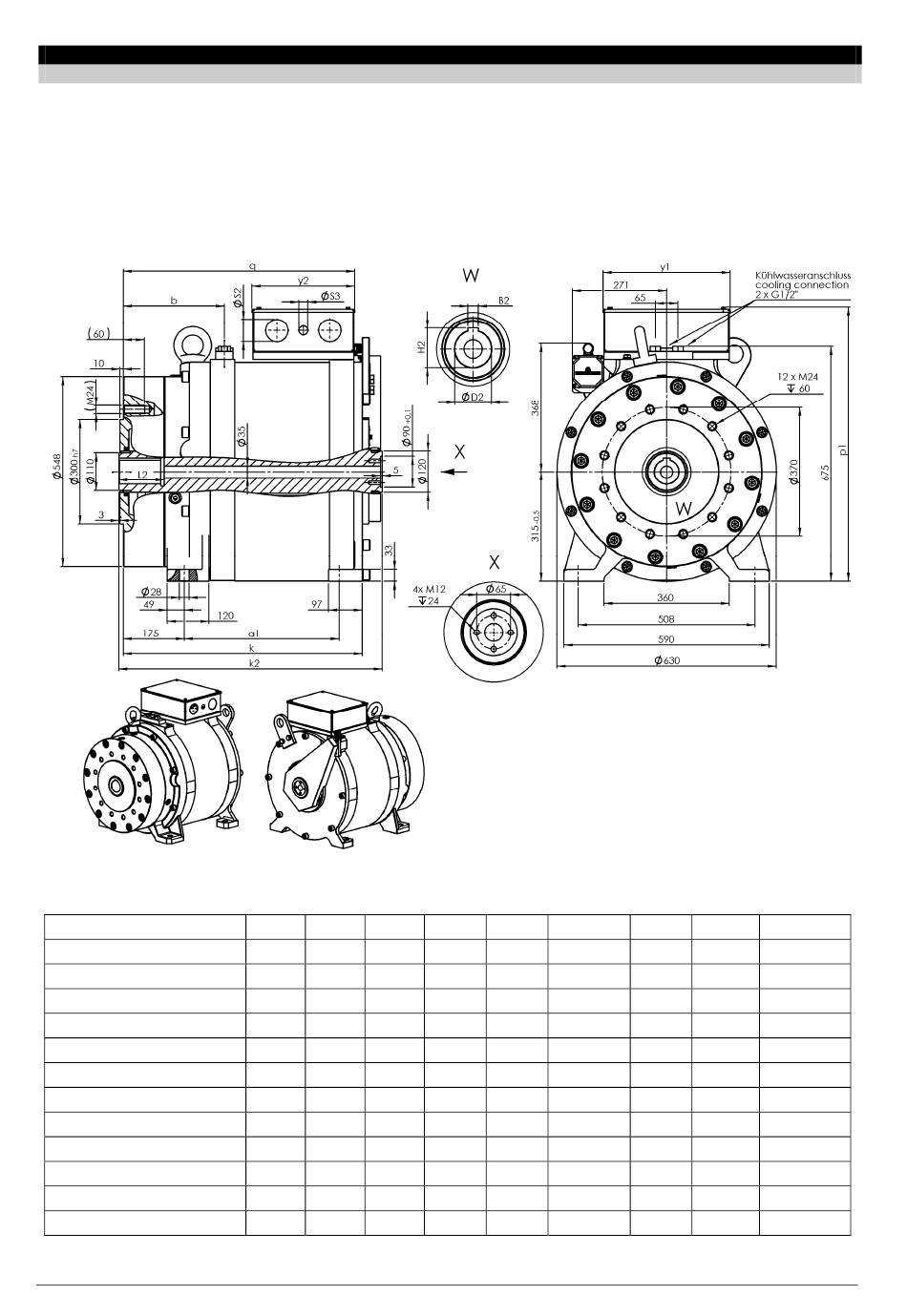

4.4.3. DST2-315 – Thrust bearing model
Type of construction IM B34
DST2-315KO
DST2-315KM
DST2-315MO
DST2-315ML
DST2-315LO
DST2-315LB
DST2-315BO
DST2-315XO
DST2-315XY
DST2-315YO
DST2-315ZO
DST2-315ZA
The terminal box dimensions are explained on page 56. The belt ratio of the encoder connection is 1:5.
DST2-135-400
Baumüller Nürnberg GmbH
k k2 q
516 587 495
550 621 529
584 655 563
618 689 597
652 723 631
686 757 665
770 841 749
838 909 817
872 943 851
906 977 885
974 1045 953
1008 1079 987
01/2013
Synchronous Torque Motor DST2-135-400
a1 b ØD2
275 290 70 H7
309 290 70 H7
343 290 70 H7
377 290 70 H7
411 290 70 H7
445 290 70 H7
529 315 85 H7
597 315 85 H7
631 315 85 H7
665 315 85 H7
733 315 85 H7
767 315 85 H7
Subject to technical modifications
L2 H2 B2
130 74.9 20 JS9
130 74.9 20 JS9
130 74.9 20 JS9
130 74.9 20 JS9
130 74.9 20 JS9
130 74.9 20 JS9
170 90.4 25 JS9
170 90.4 25 JS9
170 90.4 25 JS9
170 90.4 25 JS9
170 90.4 25 JS9
170 90.4 25 JS9
