Setting the HDMI parameters

■ Assigning HDMI components
You can assign an HDMI component to the HDMI IN 1 or
HDMI IN 2 jack on the rear panel of this unit so that the
audio and video signals input via HDMI connection can
be simultaneously played back.
Use the I/O Assignment parameter in Input Select to
assign HDMI components (see page 74).
■ Converting analog video signals to
HDMI
This unit is equipped with the HDMI up-conversion
feature where the analog video signals input at the
composite video, S-video and component video jacks on
the rear panel of this unit are digitally processed and up-
converted so that they can be output at the HDMI OUT
jack on the rear panel of this unit with all-digital
resolution quality.
Use the HDMI Up-Scaling parameter in the Option menu
to convert analog component video signals to HDMI
(see page 81).
Note
When the analog video signals with 1080i or 720p of resolution
are up-converted to HDMI and output at the HDMI OUT jack, the
picture quality may worsen.
■ Setting the HDMI support audio
You can choose to play back HDMI audio signals on this
unit or on another HDMI component connected to the
HDMI OUT jack on the rear panel of this unit.
Use the HDMI Set parameter in the Option menu to set the
HDMI support audio (see page 92).

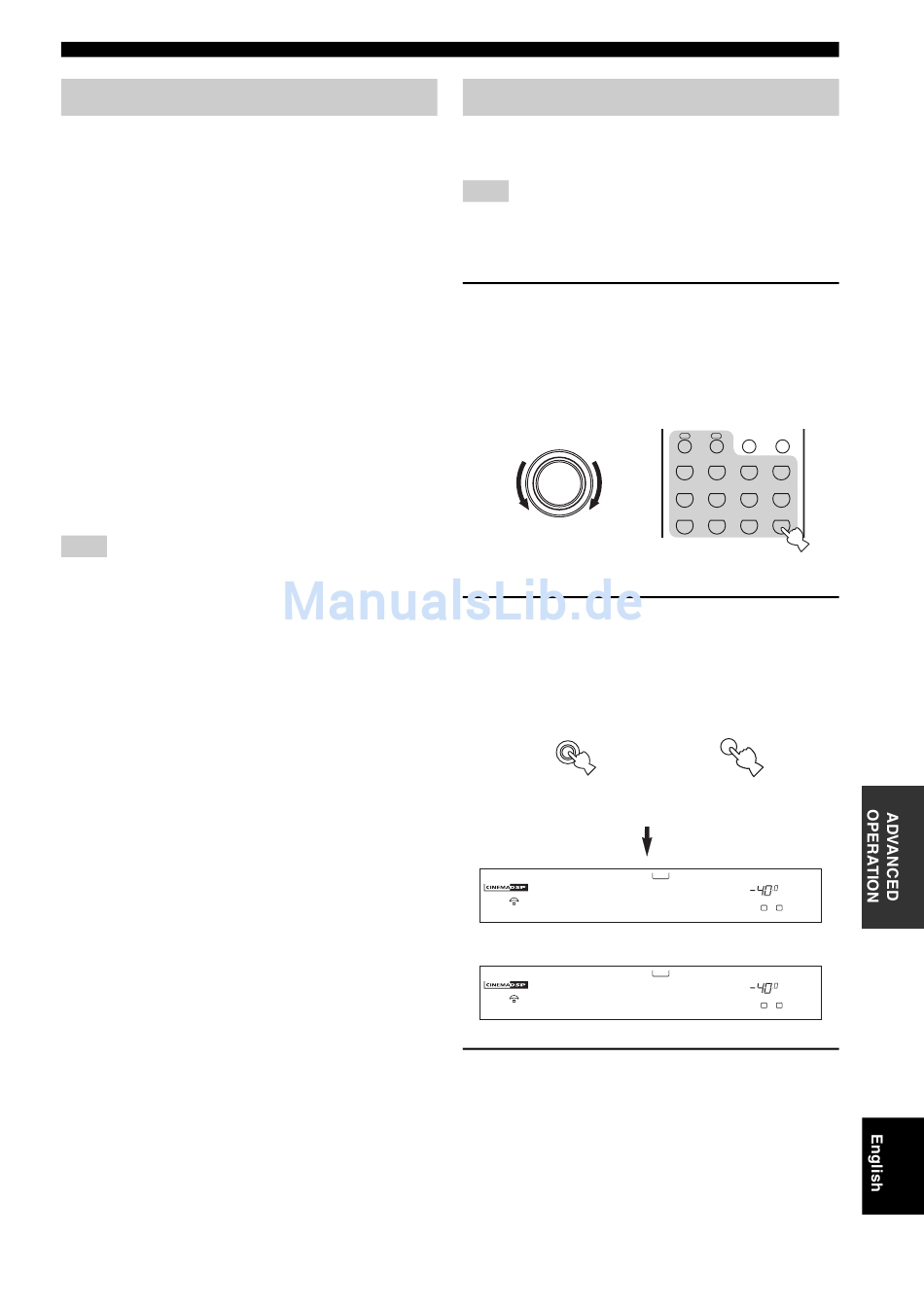

Basic HDMI operations

Perform the following steps to listen to playback from an
registered HDMI component.
Note
If an error message appears in the front panel display,
see page 120 for a complete list of error messages and proper
remedies.
1
Rotate the INPUT selector on the front panel
(or press one of the input selector buttons on
the remote control) to select the input source
assigned to the HDMI IN 1 or HDMI IN 2 jack
on the rear panel of this unit.
INPUT
or
Front panel
2
Press AUDIO SELECT on the front panel or
AUDIO SEL on the remote control repeatedly
to select AUTO or HDMI as the input mode.
The following front panel displays are examples
where DVD is selected as the input source.
AUDIO SELECT
Front panel
V-AUX DVR/VCR 2 VCR 1 CBL/SAT DTV
I N P U T :
SP
A A . S E L :
V-AUX DVR/VCR 2 VCR 1 CBL/SAT DTV
I N P U T :
SP
A . S E L :
A
3
Start playback on the connected HDMI
component.
HDMI
A B AUDIO SEL SLEEP
PHONO TUNER CD MULTI CH IN
V-AUX CBL/SAT MD/TAPE CD-R
DTV VCR 1 DVR/VCR2 DVD
Remote control
AUDIO SEL
Remote control
DVD MD/TAPE CD-R CD PHONO TUNER XM
D V D
dB
VOLUME
A U T O
L R
or
DVD MD/TAPE CD-R CD PHONO TUNER XM
D V D
dB
VOLUME
H D M I
L R
