Prepare the Transmitter

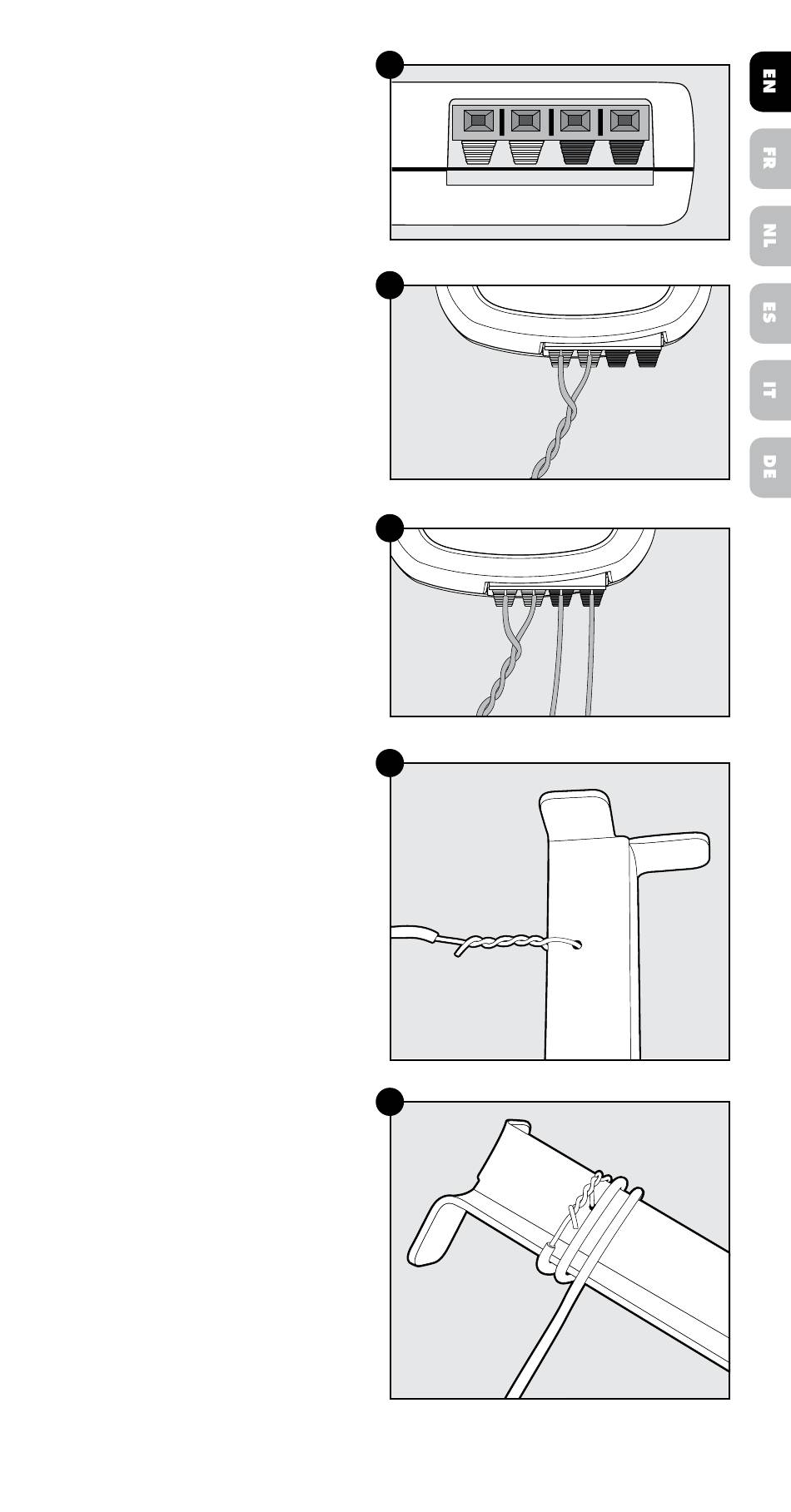

1. Place the Wire Break Locator transmitter
in a convenient location near your
fence transmitter.
2. Unplug the power adaptor to the
fence transmitter.
3. Disconnect the twisted boundary wire
and connect it to the Wire Break Locator
transmitter. Press the red tabs on the bottom
of the transmitter labelled LOOP (1A) and
insert the 2 twisted boundary wires into the
terminals (1B).

Prepare the Stakes

Note: The system requires 2 separate
grounding wires to be connected from the
transmitter to individual grounding stakes that
are placed in the ground.
1. Using the spool of wire supplied, strip
1 cm of insulation from one end of the
spool. Press one of the black tabs on
the transmitter labelled GROUND (1A)
and insert the stripped end into the
terminal (2A).
2. Next, slip your finger through the wire
spool and unroll the wire by allowing the
spool to rotate on your finger as you walk
away from the transmitter.
3. Once you are outside, cut the wire from the
spool and strip 5 cm of insulation from the
end of the wire in order to connect it to the
grounding stake.
Note: It is recommended to keep the
ground wire as short as possible by
trimming off any excess wire between the
transmitter and the outside location of the
grounding stake.
4. Place the wire through the small hole in
the grounding stake and twist the wire
tightly (2B). Securely wrap the wire around
the stake so the copper makes a solid
connection with the metal (2C).
5. Place the stake on the ground for now
and repeat the steps above for the other
grounding stake.

Ground the Stakes

Note: For proper electrical grounding, the
ground must be wet. You may need to pour
several litres of water around the grounding
stakes in order to moisten dry ground.
1. Position the 2 grounding stakes at least
0.6–1 m apart from each other and insert
them into the ground about 20 cm with
about 5 cm remaining out of the ground.
2. Recheck the LOOP and GROUND wire
connections at the transmitter and verify
that they are securely installed.
3. Connect the power adaptor to the power
jack on the side of the transmitter and then
plug the power adaptor into a working
outlet. The green power light will turn on,
indicating that power is supplied.
