Miele 10 459 520 Montageanweisung Seite 26

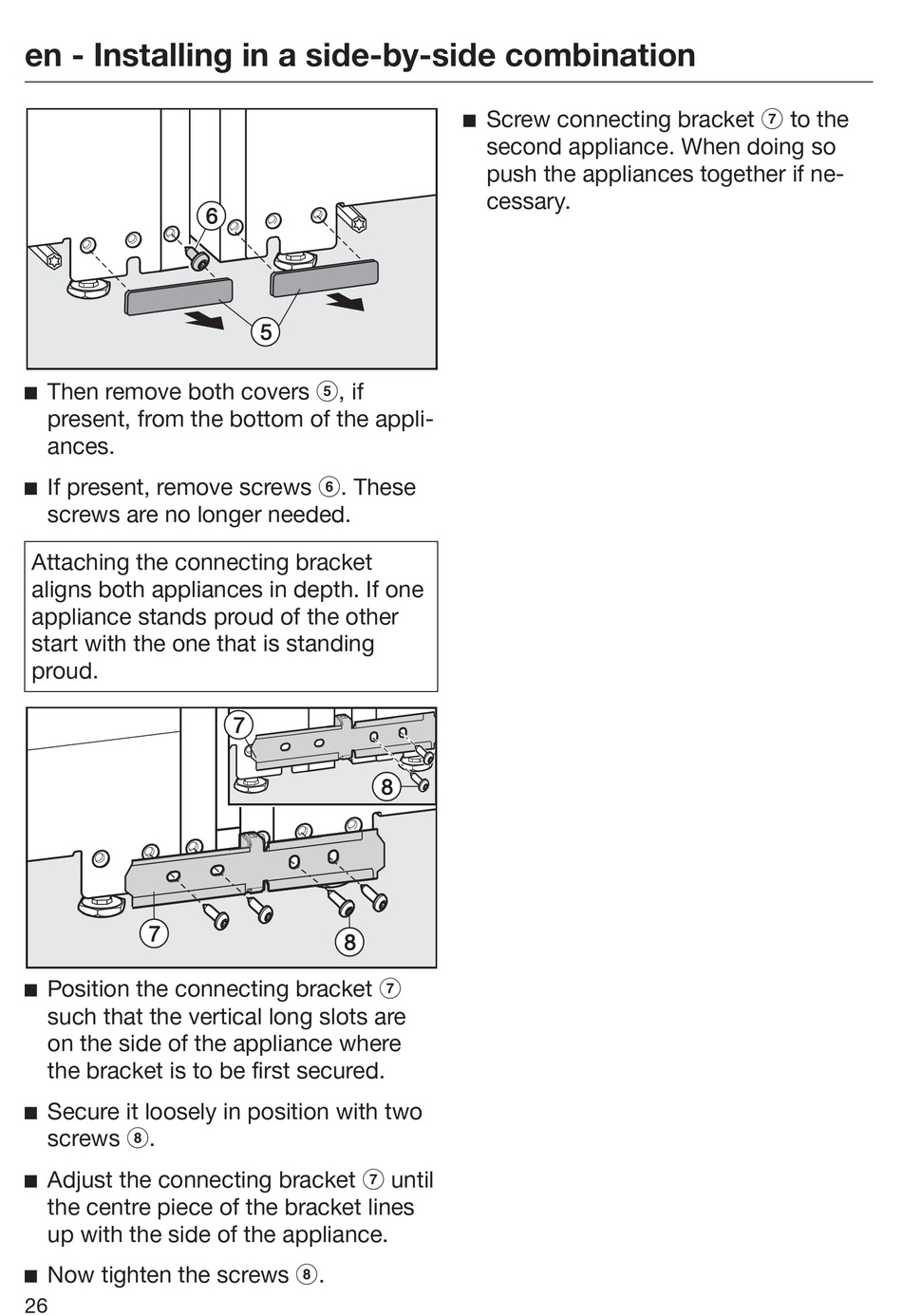

en - Installing in a side-by-side combination
 Then remove both covers , if
present, from the bottom of the appli-
ances.
 If present, remove screws . These
screws are no longer needed.
Attaching the connecting bracket
aligns both appliances in depth. If one
appliance stands proud of the other
start with the one that is standing
proud.
 Position the connecting bracket 
such that the vertical long slots are
on the side of the appliance where
the bracket is to be first secured.
 Secure it loosely in position with two
screws .
 Adjust the connecting bracket  until
the centre piece of the bracket lines
up with the side of the appliance.
 Now tighten the screws .
26
 Screw connecting bracket  to the
second appliance. When doing so
push the appliances together if ne-
cessary.
