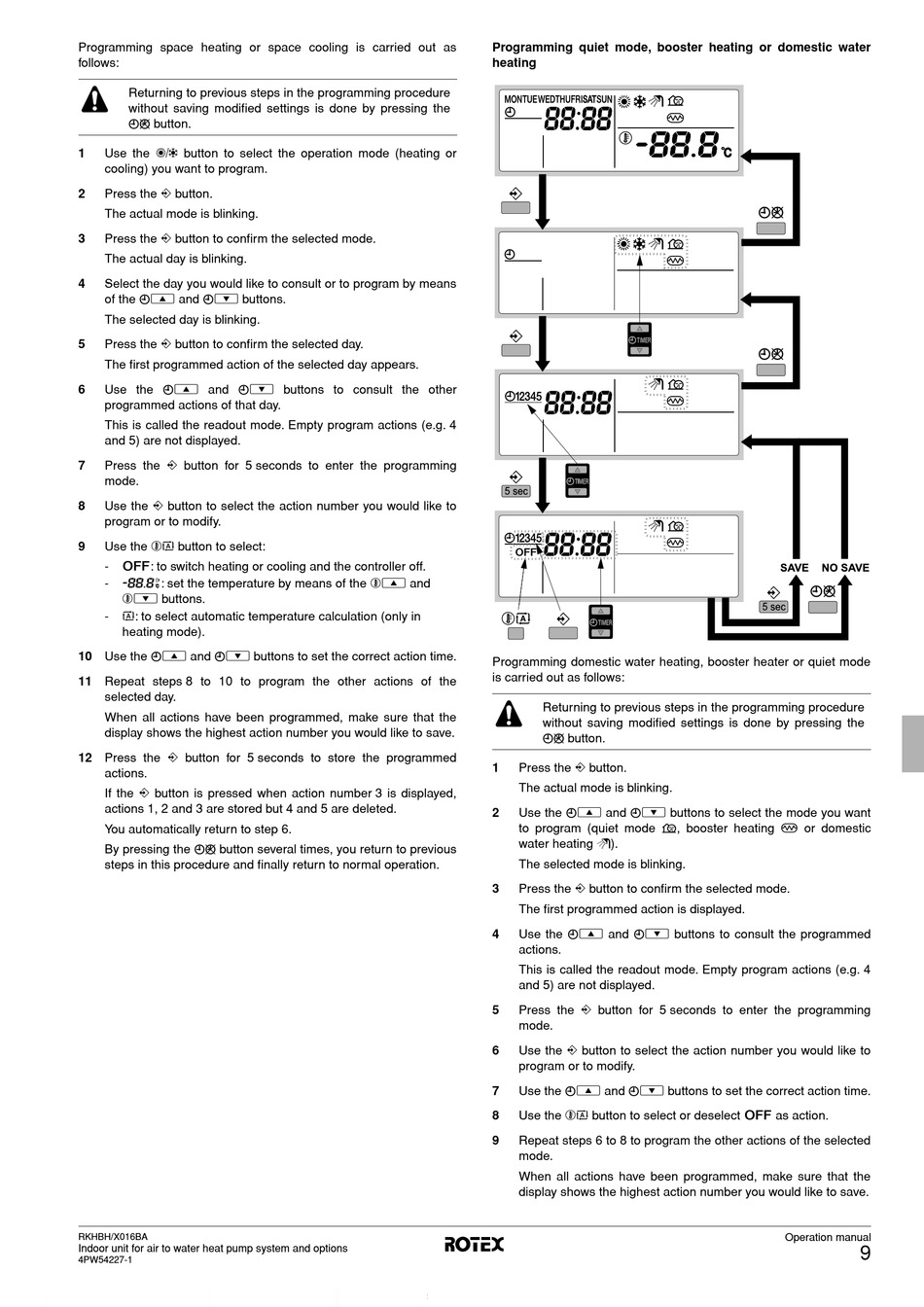

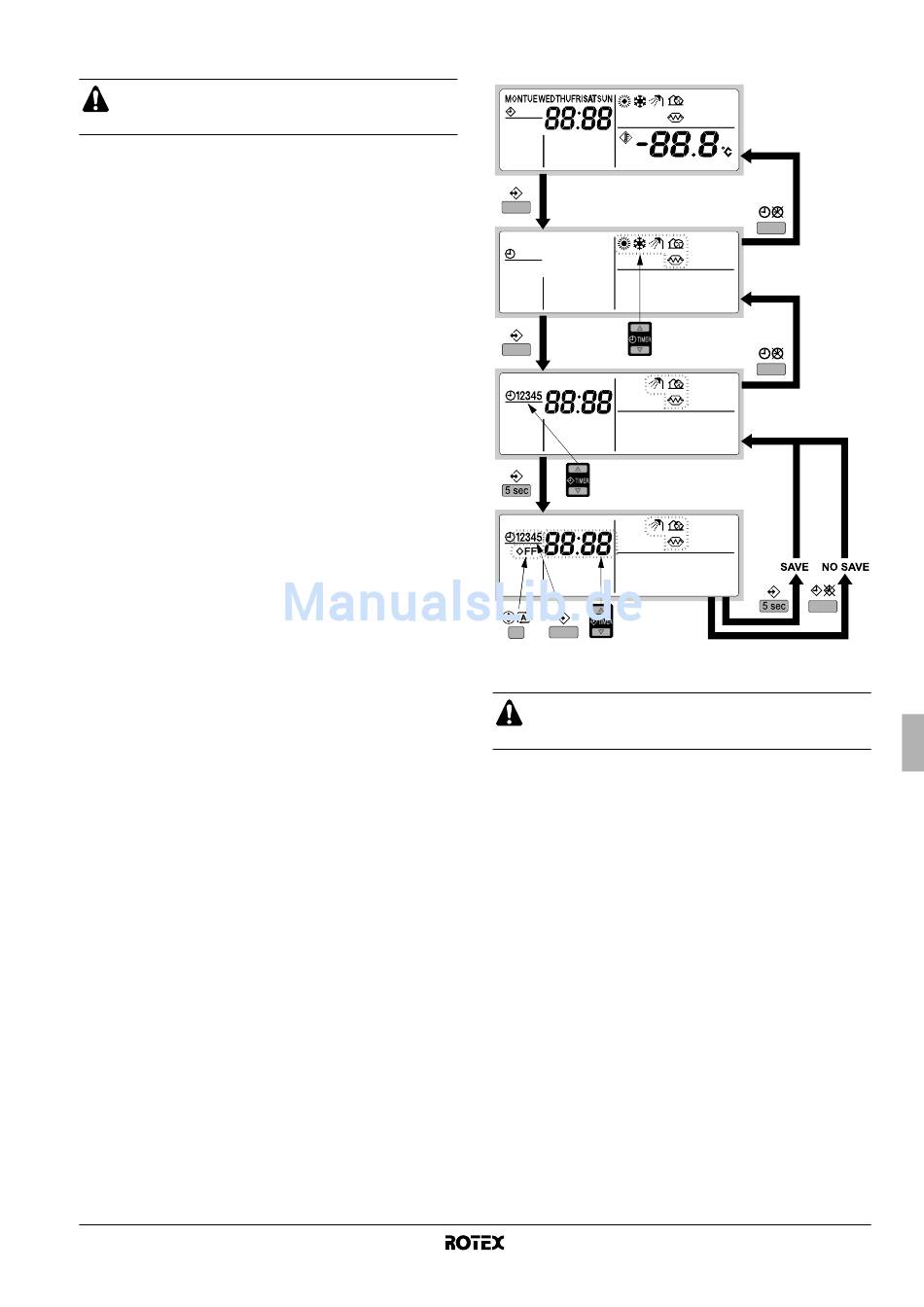

Programming space heating or space cooling is carried out as
follows:
Returning to previous steps in the programming procedure
without saving modified settings is done by pressing the
pr button.
Use the = button to select the operation mode (heating or
1
cooling) you want to program.
2 Press the < button.
The actual mode is blinking.
Press the < button to confirm the selected mode.
3
The actual day is blinking.
4 Select the day you would like to consult or to program by means
of the pi and pj buttons.
The selected day is blinking.
5 Press the < button to confirm the selected day.
The first programmed action of the selected day appears.
6 Use the pi and pj buttons to consult the other
programmed actions of that day.
This is called the readout mode. Empty program actions (e.g. 4
and 5) are not displayed.
Press the < button for 5 seconds to enter the programming
7
mode.
8 Use the < button to select the action number you would like to
program or to modify.
Use the ba button to select:
9
- x: to switch heating or cooling and the controller off.
9: set the temperature by means of the bi and
-
bj buttons.
a: to select automatic temperature calculation (only in
-
heating mode).
10 Use the pi and pj buttons to set the correct action time.
11 Repeat steps 8 to 10 to program the other actions of the
selected day.
When all actions have been programmed, make sure that the
display shows the highest action number you would like to save.
12 Press the < button for 5 seconds to store the programmed
actions.
If the < button is pressed when action number 3 is displayed,
actions 1, 2 and 3 are stored but 4 and 5 are deleted.
You automatically return to step 6.
By pressing the pr button several times, you return to previous
steps in this procedure and finally return to normal operation.
RKHBH/X016BA
Indoor unit for air to water heat pump system and options
4PW54227-1
Programming quiet mode, booster heating or domestic water
heating
Programming domestic water heating, booster heater or quiet mode
is carried out as follows:
Returning to previous steps in the programming procedure
without saving modified settings is done by pressing the
pr button.
Press the < button.
1
The actual mode is blinking.
2 Use the pi and pj buttons to select the mode you want
to program (quiet mode s
water heating w ).
The selected mode is blinking.
Press the < button to confirm the selected mode.
3
The first programmed action is displayed.
Use the pi and pj buttons to consult the programmed
4
actions.
This is called the readout mode. Empty program actions (e.g. 4
and 5) are not displayed.
Press the < button for 5 seconds to enter the programming
5
mode.
Use the < button to select the action number you would like to
6
program or to modify.
Use the pi and pj buttons to set the correct action time.
7
Use the ba button to select or deselect x as action.
8
9 Repeat steps 6 to 8 to program the other actions of the selected
mode.
When all actions have been programmed, make sure that the
display shows the highest action number you would like to save.
, booster heating m or domestic
