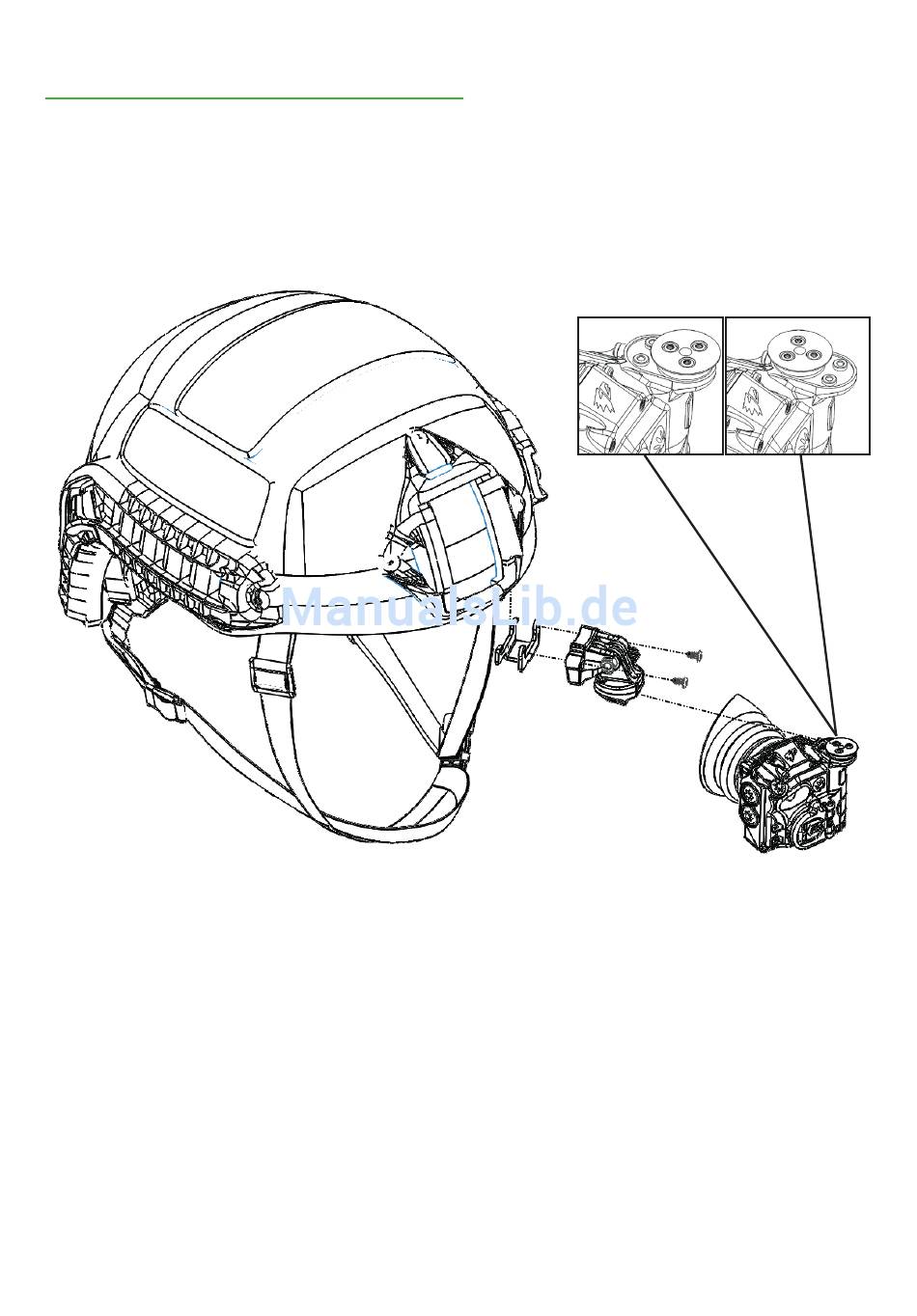

Helmet adapter (for tactical helmets)

The helmet adapter has been specially developed for tactical balistic protection helmets. These are
much thicker than regular helmets. With the helmet holder the TILO can be installed next to the
Ops-Core-Shroud. This makes it enables you use the night vision unit together with the TILO.
1. For attachment, the metal clip is first positioned so that the ocular opening is in an axis with
the left eye of the user. In this way, the adjustment to the eye distance is thus performed.
2. Then the clip is pushed as far as possible to the helmet edge and fastened.
3. Finally the small wheel, which is located at the TILO is screwed in either the front or rear area.
4. Then the TILO is inserted into the holder of the helmet holder until a clear click is heard. The
device can also be removed by actuating the lever.
5. Now check whether the device is sitting comfortably. If this is not the case, steps 1-4 are repeated.
