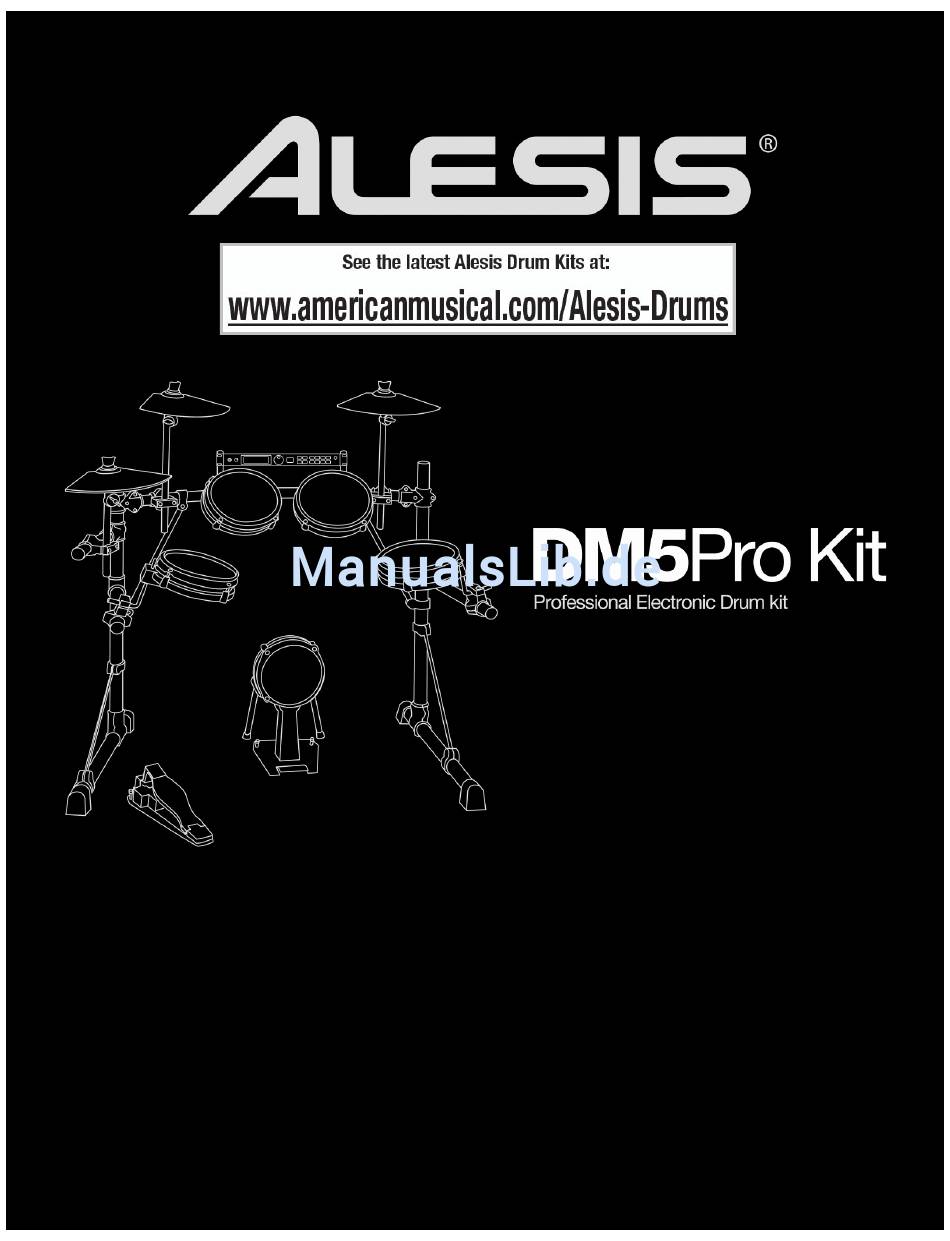

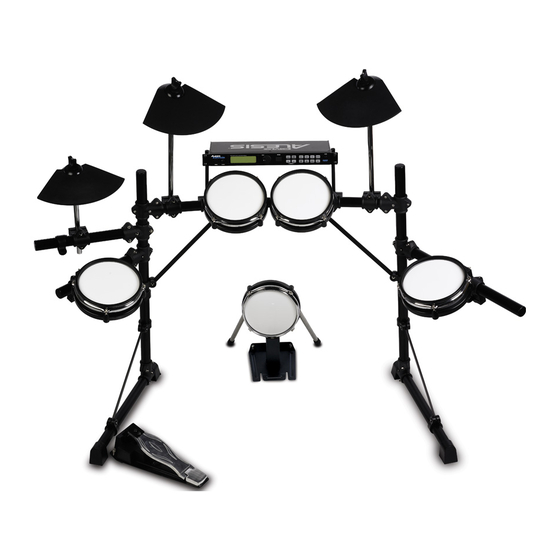

- Seite 1 QUICKSTART ASSEMBLY MANUAL GUÍA RÁPIDA DE ARMADO GUIDE D’ASSEMBLAGE RAPIDE MANUALE RAPIDO DI MONTAGGIO AUFBAUANLEITUNG...
-
Seite 2: Box Contents
BOX CONTENTS DRUM KEY 1/4” CABLE SNAKE METAL ROD L-SHAPED ROD DRUM STICK DRUM PADS CYMBAL ROD HI-HAT PEDAL CYMBALS ( 3 – single zone) (SHORT) BASS DRUM PAD ( 1 – dual zone with sticker) STRAIGHT TUBE W/ CENTER RACK VERTICAL TUBE W/ HORIZONTAL TUBE VERTICAL TUBE W/... - Seite 3 ASSEMBLING THE DRUM RACK CÓMO ARMAR EL BASTIDOR DE LA BATERÍA | ASSEMBLAGE DU SUPPORT POUR BATTERIE MONTAGGIO DEL RACK DELLA BATTERIA | AUFBAU DES DRUMRACKS 1 :::::::::: • Lay the 2 horizontal tubes (L) on the ground. Then, using the drum key, unscrew the bolts connecting the metal rod to the tube connectors (circled in the picture).
- Seite 4 5 :::::::::: • Take the two vertical tubes (M and N) and insert them into the tube connectors of the two horizontal tubes (L). Please insert part M into the horizontal tube on your left, and part N into the horizontal tube on your right. •...
- Seite 5 8 :::::::::: • Attach the two short tubes (P) to the remaining tube connectors on the vertical tube on your left (M). These two tubes will be used for the hi-hat and snare pads. • Fije los dos tubos cortos (P) a los restantes conectores del tubo vertical ubicado a su izquierda (M). Estos dos tubos se usan para los pads de snare y hi-hat.
- Seite 6 MOUNTING THE CYMBALS CÓMO MONTAR LOS PLATILLOS | MONTAGE DES CYMBALES MONTAGGIO DEI PIATTI | MONTAGE DER CYMBAL PADS 1 :::::::::: • Begin by connecting the cymbal rods (R and G) to the rack. Connect the longer cymbal rods (R) to the center rack tube (O). Connect the shorter cymbal rod (G) to the upper tube (P) on the left side of the rack.
- Seite 7 MOUNTING THE DRUM PADS CÓMO MONTAR LOS PADS DE TAMBORES | MONTAGE DES PADS MONTAGGIO DEI PAD DELLA BATTERIA | MONTAGE DER DRUM PADS 1 ::::::::: • Take the four L-shaped rods (D) and connect them to each of the four drum pads (I), as shown in the picture. You can secure the rod to the drum pad by tightening the screw on the side of the pad with the drum key.
- Seite 8 PLACING THE PEDALS CÓMO COLOCAR LOS PEDALES | POSITIONNEMENT DES PÉDALES POSIZIONAMENTO DEI PEDALI | AUFSTELLEN DER PEDALE 1 :::::::::: • Place the bass drum pad (K) on the ground. Attach the steel rods (C) to the bass drum pad (K), using the two long screws (S).
- Seite 9 MOUNTING THE DM5 MODULE CÓMO MONTAR EL MÓDULO DM5 | MONTAGE DU MODULE DM5 MONTAGGIO DEL MODULO DM5 | MONTAGE DES DM5 MODULS 1 :::::::::: • Take the DM5 module out of the box. Use the drum key to attach the rack-mount rods (U) to the rack ears, using the four short rack-mount screws (T).
- Seite 10 Tip: A customized DM5 Pro Kit preset collection can be downloaded from our website. This collection contains new programs and optimized settings for the DM5 Pro Kit. Visit http://www.alesis.com/index.php?preset_files for a free download. • Comience conectando los pads y los pedales como indican los rótulos de la ilustración.
