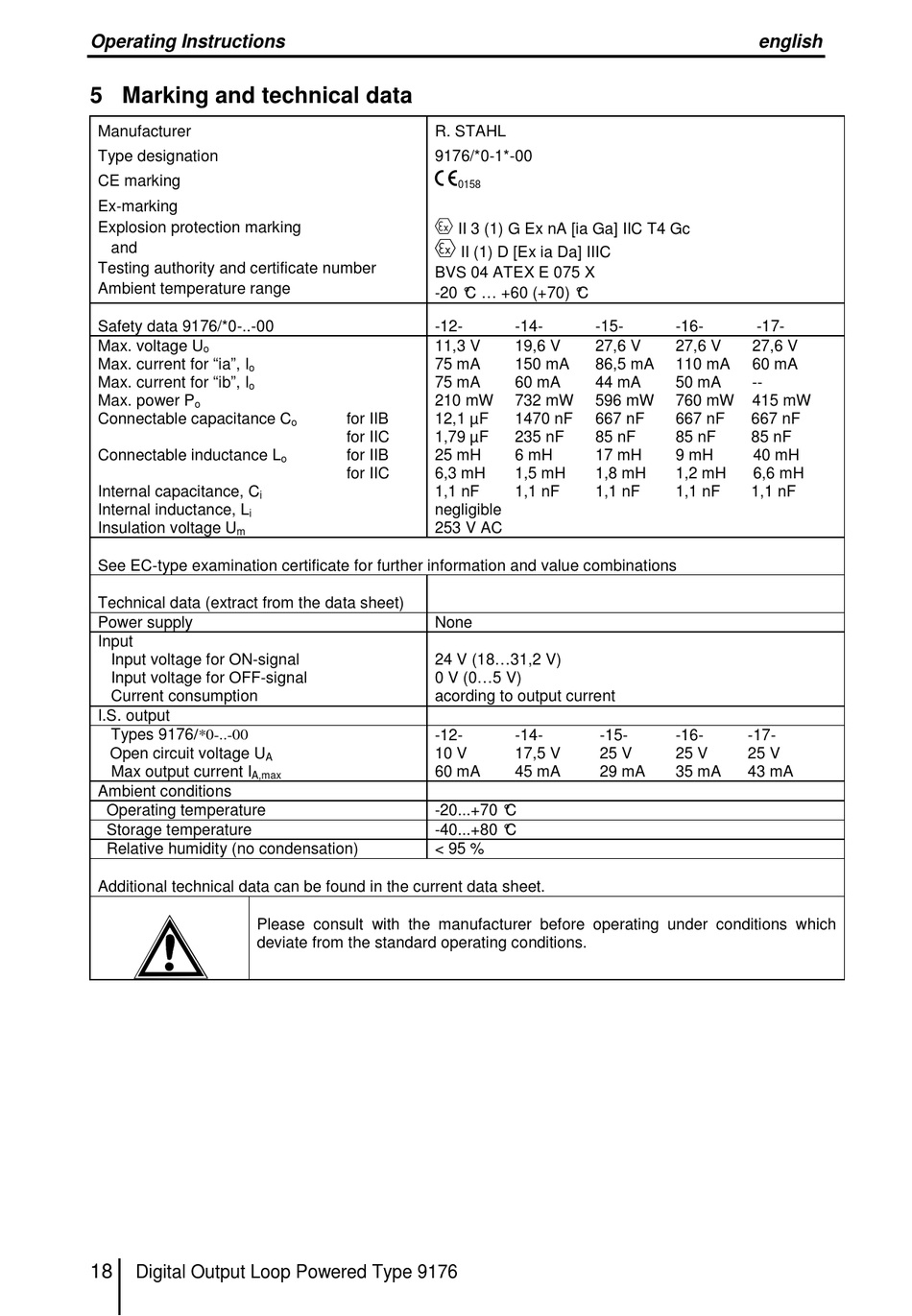

5 Marking and technical data

Manufacturer
Type designation
CE marking
Ex-marking
Explosion protection marking
and
Testing authority and certificate number
Ambient temperature range
Safety data 9176/*0-..-00
Max. voltage U
o
Max. current for "ia", I
o
Max. current for "ib", I
o
Max. power P
o
Connectable capacitance C
Connectable inductance L
Internal capacitance, C
i
Internal inductance, L
i
Insulation voltage U
m
See EC-type examination certificate for further information and value combinations
Technical data (extract from the data sheet)
Power supply
Input
Input voltage for ON-signal
Input voltage for OFF-signal
Current consumption
I.S. output
Types 9176/*0-..-00
Open circuit voltage U
Max output current I
A,max
Ambient conditions
Operating temperature
Storage temperature
Relative humidity (no condensation)
Additional technical data can be found in the current data sheet.
Please consult with the manufacturer before operating under conditions which
deviate from the standard operating conditions.
18
Digital Output Loop Powered Type 9176
R. STAHL
9176/*0-1*-00
c
e II 3 (1) G Ex nA [ia Ga] IIC T4 Gc
e
BVS 04 ATEX E 075 X
-20 ° C ... +60 (+70) ° C
-12-
11,3 V
75 mA
75 mA
210 mW
for IIB 12,1 µF
o
for IIC 1,79 µF
for IIB 25 mH
o
for IIC 6,3 mH
1,1 nF
negligible
253 V AC
None
24 V (18...31,2 V)
0 V (0...5 V)
acording to output current
-12-
10 V
A
60 mA
-20...+70 °C
-40...+80 °C
< 95 %
0158
II (1) D [Ex ia Da] IIIC
-14- -15-
19,6 V 27,6 V
150 mA 86,5 mA
60 mA 44 mA
732 mW 596 mW
1470 nF 667 nF
235 nF 85 nF
6 mH 17 mH
1,5 mH 1,8 mH
1,1 nF 1,1 nF
-14- -15-
17,5 V 25 V
45 mA 29 mA
english
-16- -17-
27,6 V 27,6 V
110 mA 60 mA
50 mA --
760 mW 415 mW
667 nF 667 nF
85 nF 85 nF
9 mH 40 mH
1,2 mH 6,6 mH
1,1 nF 1,1 nF
-16- -17-
25 V 25 V
35 mA 43 mA
