GB Assembly

Assembly instruction

Caution! Please follow the assembly instruction.

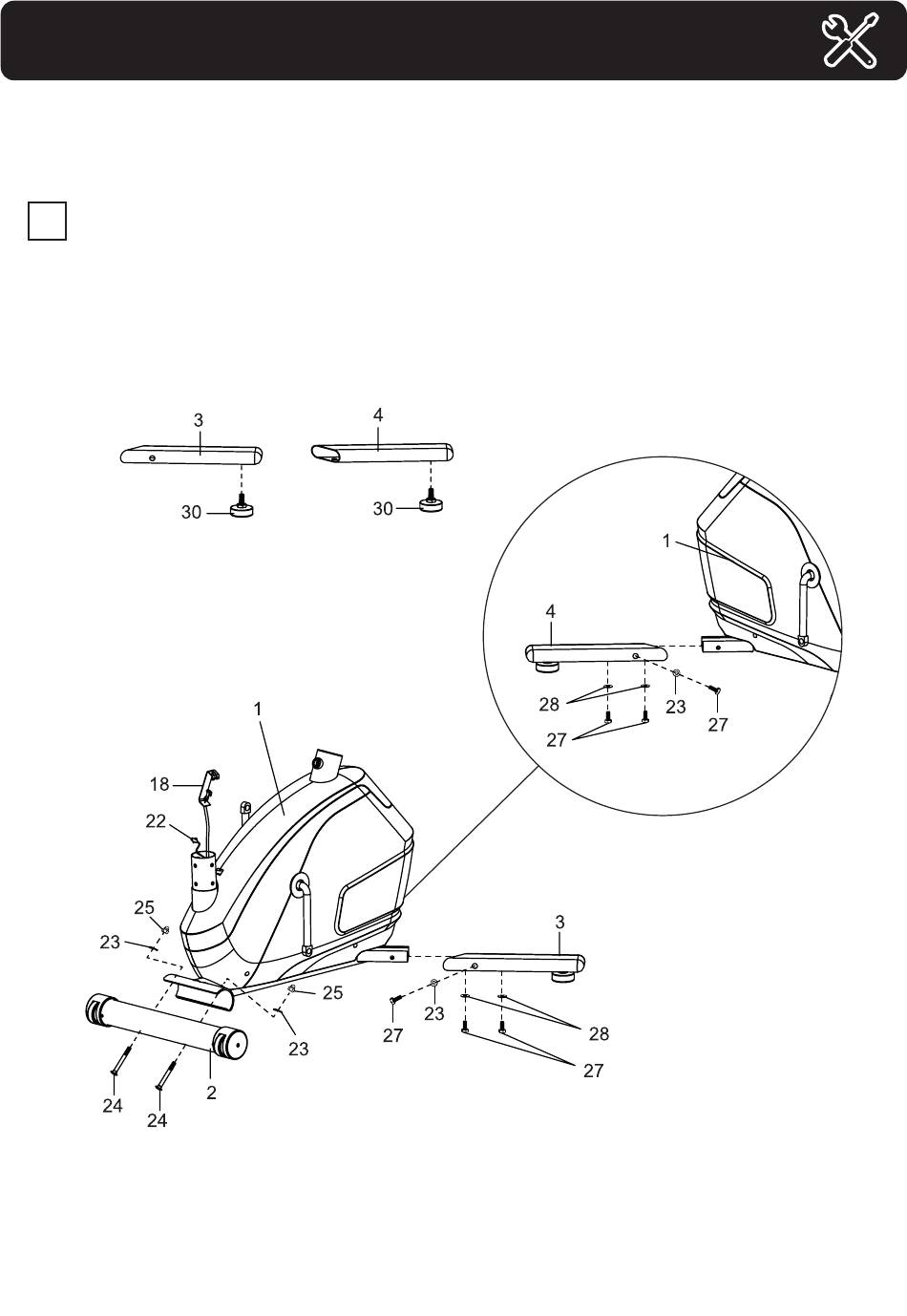

1. To the main frame (1), attach the front stabilizer (2) with two sets of bolts (24), large spring washers (23) and cup nuts (25).
1
2. Attach the leveling feet (30) to the right (4) and left rear stabilizer (3).
3. Attach the left rear stabilizer (3) to the main frame (1) by using two sets of bolts (27), washers (28), a bolt (27) and a large spring
washer (23). Then attach the right rear stabilizer (4) in the same way.
41
