Technical Data - Viessmann Vitocharge VX3 Backup-Box 3PH A Installationsanleitung

12.

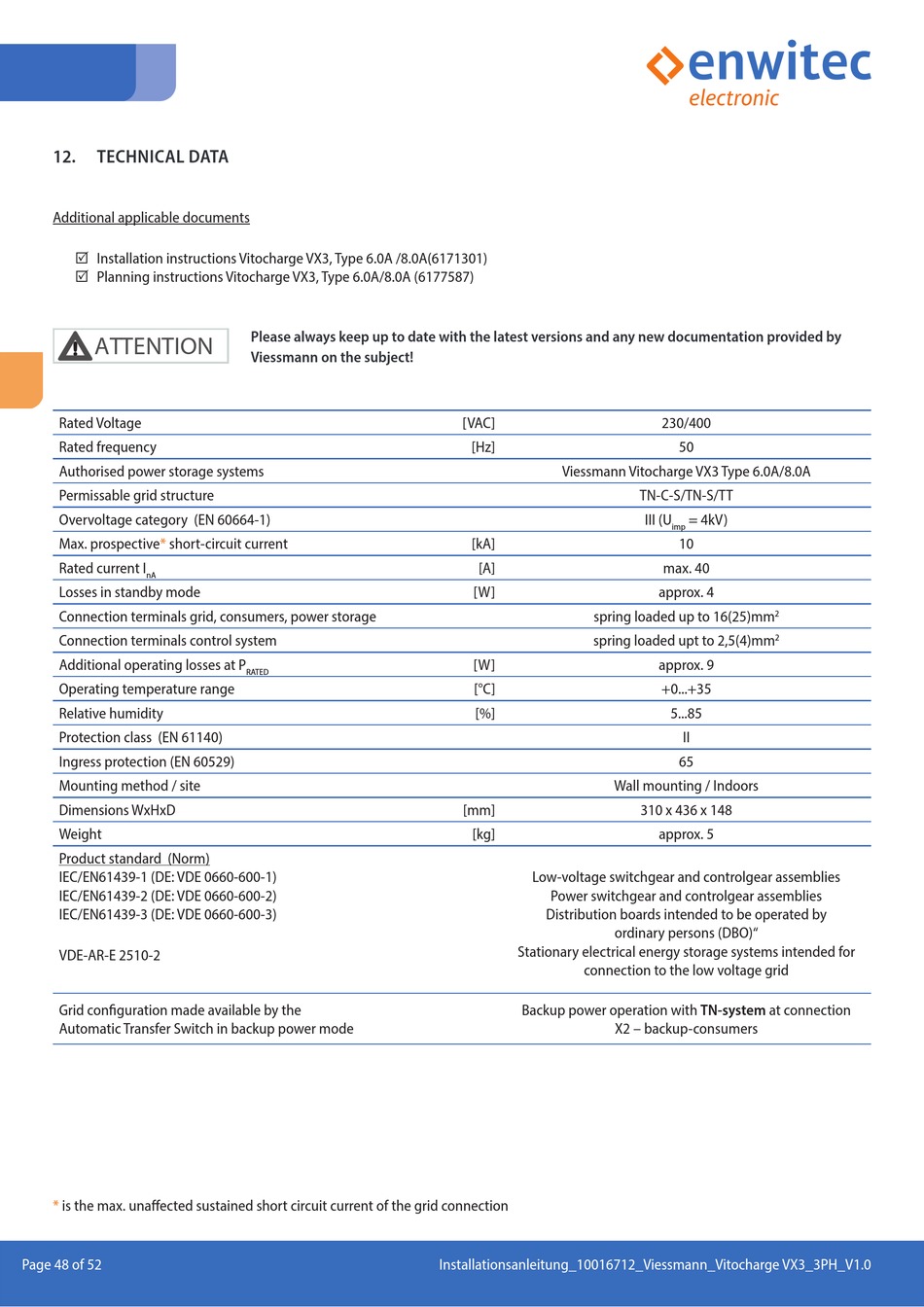

TECHNICAL DATA

Additional applicable documents
 Installation instructions Vitocharge VX3, Type 6.0A /8.0A(6171301)
 Planning instructions Vitocharge VX3, Type 6.0A/8.0A (6177587)
ATTENTION
Rated Voltage
Rated frequency
Authorised power storage systems
Permissable grid structure
Overvoltage category (EN 60664-1)
Max. prospective* short-circuit current
Rated current I
nA
Losses in standby mode
Connection terminals grid, consumers, power storage
Connection terminals control system
Additional operating losses at P
Operating temperature range
Relative humidity
Protection class (EN 61140)
Ingress protection (EN 60529)
Mounting method / site
Dimensions WxHxD
Weight
Product standard (Norm)
IEC/EN61439-1 (DE: VDE 0660-600-1)
IEC/EN61439-2 (DE: VDE 0660-600-2)
IEC/EN61439-3 (DE: VDE 0660-600-3)
VDE-AR-E 2510-2
Grid confi guration made available by the
Automatic Transfer Switch in backup power mode
* is the max. unaff ected sustained short circuit current of the grid connection
Page 48 of 52
Please always keep up to date with the latest versions and any new documentation provided by
Viessmann on the subject!
RATED
[VAC]
[Hz]
Viessmann Vitocharge VX3 Type 6.0A/8.0A
[kA]
[A]
[W]
spring loaded up to 16(25)mm
spring loaded upt to 2,5(4)mm
[W]
[°C]
[%]
[mm]
[kg]
Low-voltage switchgear and controlgear assemblies
Power switchgear and controlgear assemblies
Distribution boards intended to be operated by
Stationary electrical energy storage systems intended for
connection to the low voltage grid
Backup power operation with TN-system at connection
Installationsanleitung_10016712_Viessmann_Vitocharge VX3_3PH_V1.0
230/400
50
TN-C-S/TN-S/TT
III (U = 4kV)
imp
10
max. 40
approx. 4
2
2
approx. 9
+0...+35
5...85
II
65
Wall mounting / Indoors
310 x 436 x 148
approx. 5
ordinary persons (DBO)"
X2 – backup-consumers
