On/Off Trigger; Lock Button For On/Off Trigger - Westfalia AMG 18 Originalanleitung

(1) and the extension tube (2) and is equipped with bayonet lock.
Mount the assembled blowing tube on the device and make sure the
assembled blowing tube is properly locked.
2. Make sure the battery is fully loaded. For detailed information read and
observe the instruction manuals of the rechargeable battery and
charger.
3. Insert the battery straight into the recess of the device and push the
battery up to the end until you hear a click sound.
4. To remove the battery, first depress the unlocking button and pull out
straight from the device. Do not force the battery when inserting into
the device or removing.

ON/OFF Trigger

1. To switch on the device, pull the ON/OFF trigger (7).
2. To switch off the device, release the trigger.

Lock Button for ON/OFF Trigger

1. For locking the ON/OFF trigger, pull the ON/OFF trigger and after-
wards press the locking button (5) down. The ON/OFF trigger is now
locked in place. Release the ON/OFF trigger.
2. For unlocking and switching off the device, pull the ON/OFF trigger
and release it. The locking button (5) automatically snaps back in
place and the device switches off.
Operation

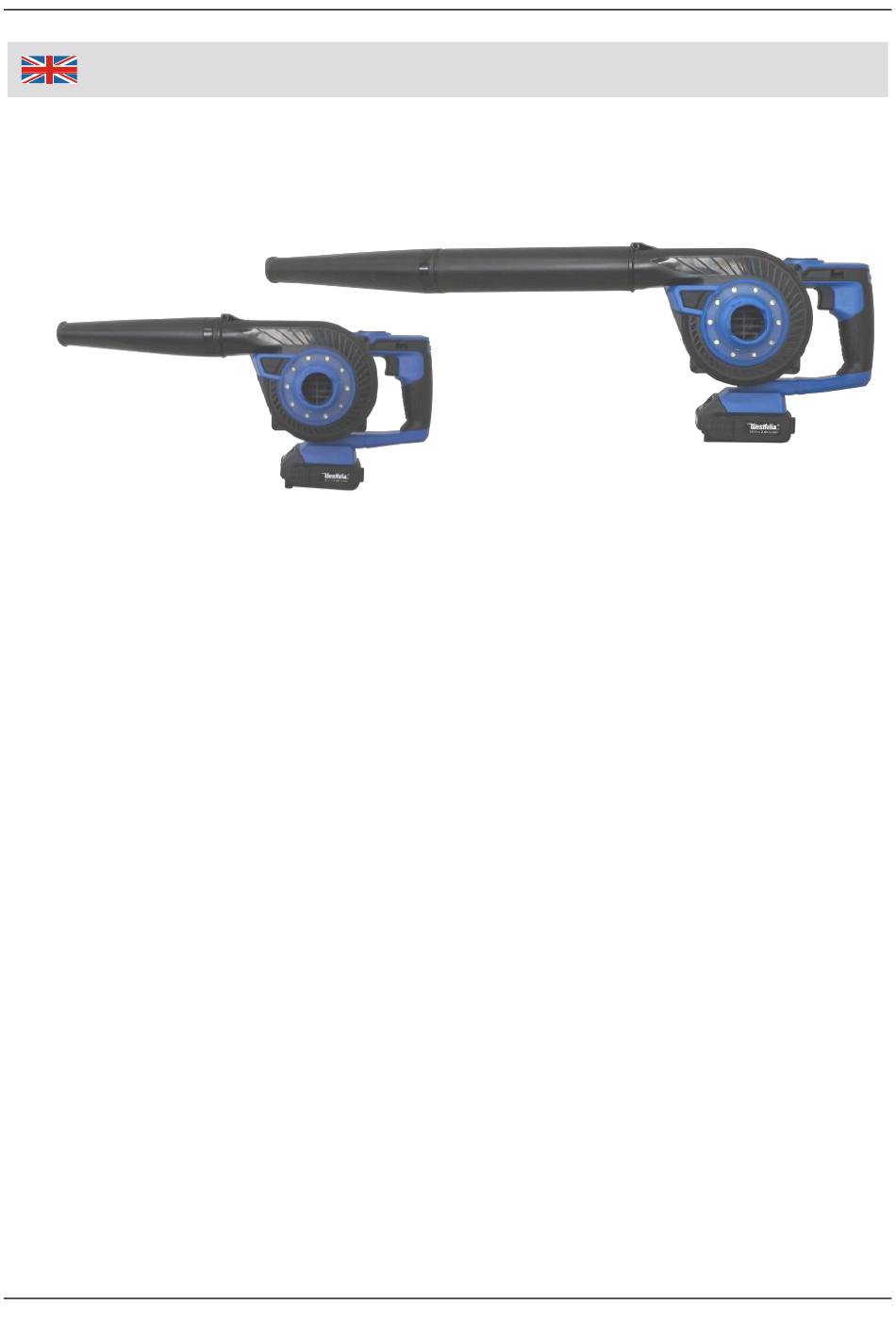

Version 1
28
Version 2
