KA551F/00/a2/01.07

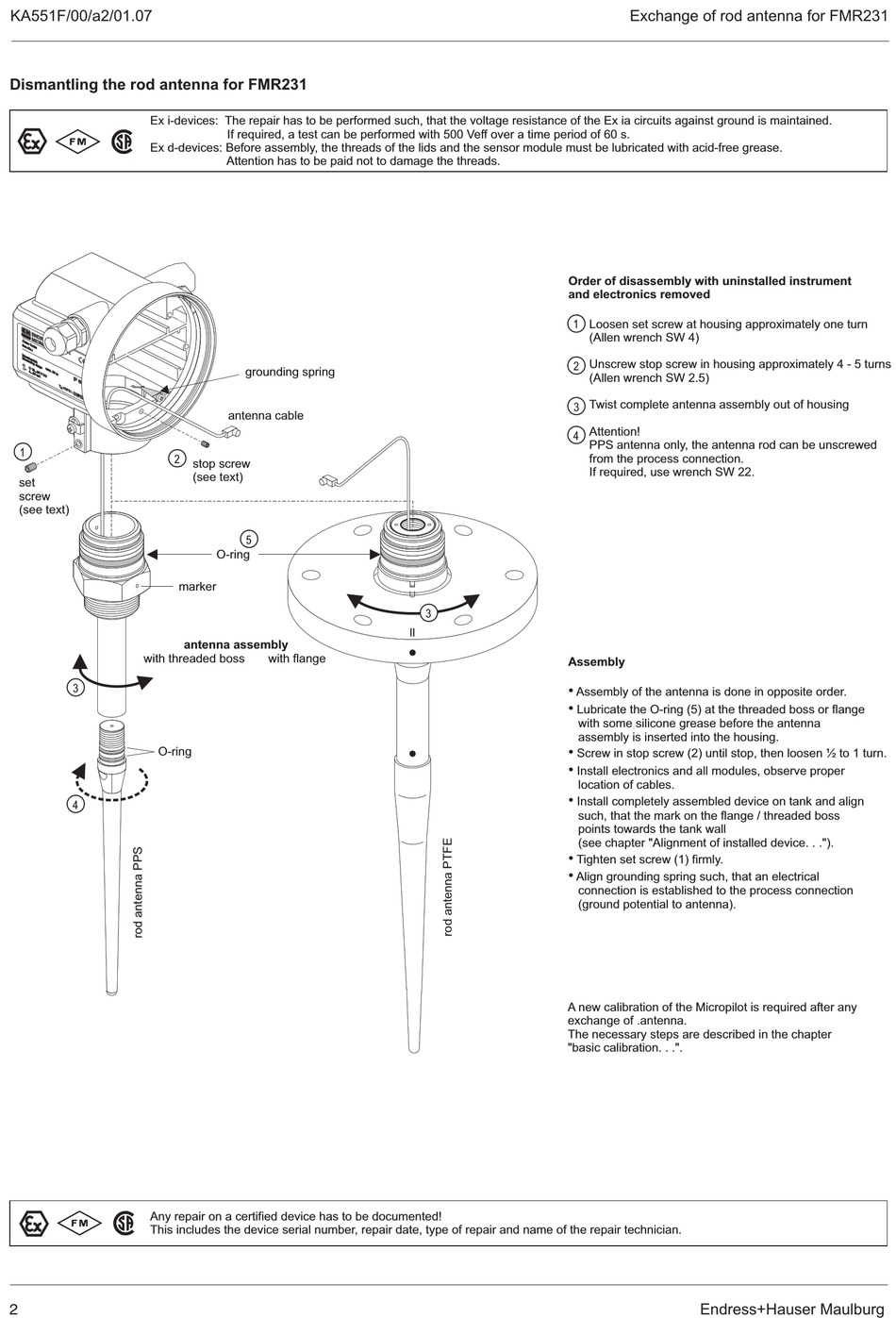

Dismantling the rod antenna for FMR231
Ex i-devices: The repair has to be performed such, that the voltage resistance of the Ex ia circuits against ground is maintained.
0 2 1
Ex d-devices: Before assembly, the threads of the lids and the sensor module must be lubricated with acid-free grease.
E N E N
D R D R
M I M I
E S E S
O rd O rd C R C R
S + S +
e r e r
O P O P H A H A
S e S e C o C o
r. -N r. -N d e : d e : I L O I L O U S U S
o .: o .:
T I T I E R E R
I I
M e M e
s s b s s b
M e M e
e re e re
a s u a s u
ic h ic h
ri n g ri n g
ra n ra n
g e g e
U 1 U 1
m a m a
6 .. .3 6 .. .3
x . 2 x . 2
4 .. .2 4 .. .2
6 V 6 V 0 m 0 m
0 m 0 m
D C D C
A A
I P
6 5
T T
A A > 7 0 > 7 0
° C ° C
: :
t > 8 t > 8
5 °C 5 °C
1
2
set
screw
(see text)
marker
with threaded boss
3
O-ring
4
0 2 1
Any repair on a certified device has to be documented!
This includes the device serial number, repair date, type of repair and name of the repair technician.
2
If required, a test can be performed with 500 Veff over a time period of 60 s.
Attention has to be paid not to damage the threads.
grounding spring
antenna cable
stop screw
(see text)
5
O-ring
antenna assembly
with flange
Order of disassembly with uninstalled instrument
and electronics removed
1
Loosen set screw at housing approximately one turn
(Allen wrench SW 4)
2
Unscrew stop screw in housing approximately 4 - 5 turns
(Allen wrench SW 2.5)
3
Twist complete antenna assembly out of housing
Attention!
4
PPS antenna only, the antenna
from the process connection.
If required, use wrench SW 22.
3
Assembly
•
Assembly of the antenna is done in opposite order.
•
Lubricate the O-ring (5) at the threaded boss or flange
with some silicone grease before the antenna
assembly is inserted into the housing.
•
Screw in stop screw (2) until stop, then loosen ½ to 1 turn.
•
Install electronics and all modules, observe proper
location of cables.
•
Install completely assembled device on tank and align
such, that the mark on the flange / threaded boss
points towards the tank wall
(see chapter "Alignment of installed device. . .").
•
Tighten set screw (1) firmly.
•
Align grounding spring such, that an electrical
connection is established to the process connection
(ground potential to antenna).
A new calibration of the Micropilot is required after any
exchange of .antenna.
The necessary steps are described in the chapter
"basic calibration. . .".
Exchange of rod antenna for FMR231
rod can be unscrewed
