1. Der Lautsprecher ist im Modul integriert. Für
eine gute Schallverteilung darf die Oberseite
des Moduls nicht verdeckt sein.
2. Soundmodul möglichst in Richtung der Zu-
schauer/Zuhörer ausrichten, also keine Über-
Kopf-Montage unter der Anlage.
3. Das Soundmodul sollte sich dort befinden, wo
das entsprechende Funktionsmodell auf Ihrer
Anlage vorkommt. Sie können das Modul auch
auf der Anlage (z. B. in einem Gebäude etc.)
einbauen. So erreichen Sie noch besseren
Klang und eine bessere Übereinstimmung von
sichtbarer und hörbarer Geräuschquelle.

4. Anschluss

Geeignete Kabel: Der geringe Strombedarf des
Soundmoduls erlaubt es, entsprechend klein di-
mensionierte Kabel, die sich gut versteckt verle-
gen lassen, zu verwenden. Wir empfehlen Litze
mit einem Querschnitt von 0,14 mm² (z. B. Viess-
mann Art.-Nr. 6860 – 6869 oder 68603 – 68693).
Das Soundmodul verfügt nicht über einen Ein-
Aus-Schalter. Wenn Sie das Soundmodul aus-
schalten bzw. von der Stromversorgung trennen
möchten, bauen Sie in eine der beiden Stromver-
sorgungsleitungen (braun oder gelb) einen Schal-
ter ein (s. Abb. 2).
Beachten Sie die Sicherheitshinweise oben.
Schließen Sie das Soundmodul gemäß Abb. 2 an
die Stromversorgung an.
Abb. 2
Abweichender Anschluss bei den Soundmodulen
Art.-Nr. 5556, 5557, 5559 und 5560. Beachten Sie
die Anschlussgrafiken in den Zusatzanleitungen.
4

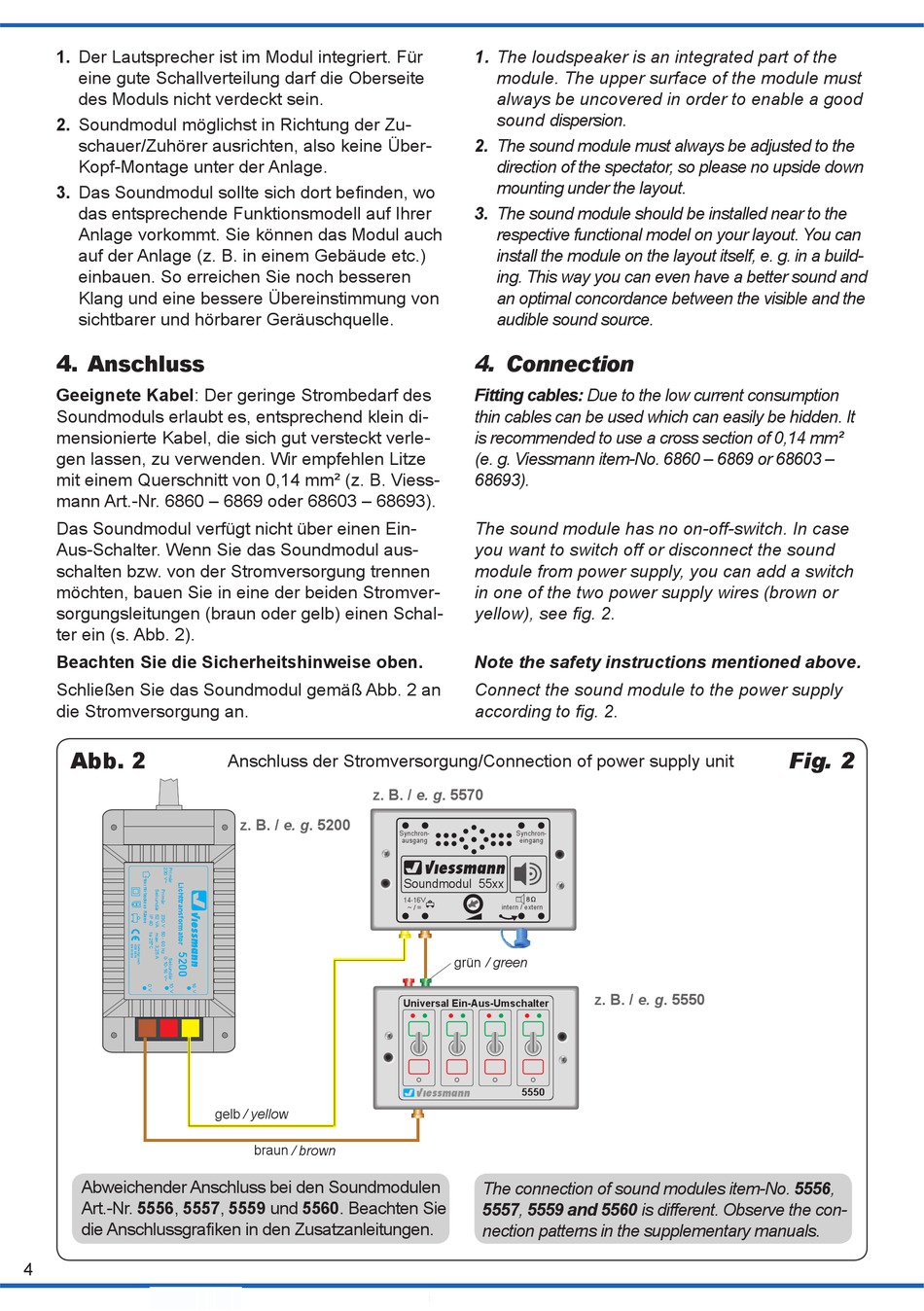

Anschluss der Stromversorgung/Connection of power supply unit
z. B. / e. g. 5570
z. B. / e. g. 5200
gelb
/ yellow
braun
/ brown
1. The loudspeaker is an integrated part of the
module. The upper surface of the module must
always be uncovered in order to enable a good
sound dispersion.
2. The sound module must always be adjusted to the
direction of the spectator, so please no upside down
mounting under the layout.
3. The sound module should be installed near to the
respective functional model on your layout. You can
install the module on the layout itself, e. g. in a build-
ing. This way you can even have a better sound and
an optimal concordance between the visible and the
audible sound source.

4. Connection

Fitting cables: Due to the low current consumption
thin cables can be used which can easily be hidden. It
is recommended to use a cross section of 0,14 mm²
(e. g. Viessmann item-No. 6860 – 6869 or 68603 –
68693).
The sound module has no on-off-switch. In case
you want to switch off or disconnect the sound
module from power supply, you can add a switch
in one of the two power supply wires (brown or
yellow), see fig. 2.
Note the safety instructions mentioned above.
Connect the sound module to the power supply
according to fig. 2.
Synchron-
Synchron-
ausgang
eingang
viessmann
Soundmodul
55xx
14-16V
~ / =
intern / extern
grün
/ green
Universal Ein-Aus-Umschalter
viessmann
5550
The connection of sound modules item-No. 5556,
5557, 5559 and 5560 is different. Observe the con-
nection patterns in the supplementary manuals.
z. B. / e. g. 5550
Fig. 2
