Tools required for assembly:
Wrenches, Phillips screwdrivers and pliers.
Before mounting check the material according to the parts list for completeness.

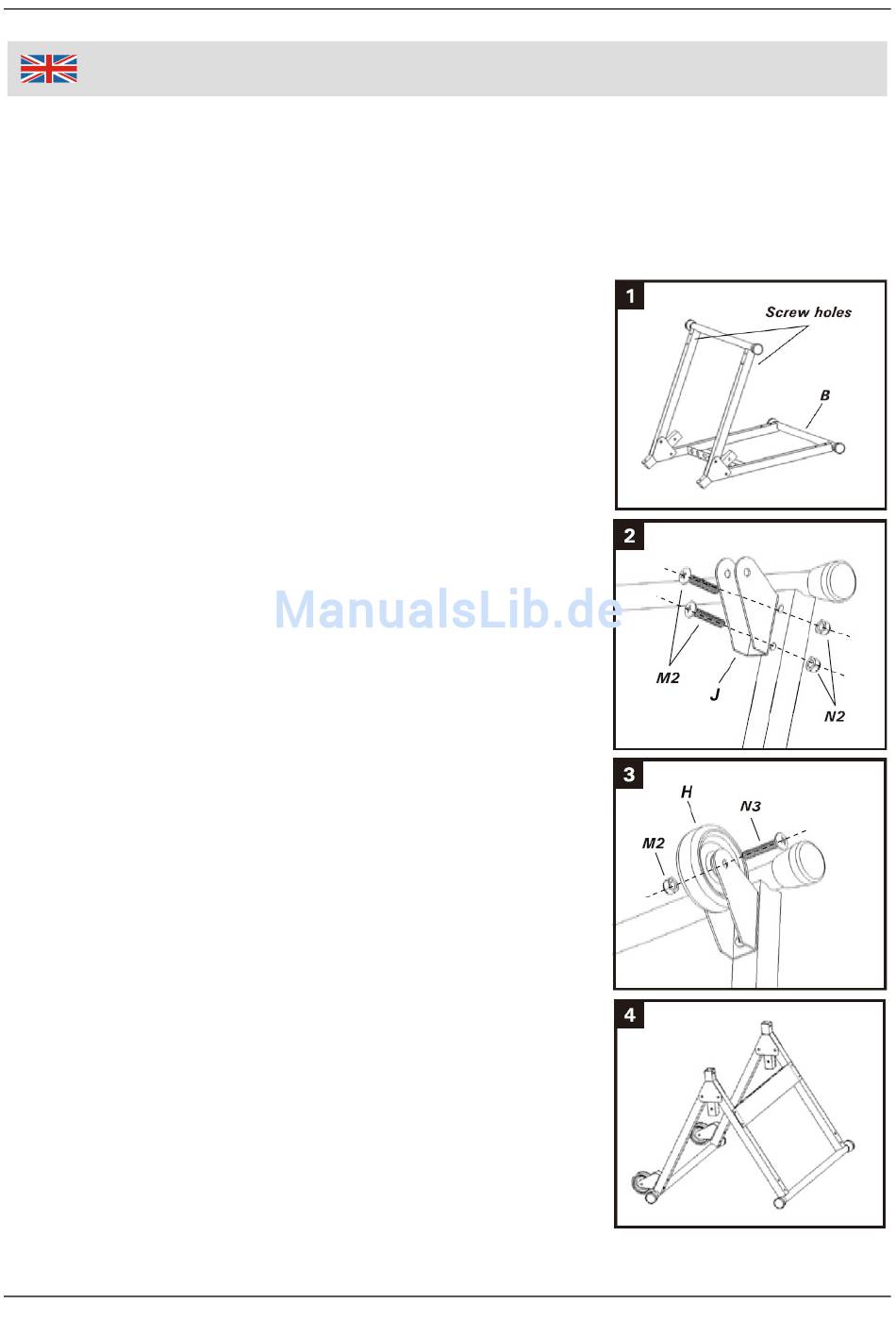

Setting up the Leg Assembly (Fig. 1 – 4)
1. Place the leg assembly (B) flat on the work
surface. The leg posts with screw holes should be
facing up.
2. Slightly open the table legs by pulling the two
crossbars in opposite directions.
3. Attach caster mounting brackets (J) using two M6
x 40 mm cross-head screws (N1) and two 6 mm
lock nuts (M1).
4. Repeat this step on the other side.
5. Mount casters (H) using two M8 x 45 mm cross-
head screws (N3) and two 8 mm lock nuts (M2).
Screw the lock nuts only hand tight, so the casters
can rotate freely.
6. Repeat this step on the other side.
7. Fully open table leg assembly and place in the
upright position.
