6. Direct configuration

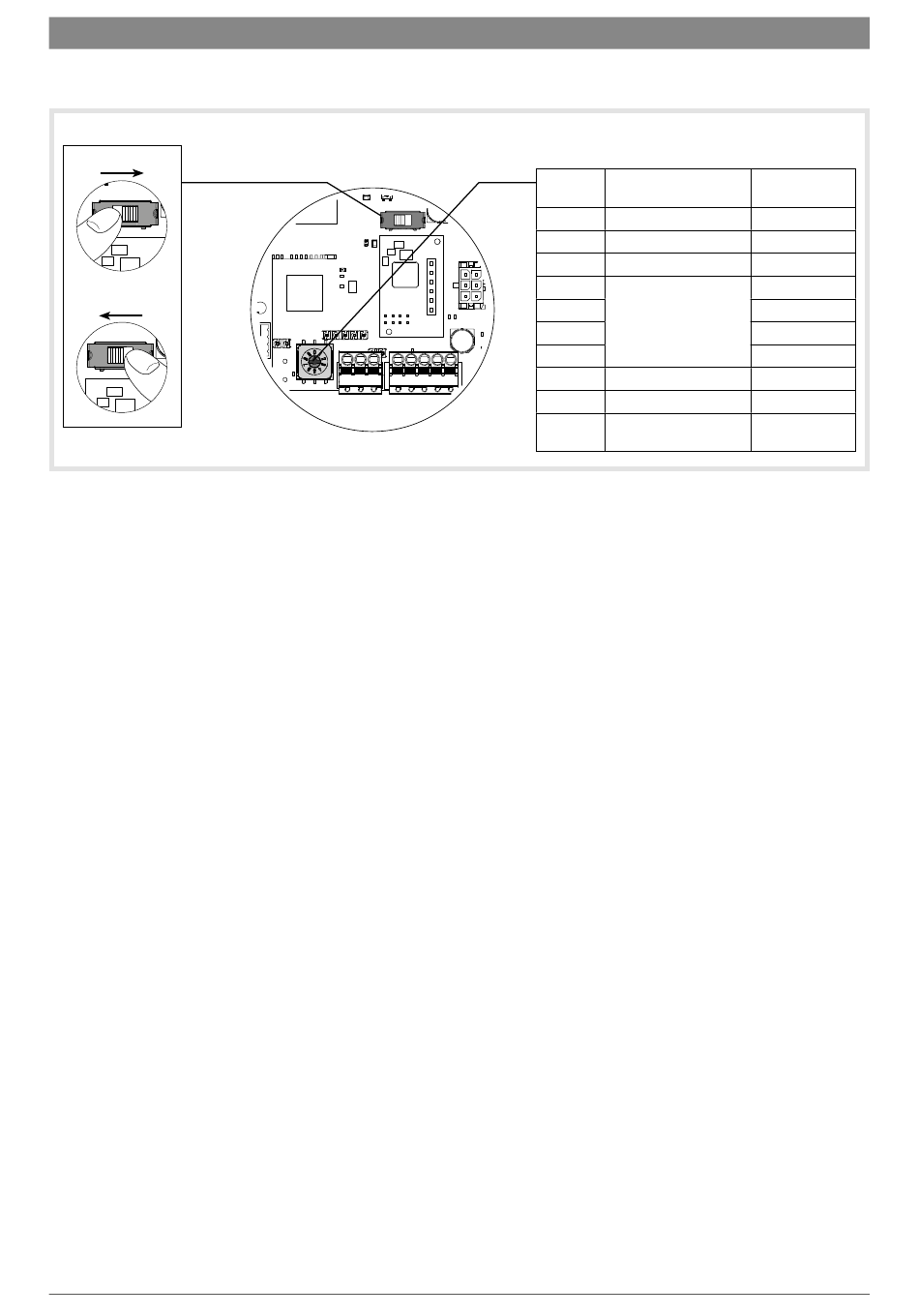

The charging station can be configured directly on the electronic board to adjust the phase number and maximum current.
Should there be conflicting information between a software configuration and the physical setting, the lowest value is applied.
The maximum operating current can be selected using the selector.
Single-phase
3 Phases
Return to factory setting procedure:
1. Switch off the charging station for 2 minutes.
2. Set the selector to position "9".
3. Close the cover again and switch on the charging station.
4. The charging station flashes yellow rapidly during start-up.
5. The charging station flashes red; return to factory setting is complete.
6. The charging station must have a steady red light (the selector is in position 9 Return to factory setting).
7. Switch off the charging station for 3 minutes.
8. Set the selector to a position between 0 and 6.
9. Close the cover and switch on the charging station again.
Selector Recommended circuit
breaker size
0 40 A
1 32 A
2 25 A
3
4
20 A
5
6
7
8
9
Operating
current
32 A
25 A
20 A
16 A
13 A
10 A
6 A
N/A
N/A
Return to
factory setting
