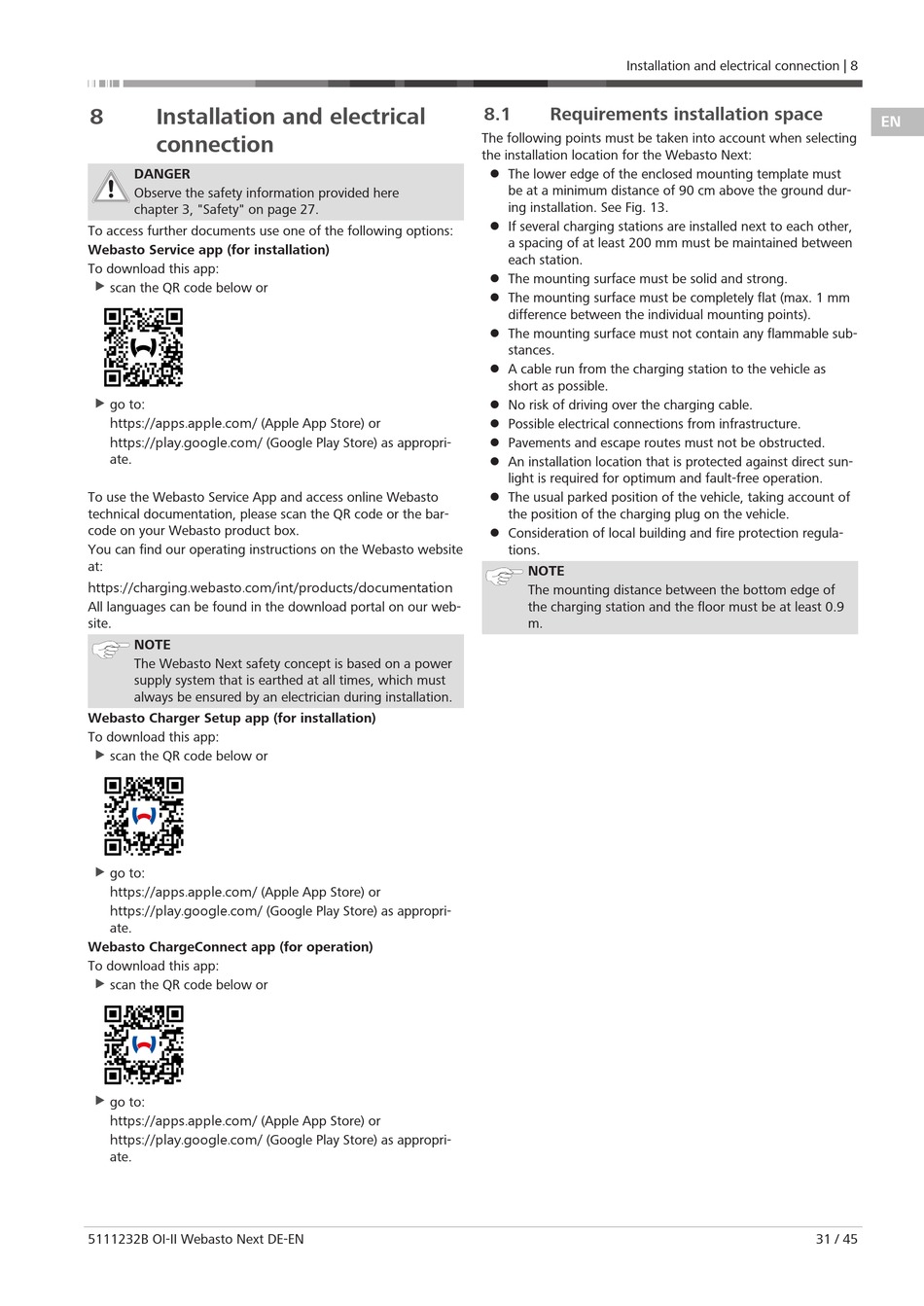

8 Installation and electrical
connection
DANGER
Observe the safety information provided here
chapter 3, "Safety" on page 27.
To access further documents use one of the following options:
Webasto Service app (for installation)
To download this app:
u
scan the QR code below or
u go to:
https://apps.apple.com/ (Apple App Store) or
https://play.google.com/ (Google Play Store) as appropri-
ate.
To use the Webasto Service App and access online Webasto
technical documentation, please scan the QR code or the bar-
code on your Webasto product box.
You can find our operating instructions on the Webasto website
at:
https://charging.webasto.com/int/products/documentation
All languages can be found in the download portal on our web-
site.
NOTE
The Webasto Next safety concept is based on a power
supply system that is earthed at all times, which must
always be ensured by an electrician during installation.
Webasto Charger Setup app (for installation)
To download this app:
u
scan the QR code below or
u go to:
https://apps.apple.com/ (Apple App Store) or
https://play.google.com/ (Google Play Store) as appropri-
ate.
Webasto ChargeConnect app (for operation)
To download this app:
u scan the QR code below or
u go to:
https://apps.apple.com/ (Apple App Store) or
https://play.google.com/ (Google Play Store) as appropri-
ate.
5111232B OI-II Webasto Next DE-EN

Installation and electrical connection | 8

8.1

Requirements installation space

The following points must be taken into account when selecting
the installation location for the Webasto Next:
l The lower edge of the enclosed mounting template must
be at a minimum distance of 90 cm above the ground dur-
ing installation. See Fig. 13.
l If several charging stations are installed next to each other,
a spacing of at least 200 mm must be maintained between
each station.
l The mounting surface must be solid and strong.
l The mounting surface must be completely flat (max. 1 mm
difference between the individual mounting points).
l The mounting surface must not contain any flammable sub-
stances.
l A cable run from the charging station to the vehicle as
short as possible.
l No risk of driving over the charging cable.
l Possible electrical connections from infrastructure.
l Pavements and escape routes must not be obstructed.
l An installation location that is protected against direct sun-
light is required for optimum and fault-free operation.
l The usual parked position of the vehicle, taking account of
the position of the charging plug on the vehicle.
l Consideration of local building and fire protection regula-
tions.
NOTE
The mounting distance between the bottom edge of
the charging station and the floor must be at least 0.9
m.
